JetStream Gigabit L2 Managed Switch
20
Conguration

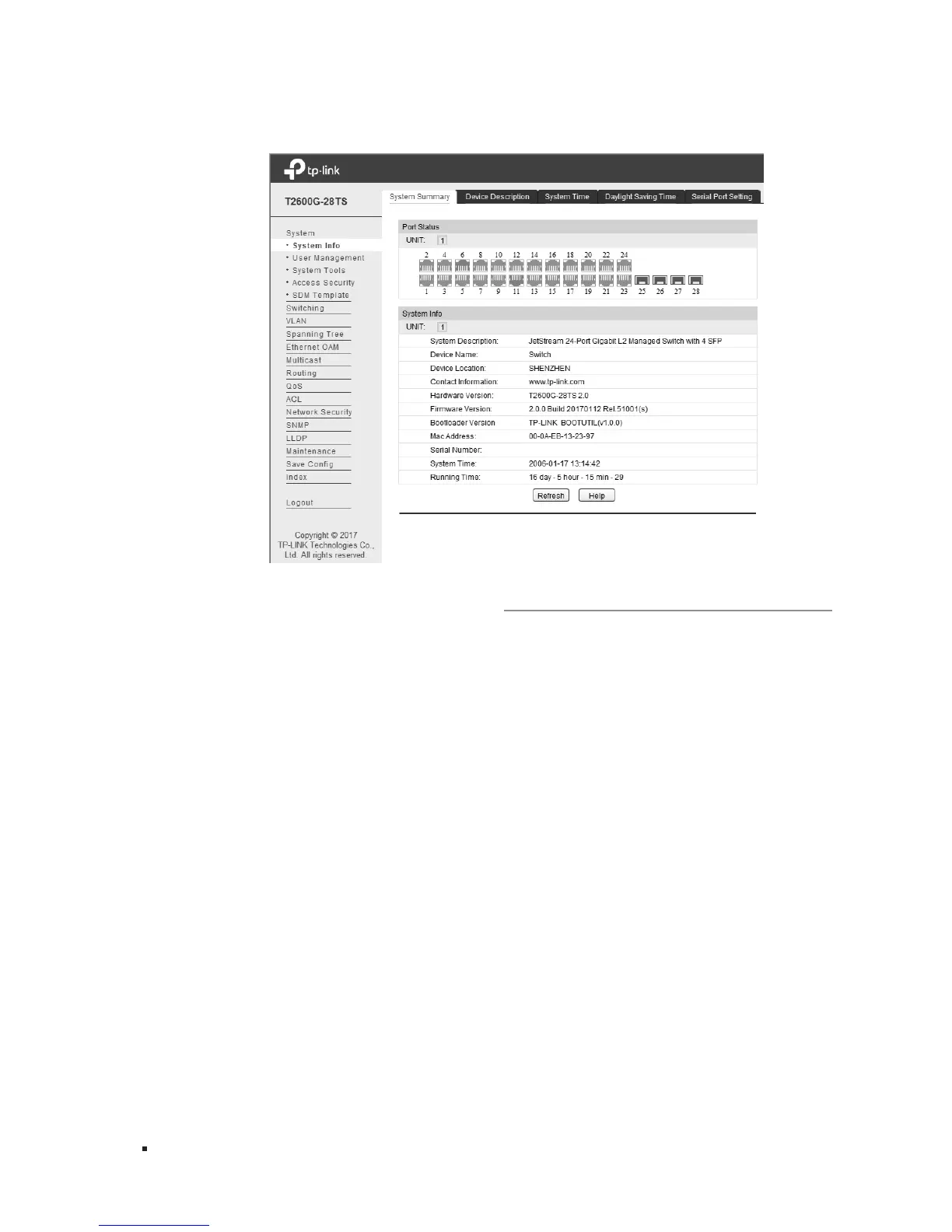

Figure 5-3 Main Page of the Switch
5.2 Configure the Switch Using CLI
You can log on to the switch and access the CLI by the following two methods:
■
Log on to the switch by the Console (USB) port or Console (RJ-45) port on the switch.
■
Log on to the switch remotely by a Telnet or SSH connection through an Ethernet port.
■
Logon by a Console Port
The switch has two console ports: an RJ-45 console port and a Micro-USB console port. Console
output is active on devices connected to both console ports, but console input is only active on one
console port at a time. The Micro-USB connector takes precedence over the RJ-45 connector.
Install the TP-Link USB Console Driver if you are using the USB serial port for the first time on a
Windows-based PC
.
The driver can be found on the attached CD and Download page of our official
website. Refer to the User Guide to learn more about the installation.
To log on to the switch by the console port on the switch, please take the following steps:
1. Connect the PC or terminal to the console port on the switch by the provided cable. Refer to 4.3
Console Port to learn how to connect.
2. If you attach a PC, start the terminal emulation program (such as the Hyperterminal)on the PC.
3. Specify the connection COM port in the terminal emulation program. If the Micro-USB console
port is used, you can view which COM port number is assigned to the USB serial port in the
following path: Control Panel -> Hardware and Sournd -> Device Manager -> Ports -> USB Serial
Port.
