JetStream Gigabit L2 Managed Switch
03Introduction

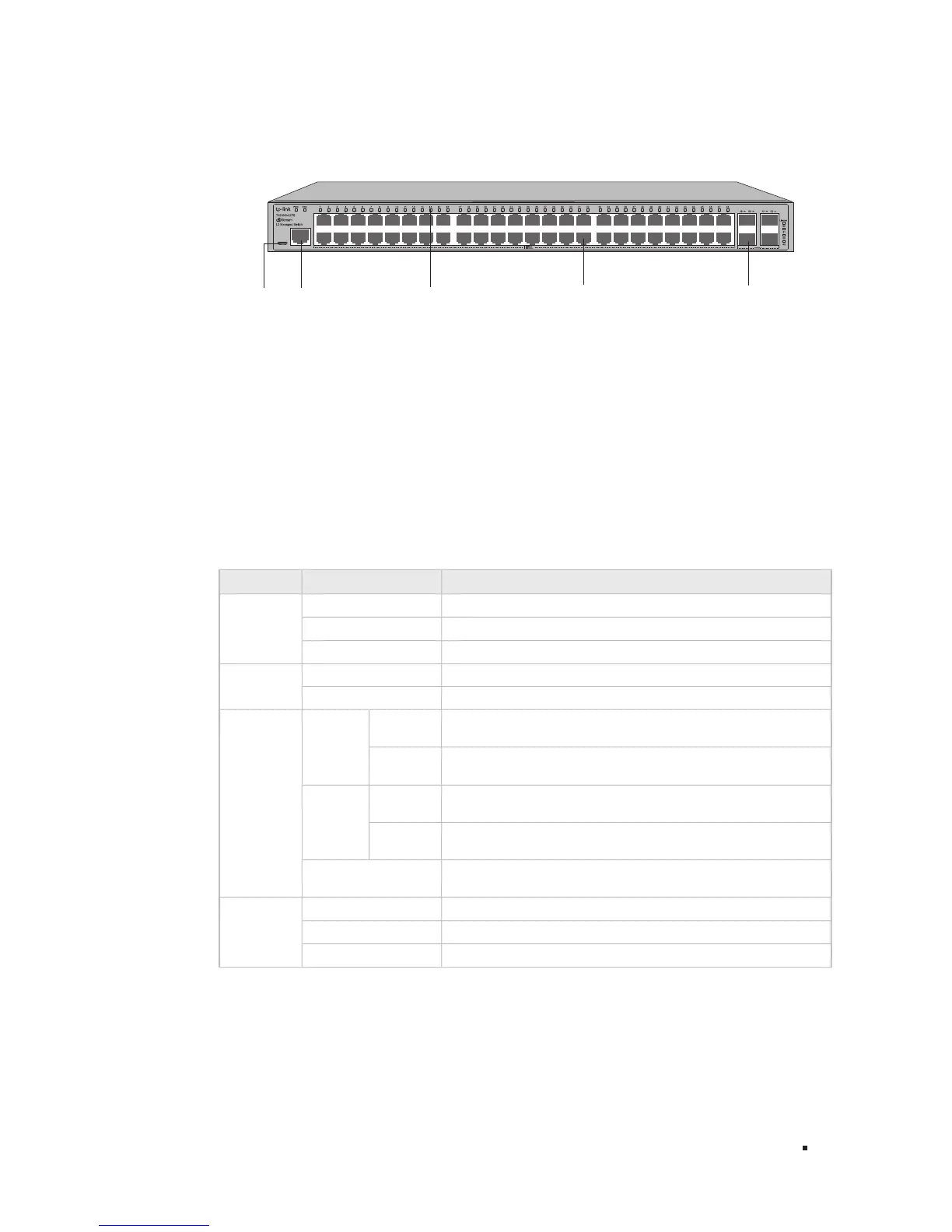

The front panel of The T2600G-52TS is shown as the following figure.
Figure 1-3 Front Panel of T2600G-52TS
ConsoleConsole(USB)
10/100/1000Mbps
RJ45 Port
LEDs
Console
(USB)
Console
(RJ45)
SFP Port
Console (USB) Port
Designed to connect with the USB port of a computer for monitoring and configuring the switch.
The switch has an RJ-45 console port and a micro-USB console port available. Console input is
active on only one console port at a time. By default, the micro-USB connector takes precedence
over the RJ-45 connector.
Console (RJ-45) Port
Designed to connect with the serial port of a computer or terminal for monitoring and configuring
the switch.
LEDs
LED Status Indication
PWR
On The switch is powered on.
Off The switch is powered off or power supply is abnormal.
Flashing Power supply is abnormal.
SYS
Flashing The switch works properly.
On/Off The switch works improperly.
10/100/
1000Mbps
(Port 1-48)
Green
On
A 1000Mbps device is linked to the corresponding port, but no
activity.
Flashing
A 1000Mbps device is linked to the corresponding port and
data is being transmitted or received.
Yellow
On
A 10/100Mbps device is linked to the corresponding port, but
no activity.
Flashing
A 10/100Mbps device is linked to the corresponding port and
data is being transmitted or received.
Off
No device is linked to the corresponding SFP port but no
activity.
Link/Act
(Port 49-52)
On
There is a device linked to the corresponding port.
Flashing
The corresponding SFP port is transmitting or receiving data.
Off There is no device linked to the corresponding SFP port.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Each
10/100/1000Mbps RJ45 port has a corresponding 1000Mbps LED.
