TP-Link Pharos CPE220 User Manual

01
Overview
TP-Link's Pharos series outdoor CPEs are dedicated to outdoor wireless
network solutions. This guide is applicable to products including CPE210,
CPE220, and CPE510.

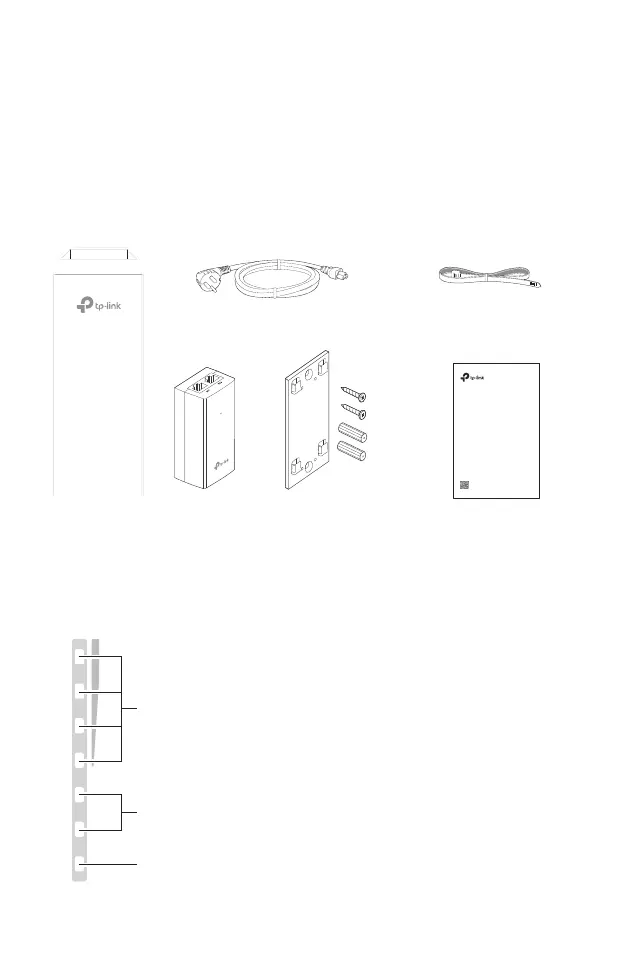

• Package Contents
Installation Guide
Outdoor CPE
https://www.tp-link.com/en/support/setup-video/
Scan the QR code or visit
Need setup videos?
Pharos CPE
Passive PoE
Adapter
Pole Mounting
Straps
Mounting Bracket
Plastic Wall Anchors (Qty.2)
Self-tapping Screws (Qty.2)
Installation Guide
Power Cord
• LED Explanation
The following picture takes CPE220 as an example.
POWERLAN0LAN1
AP/AP Router Mode:
All four LEDs remain solid.
Client/Bridge/Repeater/AP Client Router Mode:
That the more LEDs lit will indicate better wireless signal strength.
Flashing: A device is connected to this port, and is active.
On: The CPE is powered on.
On: A device is connected to this port, but there is no activity.

TP-Link Pharos CPE220 Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4GHz
Antenna Gain	12dBi
Memory	64MB DDR2 RAM, 8MB Flash
Button	Reset Button
Voltage range	16-27VDC
Wireless Speeds	300Mbps
Wireless Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmit Power	Up to 27 dBm
Ethernet Ports	1 x 10/100Mbps Ethernet Port
Power Supply	24V Passive PoE (Pairs 4, 5+;7, 8-)
Operating Temperature	-30°C to 70°C
Processor	Qualcomm Atheros
Interface	1 Grounding Terminal
Power Consumption	10.5W max
Operating Modes	AP / Client / AP Router / AP Client Router (WISP)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Weight	0.6 kg (1.32 lb)
