TP-Link Pharos CPE220 User Manual

04
Hardware Connection
1. Site Consideration
• Mounting Height
Ensure a clear line of sight between the wireless devices for an optimum
performance. An elevated location is recommended as obstacles like
trees, buildings and large steel structures will weaken the wireless signal.
See 'Q2' in 'FAQ' for details about how to calculate the minimum mounting
height of the devices.

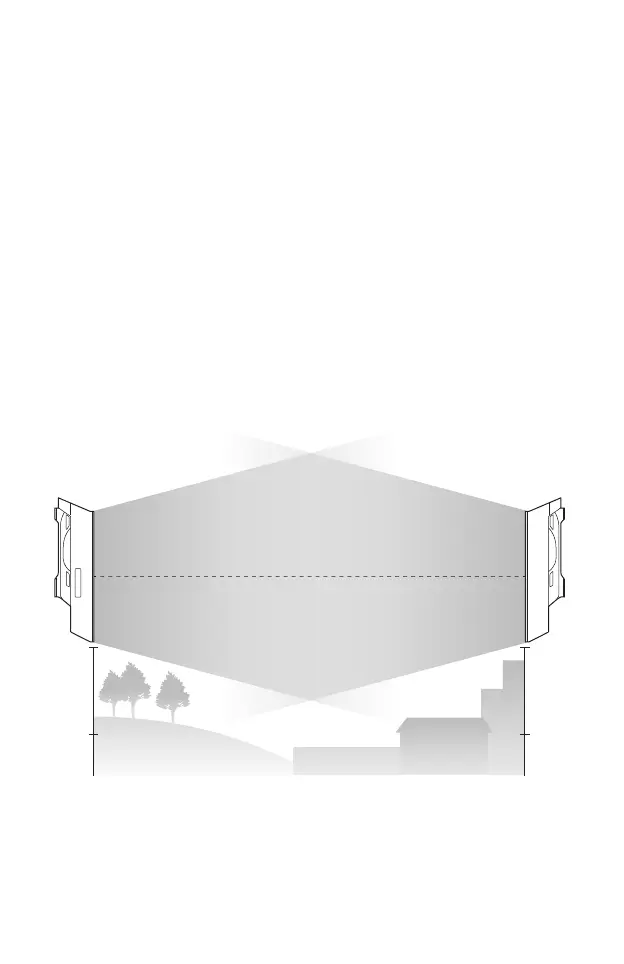

Line of Sight
Side View

TP-Link Pharos CPE220 Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4GHz
Antenna Gain	12dBi
Memory	64MB DDR2 RAM, 8MB Flash
Button	Reset Button
Voltage range	16-27VDC
Wireless Speeds	300Mbps
Wireless Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmit Power	Up to 27 dBm
Ethernet Ports	1 x 10/100Mbps Ethernet Port
Power Supply	24V Passive PoE (Pairs 4, 5+;7, 8-)
Operating Temperature	-30°C to 70°C
Processor	Qualcomm Atheros
Interface	1 Grounding Terminal
Power Consumption	10.5W max
Operating Modes	AP / Client / AP Router / AP Client Router (WISP)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Weight	0.6 kg (1.32 lb)
