TP-Link Pharos CPE220 User Manual

06
2. Connection and Installation
Connect and mount the CPE and power adapter as shown below. The
following introduction takes CPE220 as an example.

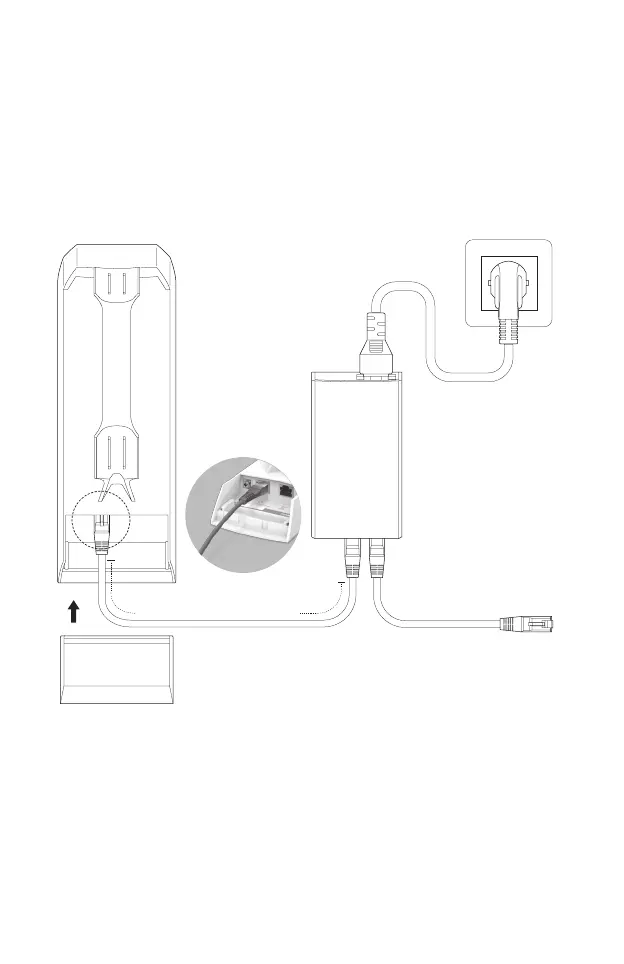

• Connecting CPE and Power Adapter
Connect the CPE and power adapter as shown in the gure below.
Ethernet cable length up to 60m
You should prepare an adequate
Ethernet cable to connect the CPE
and the passive PoE adapter.
Shielded CAT5e (or above) cable
with ground wire is recommended
(refer to the next section).
Connect to a computer,
router or switch.
(Depending on your
intended usage and/or
network topology.)
Slide to replace the cover
of the CPE when all
connections are nished.
LAN0
PoE
LAN

TP-Link Pharos CPE220 Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4GHz
Antenna Gain	12dBi
Memory	64MB DDR2 RAM, 8MB Flash
Button	Reset Button
Voltage range	16-27VDC
Wireless Speeds	300Mbps
Wireless Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmit Power	Up to 27 dBm
Ethernet Ports	1 x 10/100Mbps Ethernet Port
Power Supply	24V Passive PoE (Pairs 4, 5+;7, 8-)
Operating Temperature	-30°C to 70°C
Processor	Qualcomm Atheros
Interface	1 Grounding Terminal
Power Consumption	10.5W max
Operating Modes	AP / Client / AP Router / AP Client Router (WISP)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Weight	0.6 kg (1.32 lb)
