TP-Link PHAROS SERIES Installation Guide

19

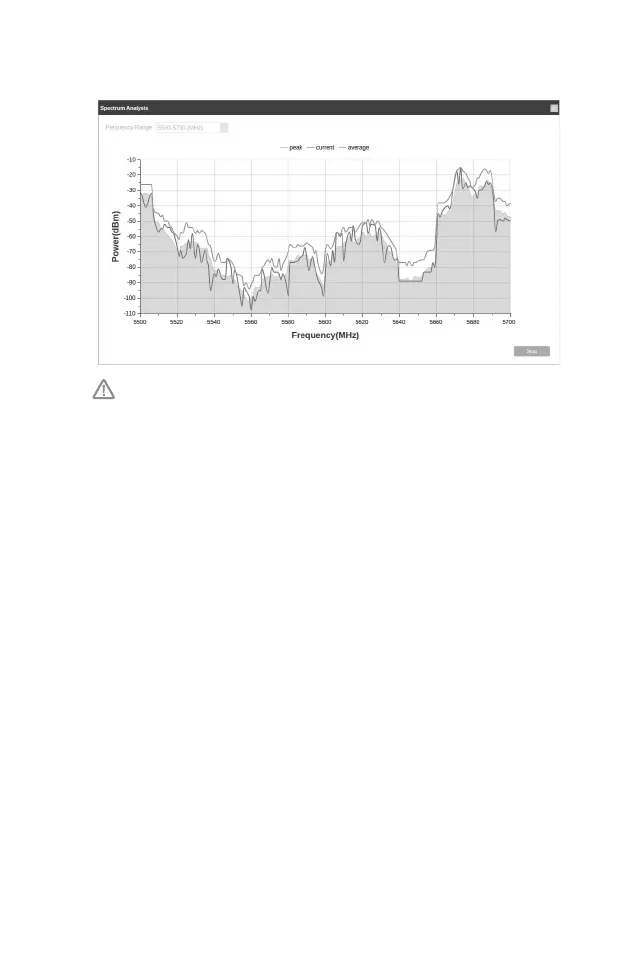

indicates less radio noise. Here, we use the figure below as an
example.
The select box of Frequency Range at the top-left corner is only
available for CPE510. Select the desired range and then click Start.
When choosing channel/frequency, you should avoid the spectrum
with large radio noise. In this example, the recommended channel/
frequency is 112/5560 MHz.
Note: To ask questions, nd answers, and communicate with TP-Link users
or engineers, please visit https://community.tp-link.com to join TP-Link
Community.

TP-Link PHAROS SERIES Specifications

General

Model	PHAROS SERIES
Category	Wireless Access Point
Frequency	5 GHz
Wireless Standards	IEEE 802.11a/n
Operating Temperature	70°C
Management	Web-based
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK, WEP
Interface	10/100M Ethernet
Operating Modes	Access Point, Client, Repeater
Mounting	Pole Mounting
