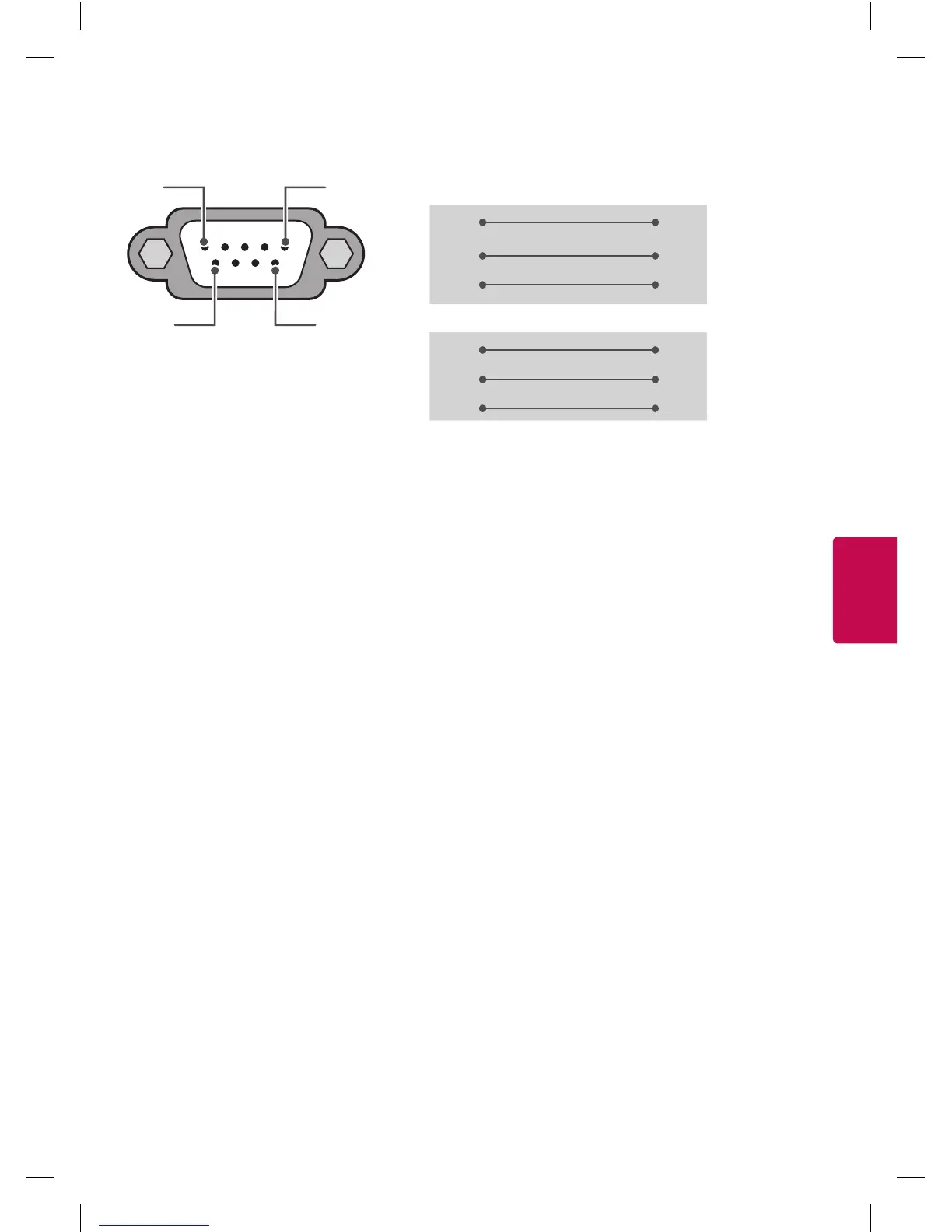

Customer Computer RS-232C Configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD
2 2
TXD
TXD
3 1
RXD
GND
5 3
GND
OR
RXD
3 2
TXD
TXD
2 1
RXD
GND
5 3
GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see Real Data Mapping.
1. Press SETTINGS to access the main menus.
2. Press the navigation buttons to scroll to (General → About this TV or OPTION) and press OK.
3. Press the navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending upon model)
