External Control Device Setup
• Image shown may differ from your TV.

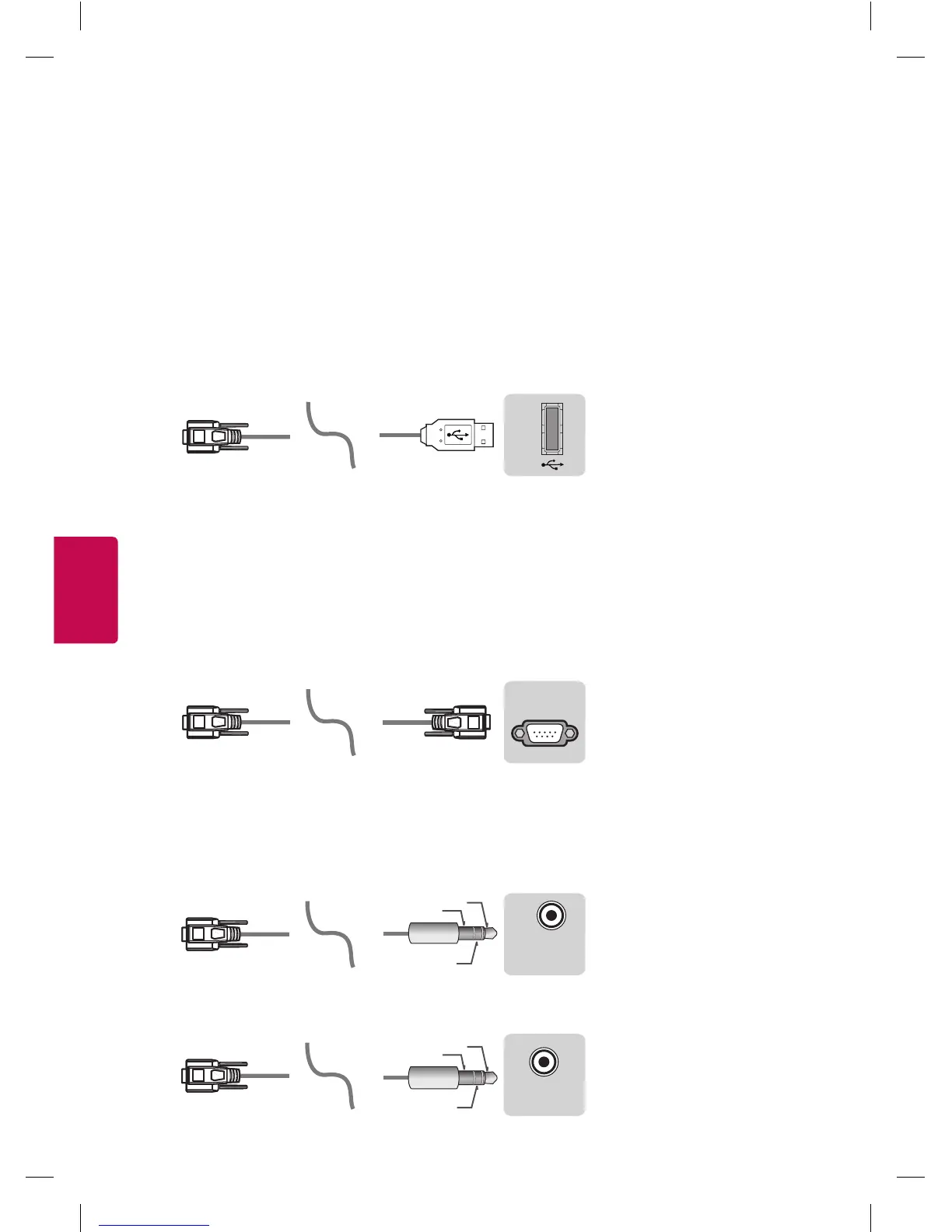

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or an
A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
• Please be advised that not all models support this type of connectivity.
• Cable is not provided.
USB to Serial Converter with USB Cable
USB Type
USB IN
(TV)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter which is
not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
RS-232C With RS232C Cable
DE9 (D-Sub 9-pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9-pin female-to-female type) to RS-232C cable required for
the connection between the PC and the TV, which is specified in the manual.
• The connection interface may differ from your TV.
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and the
TV, which is specified in the manual.
• For other models, connect to the USB port.
• The connection interface may differ from your TV.
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
To Next Page
