TD-W8151N 150Mbps Wireless N ADSL2+ Modem Router User Guide
19

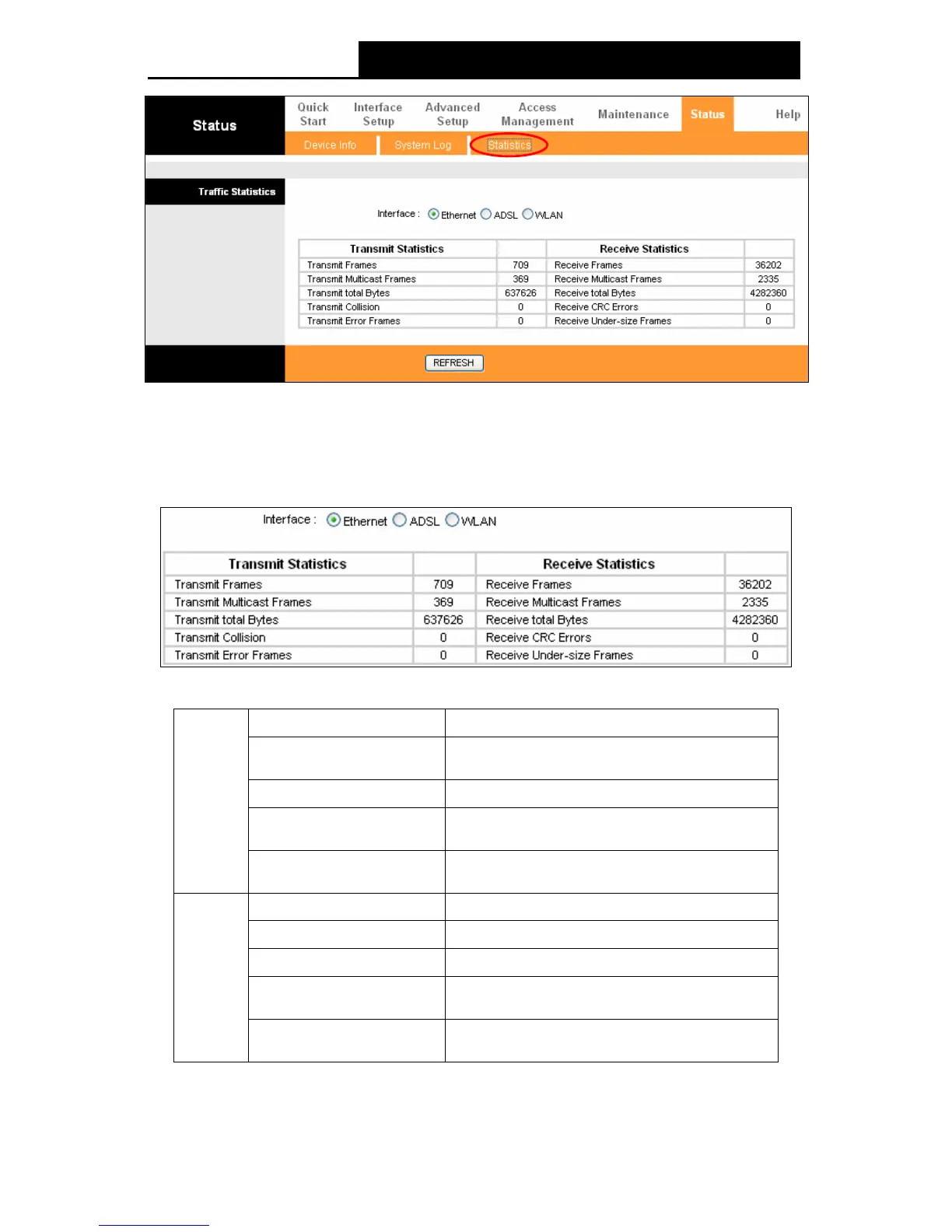

Figure 4-4
Interface: You can select Ethernet, ADSL and WLAN to view the corresponding network
traffic over different ports.
Select Ethernet, and you will see the statistics table as below.
Statistics Table:
Transmit Frames
The frames transmitted over the Ethernet port.
Transmit Multicast Frames
The multicast frames transmitted over the Ethernet
port.
Transmit total Bytes
The total bytes transmitted over the Ethernet port.
Transmit Collision
The collision occurred over the Ethernet port when
data is being transmitted.
Transmit
Statistics
Transmit Error Frames
The error frames over the Ethernet port when data is
being transmitted.
Receive Frames
The frames received over the Ethernet port.
Receive Multicast Frames
The multicast frames received over the Ethernet port.
Receive total Bytes
The total bytes received over the Ethernet port.
Receive CRC Errors
The CRC errors occurred over the Ethernet port when
data is being received.
Receive
Statistics
Receive Under-size Frames
The Under-size frames received over the Ethernet
port.
Select ADSL, and you will see the statistics table as below.
