TD-W8951ND 150Mbps Wireless N ADSL2+ Modem Router User Guide
quickly. This section will guide you how to use WPS function.
• WPS state: Display the current WPS state.
• WPS mode: If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can
establish a wireless connection between wireless adapter and Router using either Push
Button Configuration (PBC) method or PIN method, please select the one you want.
• WPS progress: Show the current WPS progress.
• Reset to OOB: Use this button to reset the WPS state to “unconfigured”, so that a new
key will be created when using WPS function next time.
1) PBC
If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration
(PBC) method, you can add it to the network by PBC with the following two methods. Click
PBC, you will see the screen as shown below.

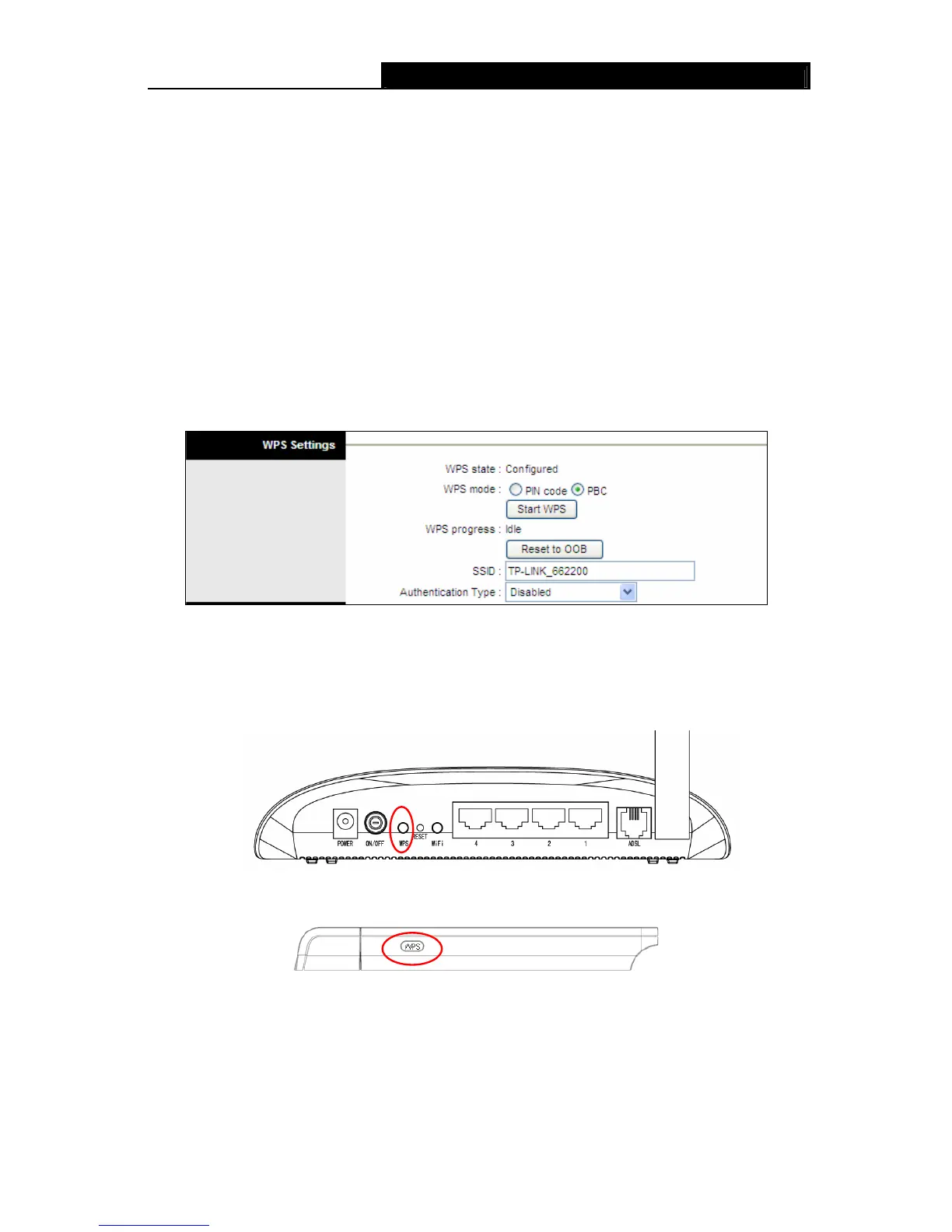

Figure 4-21
Method One:
Step 1: Press the WPS button on the back panel of the Router or click Start WPS button in
Figure 4-21.
Step 2: Press and hold the WPS button of the adapter directly for 2 or 3 seconds.
Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS
configuration.
35
