TD-W8951ND 150Mbps Wireless N ADSL2+ Modem Router User Guide

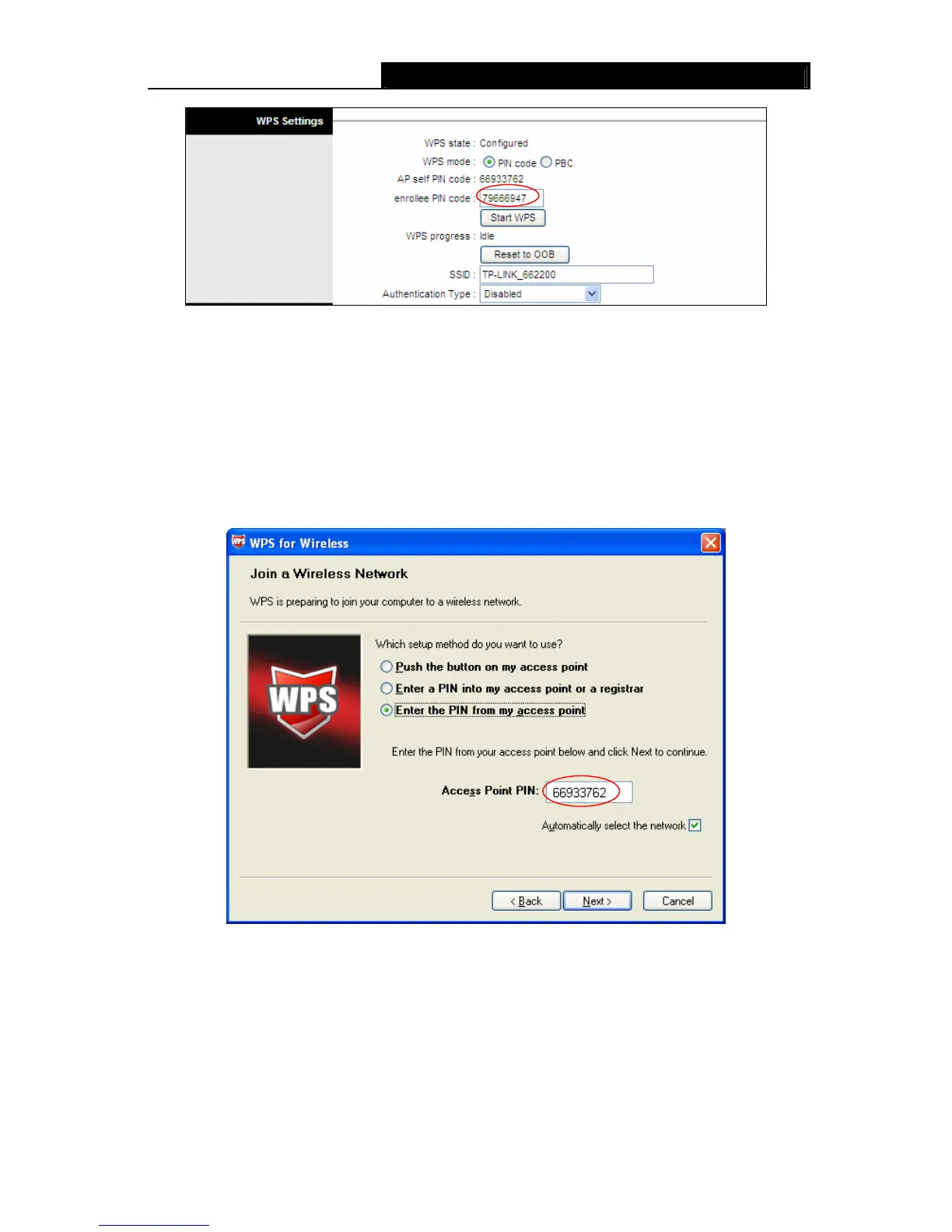

Figure 4-23
Method Two: Enter the PIN from my Router
Step 1: Get the Current PIN code of the Router from AP self PIN code in Figure 4-23 (each
Router has its unique PIN code. Here takes the PIN code 66933762 of this Router
for example).
Step 2: For the configuration of the wireless adapter, please choose “Enter a PIN from my
access point” in the configuration utility of the WPS as below, and enter the PIN
code of the Router into the field after “Access Point PIN”. Then click Next.
The WPS Configuration Screen of Wireless Adapter
)
Note:
The default PIN code of the Router can be found in its label or the WPS configuration screen
as Figure 4-23.
• SSID: Wireless network name shared among all points in a wireless network. The SSID
must be identical for all devices in the wireless network. It is case-sensitive and must not
exceed 32 characters (use any of the characters on the keyboard). Make sure this setting
39
