TP-Link TD-W8951ND - Page 58

TD-W8951ND 150Mbps Wireless N ADSL2+ Modem Router User Guide

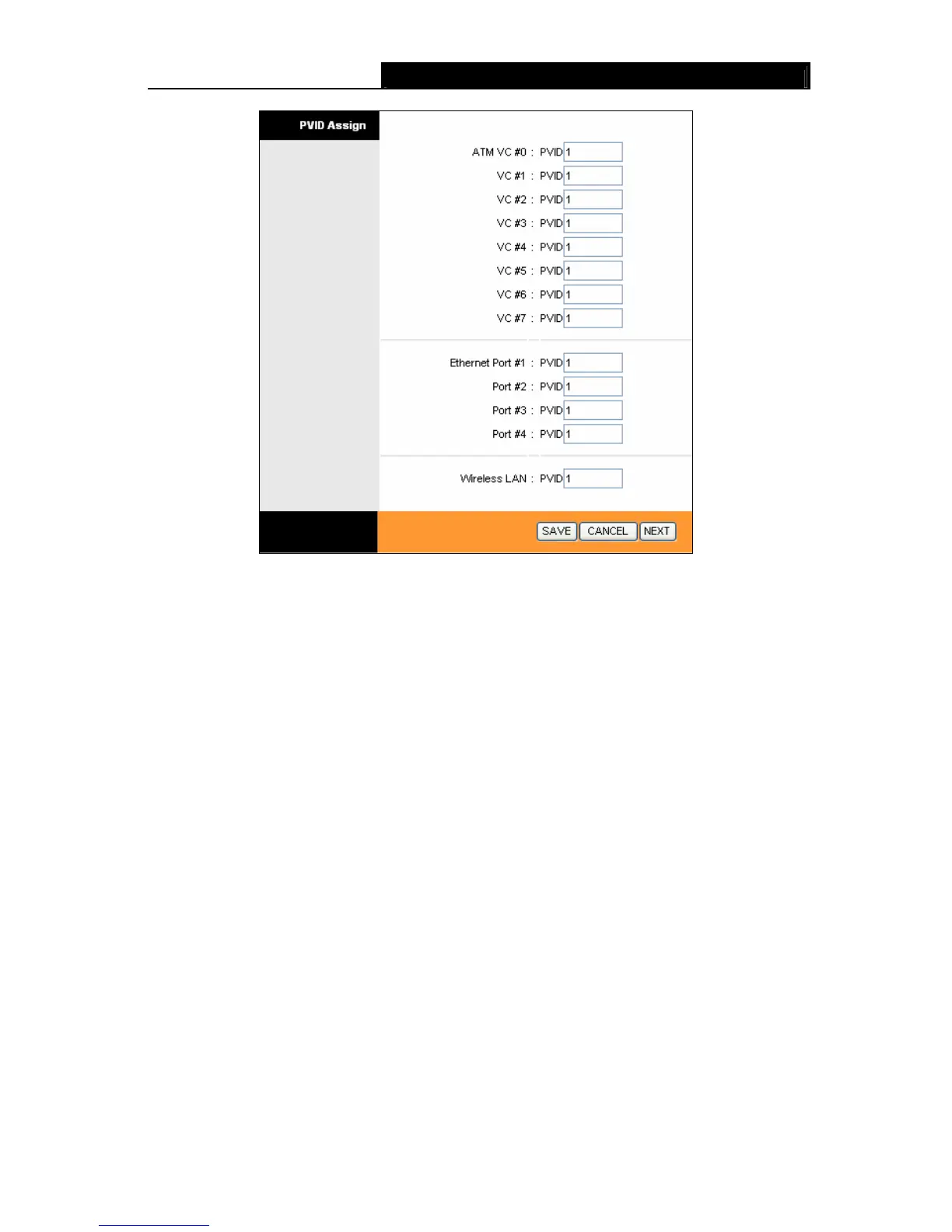

Figure 4-34
¾ PVID: Each physical port has a default VID called PVID (Port VID). PVID is assigned to
untagged frames or priority tagged frames (frames with null (0) VID) received on this port.
2) Define VLAN Group
Click Define VLAN Group in Figure 4-33, you can define VLAN groups in the next screen (shown
in Figure 4-35).
50
