TP-Link TD-W8961N User Manual

User Guide
6
2.2 Connecting the Modem Router
Before installing the device, please make sure your broadband service provided by your ISP is
available. If there is any problem, please contact your ISP. Before cable connection, cut off the
power supply and keep your hands dry. You can follow the steps below to install it.

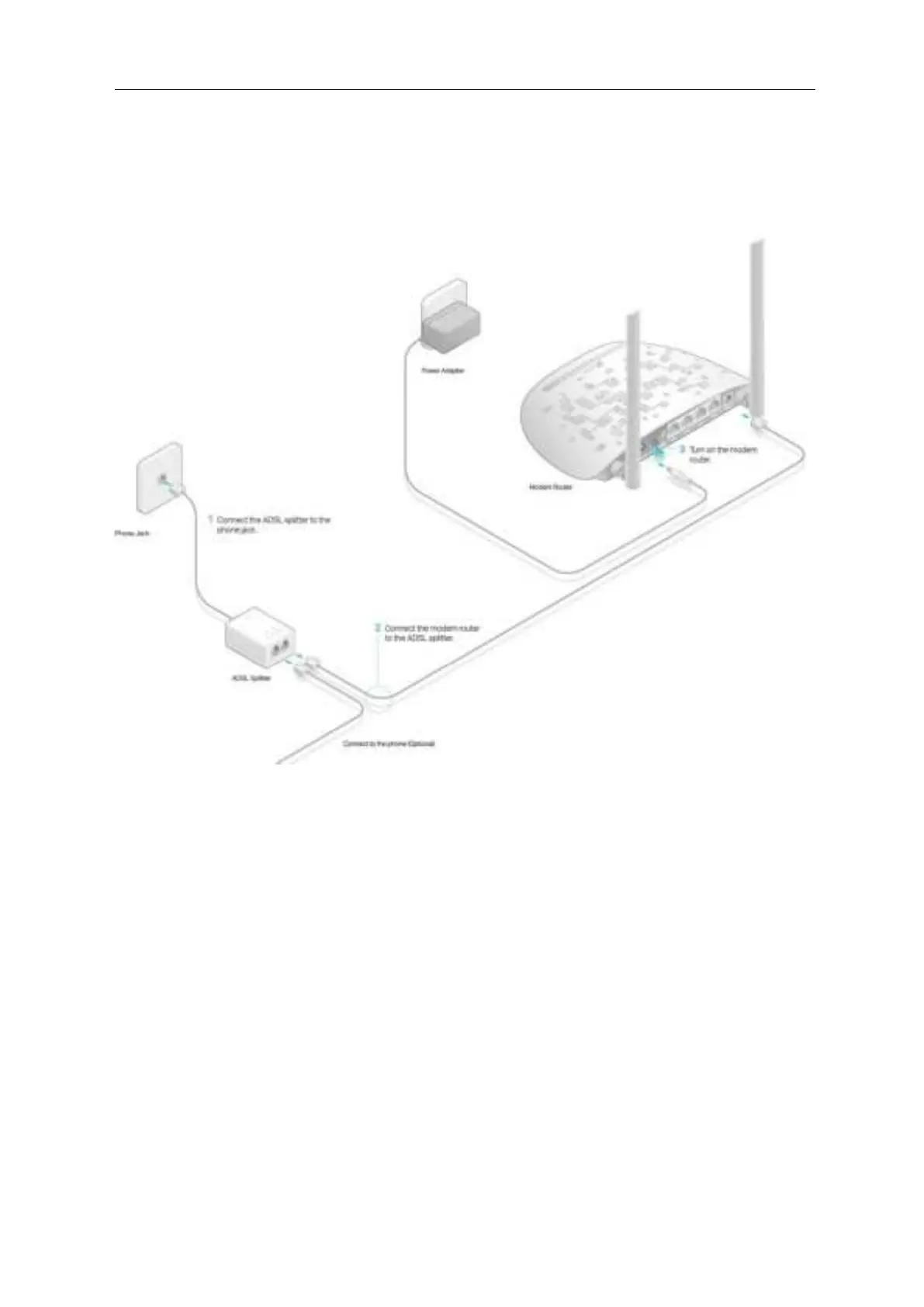

Step 1: Connect the ADSL Line.
Method One: Directly connect the modem router to the phone jack with the ADSL line.
Method Two: Connect the modem router to the phone jack via a separate splitter.
External splitter can divide the data and voice, and then you can access the Internet
and make calls at the same time. The external splitter has three ports:
• LINE: Connect to the wall jack
• PHONE: Connect to the phone sets
• MODEM: Connect to the ADSL port of the modem router
Step 2: Connect your computer to the modem router.
Method One: Wired
Connect the computer to a LAN port on your modem router with an Ethernet cable.

TP-Link TD-W8961N Specifications

General

DSL WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.4, ITU-T G.992.5
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Supported network protocols	PPPoE, PPPoA, IPoA
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	130 mm
Width	195 mm
Height	35 mm
