AppleTalk Status
1. Click Status, it then appears the sub-menu.

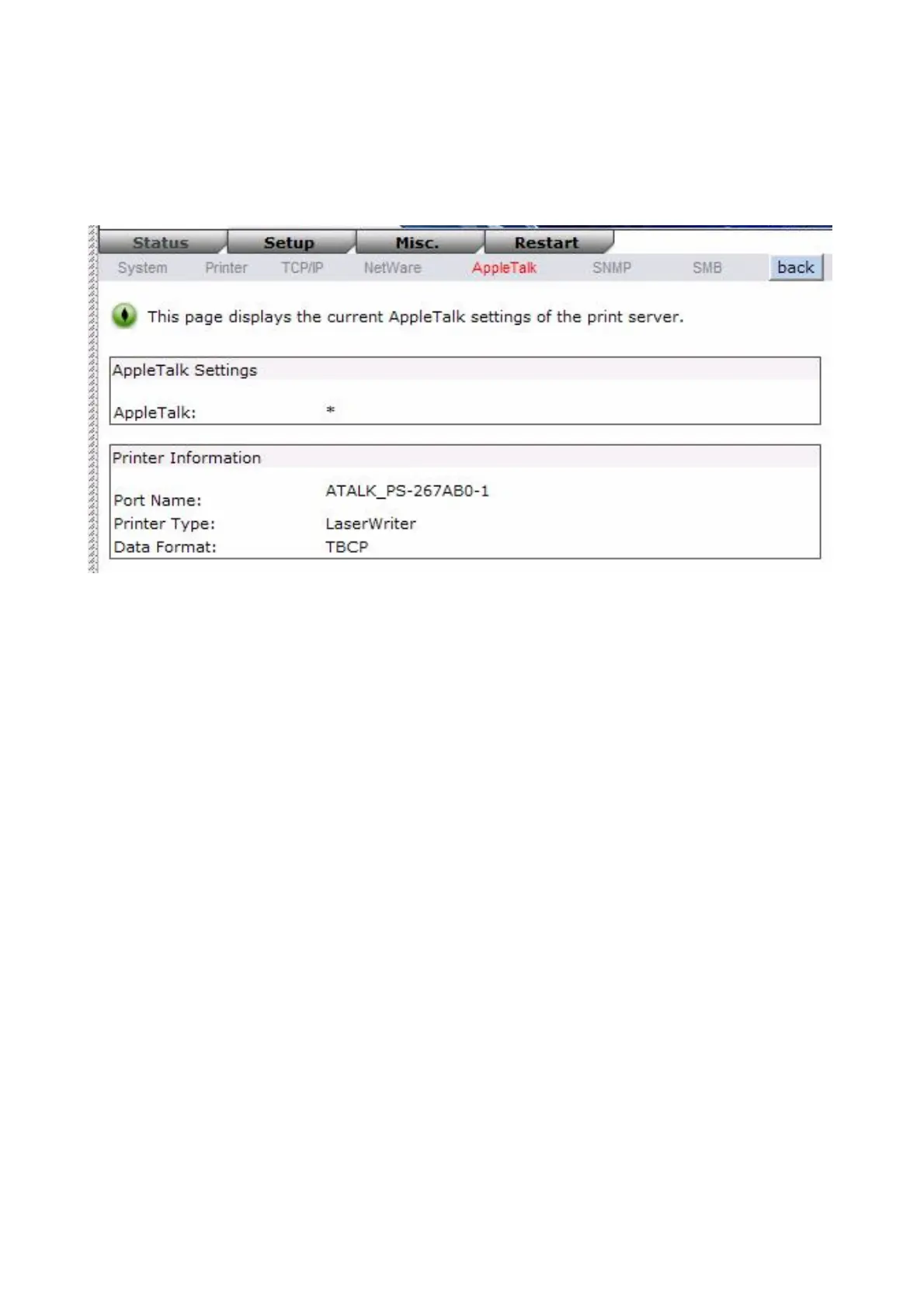

2. Click AppleTalk, it then as shown in the following picture.
AppleTalk Settings: If no any zone exists, the print server itself displays the zone name as
an asterisk (*) in the current AppleTalk Status of the print server in the web
browser.
Port Name: <ATALK_PS>-xxxxxx-1, where xxxxxx represents the last six digits of the print
server’s Node ID.
Printer Type: This option allows you to view printer type from the print server. You have to
use a PostScript printer that you can select the LaserWriter 8 icon from your
Mac computer.
Data Format: This option allows you to view data format from the print server. If you are
using a PostScript printer you can select ASCII, TBCP or BCP format from
web configuration.
SNMP Status
1. Click Status, it then appears the sub-menu.
2. Click SNMP, it then as shown in the following picture.
33
