TP-Link TL-R470T User Manual

-103-
Choose the menu Maintenance→Diagnostics→Diagnostics to load the following page.

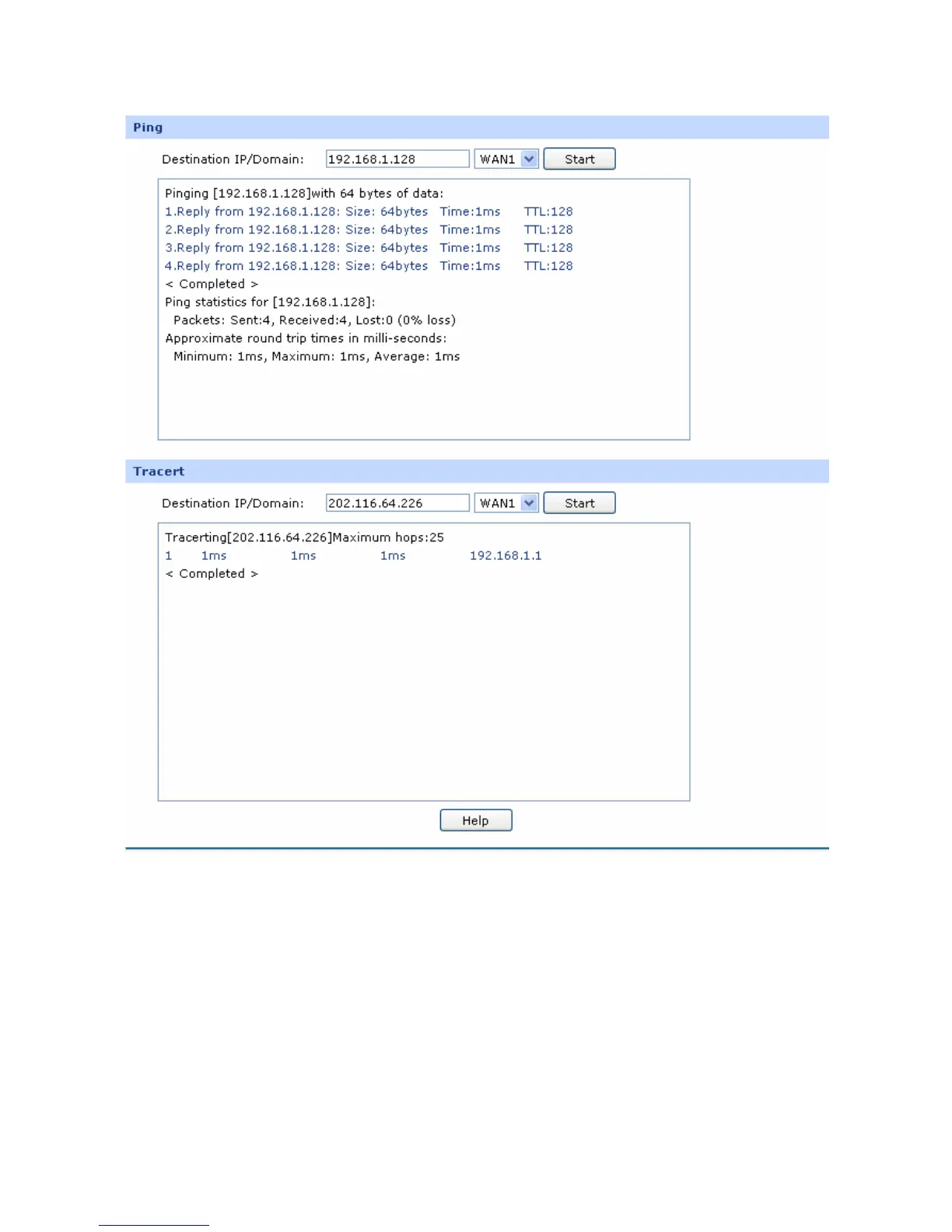

Figure 4-65 Diagnostics
The following items are displayed on this screen:
¾ Ping
Destination IP/Domain: Enter destination IP address or Domain name here. Then select a
port for testing, if you select “Auto”, the Router will select the
interface of destination automatically. After clicking <Start> button,
the Router will send Ping packets to test the network connectivity
and reachability of the host and the results will be displayed in the
box below.
¾ Tracert

TP-Link TL-R470T Specifications

General

Protocols	TCP/IP, PPPoE, DHCP, ICMP, NAT
DHCP	DHCP Server, DHCP Client
Firewall Security	IP and MAC Address Binding
Ports	5 x RJ45 ports
VPN Support	PPTP VPN, L2TP VPN, IPSec VPN
Management	Web-based GUI
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
