-52-

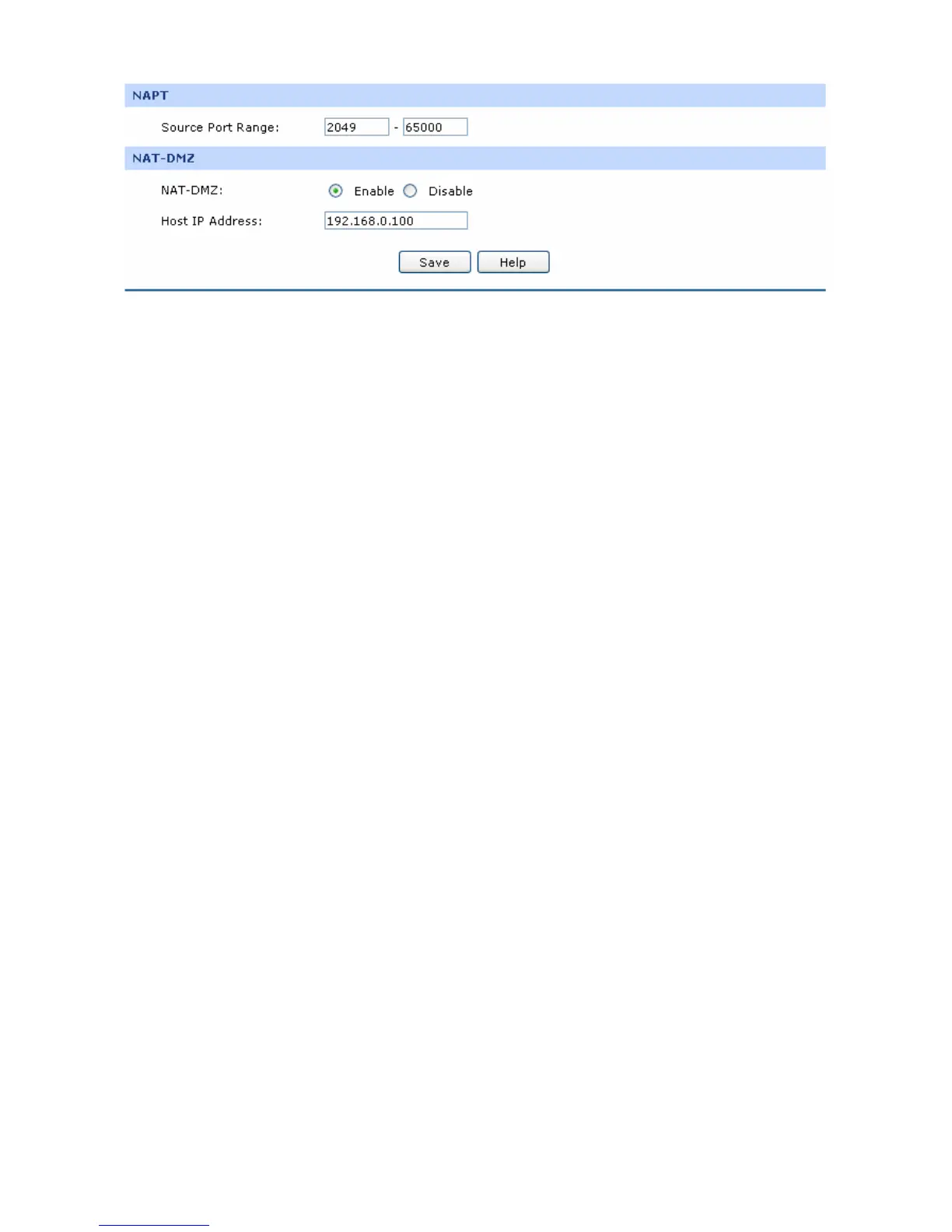

Figure 4-23 NAT Setup
The following items are displayed on this screen:
¾ NAPT
Source Port Range:
Enter the source port range between 2049 and 65000, the span of which
must be not less than 100.
¾ NAT-DMZ
NAT-DMZ:
Enable or disable NAT-DMZ. NAT DMZ is a special service of NAT
application, which can be considered as a default forwarding rule. When
NAT DMZ (Pseudo DMZ) is enabled, all the data initiated by external
network falling short of the current connections or forwarding rules will be
forwarded to the preset NAT DMZ host.
Host IP Address:
Enter the IP address of the host specified as NAT DMZ server.
4.5.1.2 Virtual Server
Virtual server can be used for setting up public services in your private network, such as DNS, Email
and FTP. Virtual server can define a service port. All the service requests to this port will be transmitted
to the LAN server appointed by the Router via IP address.
Choose the menu AdvancedNATVirtual Server to load the following page.
