TP-Link TL-R470T User Manual

-102-
Interface: Displays the interface.
IP Fragment Rx: Displays the amount of IP Fragments received by WAN port.
Abnormal IP Packets Rx: Displays the rate for transmitting data frames.
4.8.3.2 IP Traffic Statistics
IP Traffic Statistics screen displays the detailed traffic information of each PC on LAN.
Choose the menu Maintenance→Statistics→IP Traffic Statistics to load the following page.

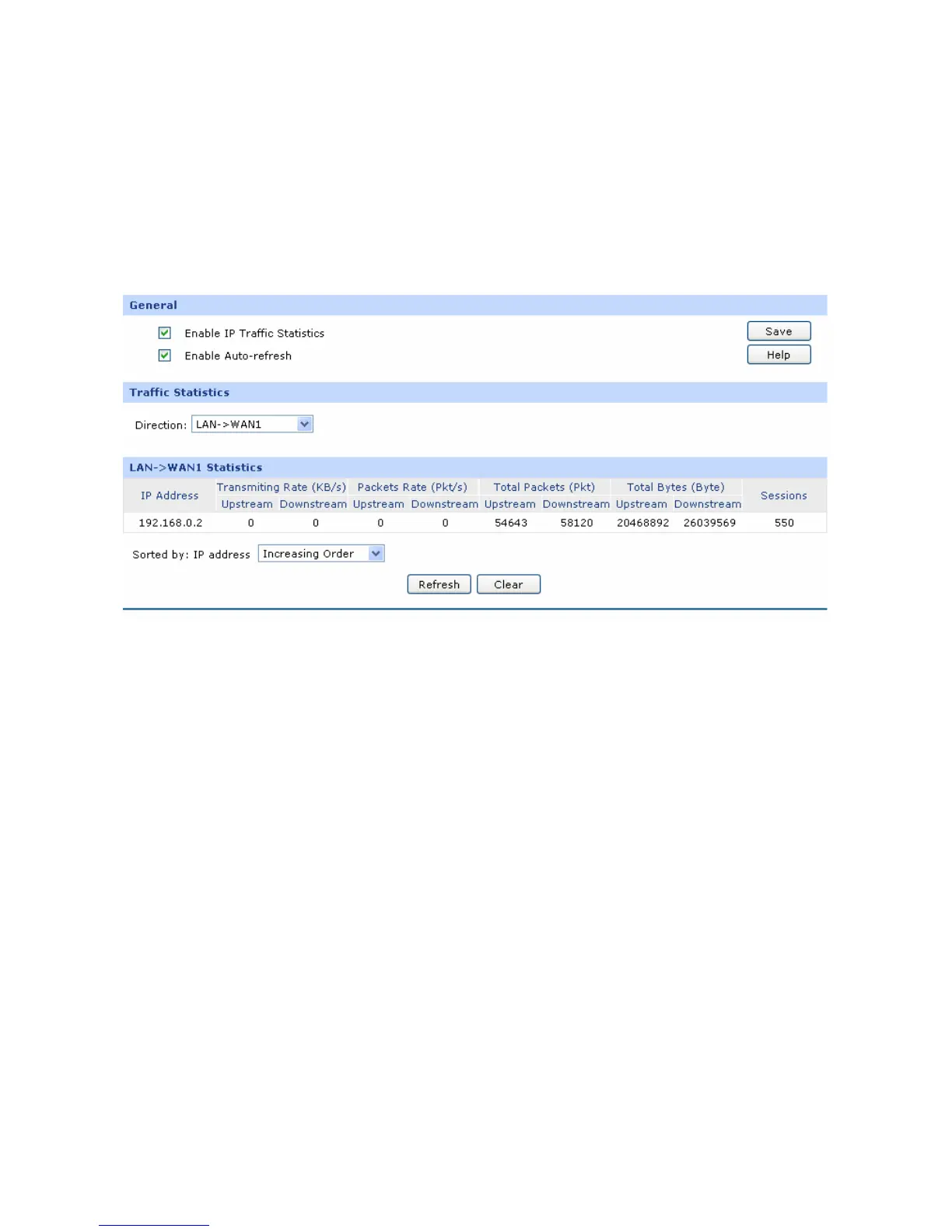

Figure 4-64 IP Traffic Statistics
The following items are displayed on this screen:
¾ General
Enable IP Traffic
Statistics:
Allows you to enable or disable IP Traffic Statistics.
Enable Auto-refresh: Allows you to enable/disable refreshing the IP Traffic Statistics
automatically. The default refresh interval is 5 seconds.
¾ Traffic Statistics
Direction: Select the direction in the drop-down list to get the Flow Statistics o
f
the specified direction.
¾ IP Traffic Statistics
This table displays the detailed traffic information of corresponding PCs.
Sorted by: Select the rule for displaying the traffic information.
4.8.4 Diagnostics
4.8.4.1 Diagnostics
This Router provides Ping test and Tracert test functions for network diagnose.

TP-Link TL-R470T Specifications

General

Protocols	TCP/IP, PPPoE, DHCP, ICMP, NAT
DHCP	DHCP Server, DHCP Client
Firewall Security	IP and MAC Address Binding
Ports	5 x RJ45 ports
VPN Support	PPTP VPN, L2TP VPN, IPSec VPN
Management	Web-based GUI
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
