-53-

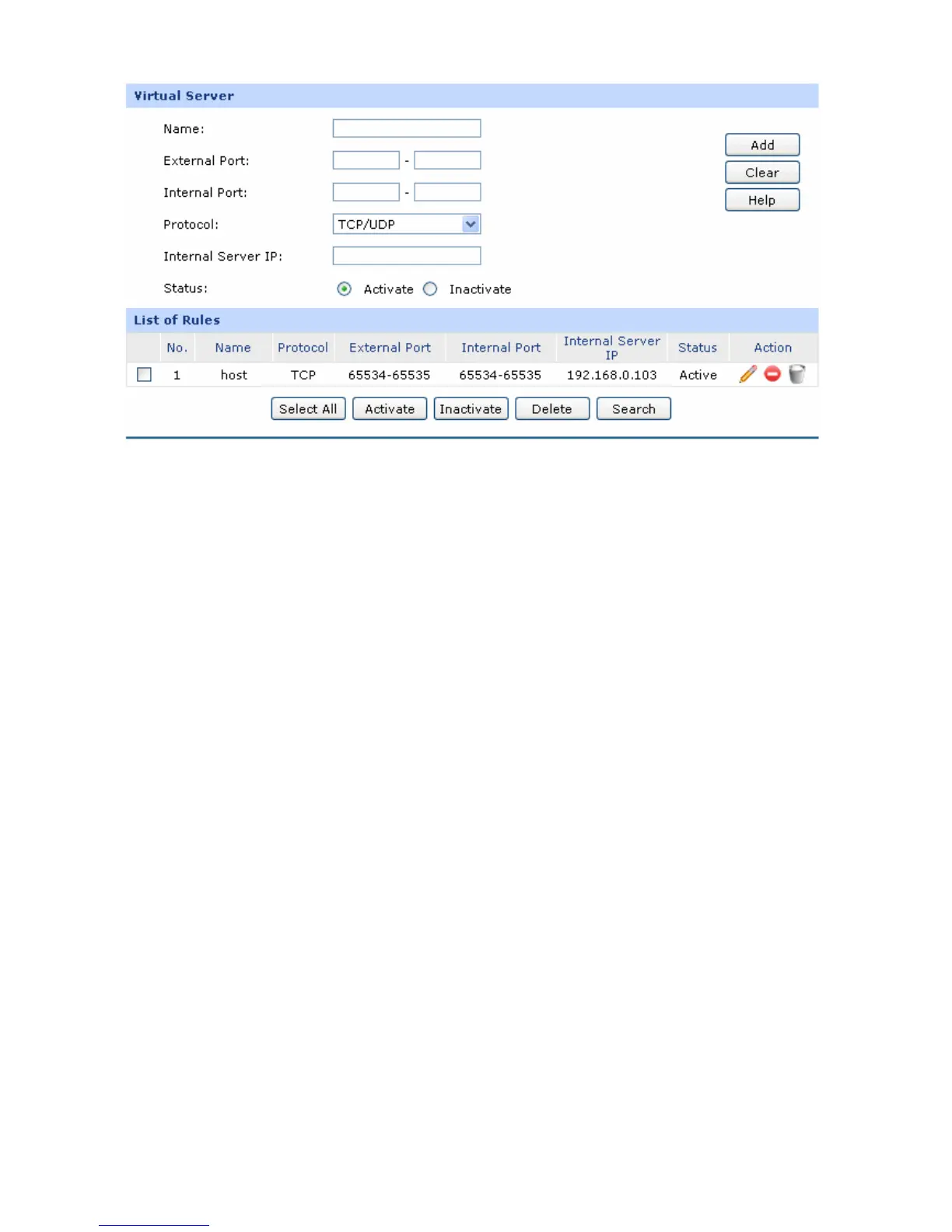

Figure 4-24 Virtual Server
The following items are displayed on this screen:
¾ Virtual Server
Name:
Enter a name for Virtual Server entries. Up to 28 characters can be
entered.
External Port:
Enter the service port or port range provided by Router for accessing
external network. All requests from Internet to this service port or port
range will be redirected to the specified server in local network.
Internal Port:
Specify the service port of the LAN host as virtual server.
Protocol:
Specify the protocol used for the entry.
Internal Server IP:
Enter the IP address of the specified internal server for the entry. All
the requests from the Internet to the specified LAN port will be
redirected to this host.
Status:
Activate or inactivate the entry.

Other manuals for TP-Link TL-R470T

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TP-Link TL-R470T and is the answer not in the manual?

TP-Link TL-R470T Specifications

General IconGeneral
ProtocolsTCP/IP, PPPoE, DHCP, ICMP, NAT
DHCPDHCP Server, DHCP Client
Firewall SecurityIP and MAC Address Binding
Ports5 x RJ45 ports
VPN SupportPPTP VPN, L2TP VPN, IPSec VPN
ManagementWeb-based GUI
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-40°C to 70°C (-40°F to 158°F)
Operating Humidity10% to 90% non-condensing
Storage Humidity5% to 90% non-condensing
