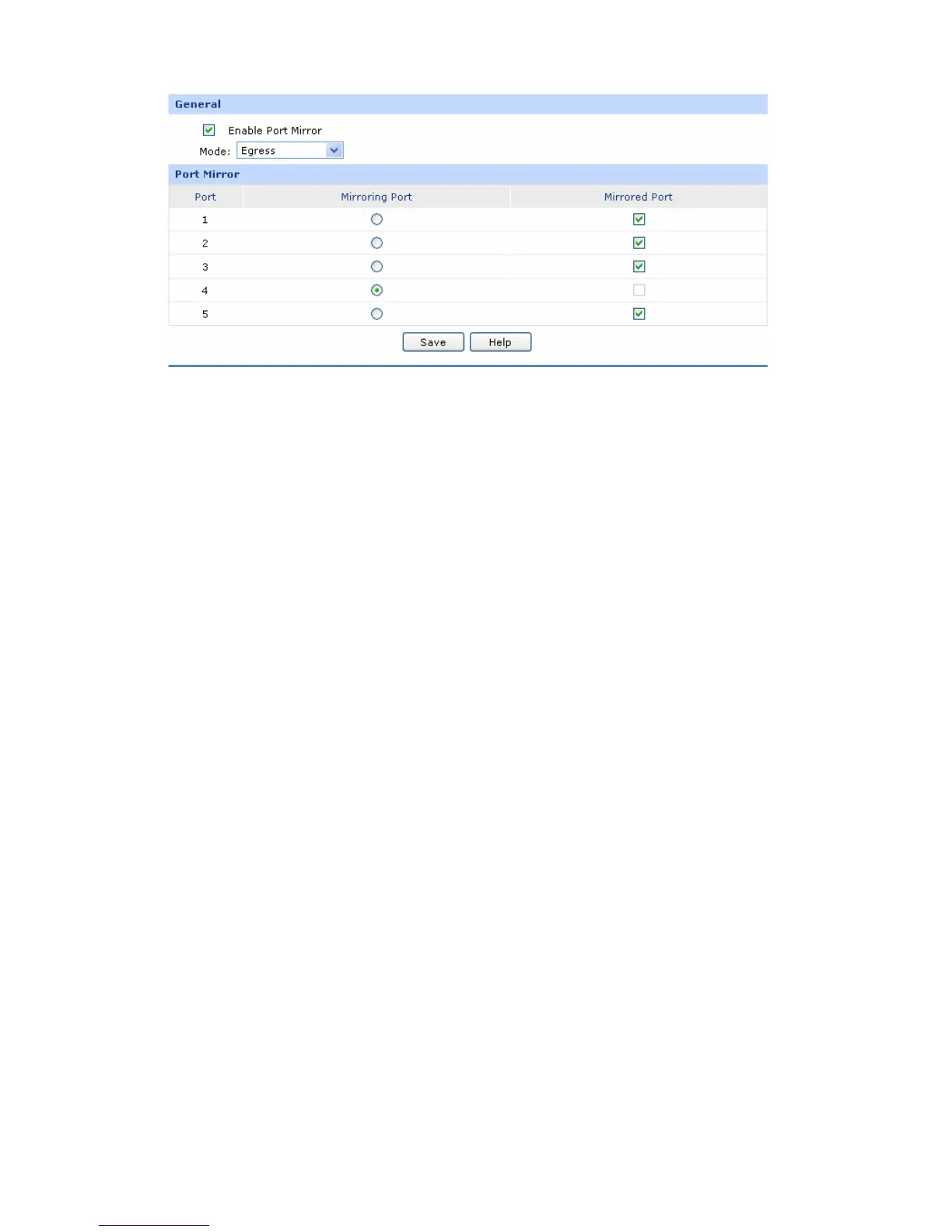

Figure 4-15 Port Mirror

The following items are displayed on this screen:

¾ General

Enable Port Mirror:

Check the box to enable the Port Mirror function. If unchecked, it will be

disabled.

Mode:

Select the mode for the port mirror function. Options include:

z Ingress: When this mode is selected, only the incoming packets

sent by the mirrored port will be copied to the mirroring port.

z Egress: When this mode is selected, only the outgoing packets sent

by the mirrored port will be copied to the mirroring port.

z Ingress&Egress: When this mode is selected, both the incoming

and outgoing packets through the mirrored port will be copied to the

mirroring port.

¾ Port Mirror

Mirroring Port:

Select the Mirroring Port to which the traffic is copied. Only one port can

be selected as the mirroring port.

Mirrored Port:

Select the Mirrored Port from which the traffic is mirrored. One or multiple

ports can be selected as the mirrored ports.

The entry in Figure 4-15 indicates: The outgoing packets sent by port 1, port 2, port 3 and port 5

(mirrored ports) will be copied to port 4 (mirroring port).
