TP-Link TL-SG1016PE User Manual

Switching Configuring Ports
User Guide
25
2
Configuring Ports
Choose the menu Switching > Port Setting to load the following page.

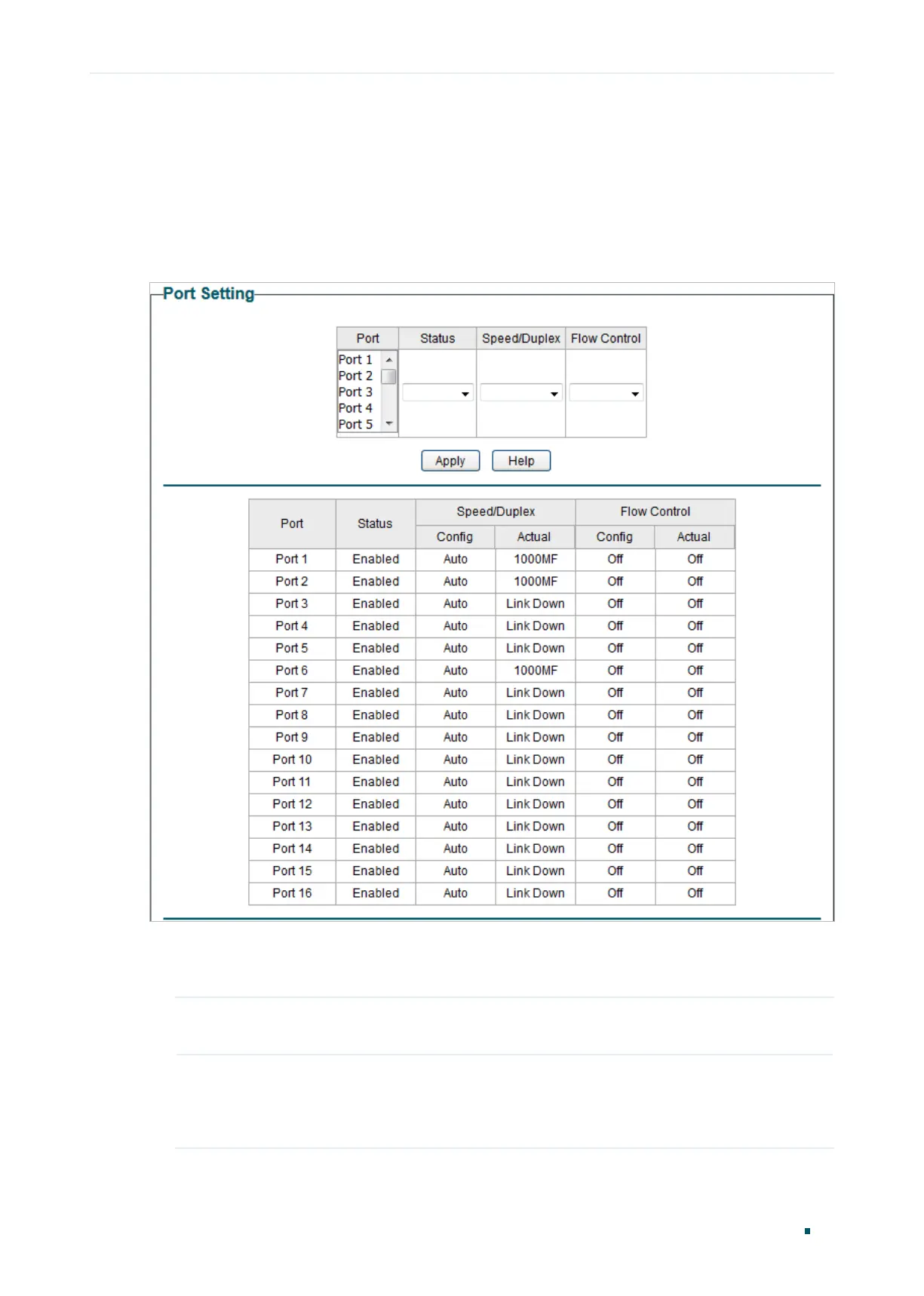

Figure 2-1 Configuring Ports
Follow these steps to configure the port parameters.
1) Select the desired ports and set basic parameters for the ports.
Status Enable or disable the port. With this option enabled, the port forwards packets
normally. Otherwise, the port cannot work. By default, it is enabled.
Speed/Duplex Select the appropriate speed and duplex mode for the port. When Auto is
selected, the port automatically negotiates speed mode with the connected
device. It is recommended to select Auto if both ends of the link support auto-
negotiation.

TP-Link TL-SG1016PE Specifications

General

Total Power over Ethernet (PoE) budget	110 W
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
10G support	No
Number of VLANs	4000
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Tagged VLAN, Port-based VLAN
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Power connector	AC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Switch type	Managed
Switch layer	L2
Form factor	1U
Product color	Black
Number of fans	1 fan(s)
Housing material	Metal
Power source	AC/PoE
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	124.4 W
Jumbo frames	10000
Forwarding rate	23.8 Mpps
Number of queues	4
MAC address table	8000 entries
Packet buffer memory	4.1 MB
Maximum cable length	100 m
Compatible operating systems	Windows
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Package depth	400 mm
Package width	250 mm
Package height	80 mm
Package weight	2280 g
Cables included	AC
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
