TP-Link TL-SG1016PE User Manual

User Guide 32
Switching Configuration Examples

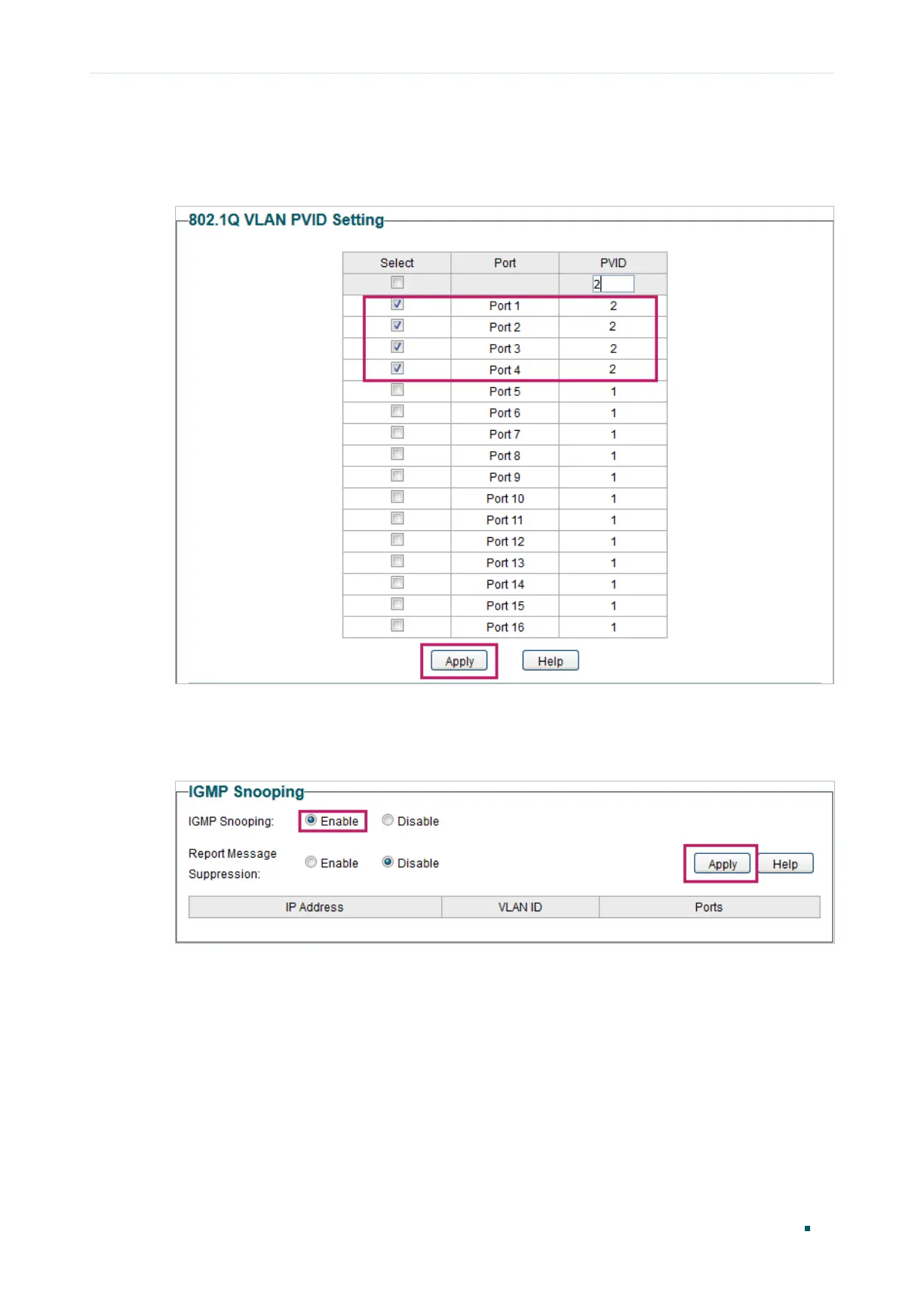

2) Choose the menu VLAN > 802.1Q PVID Setting to load the following page. Select port 1,
port 2, port 3 and port 4, and specify the PVID as 2 for the ports. Click Apply.
Figure 5-3 Configuring 802.1Q PVID
3) Choose the menu Switching > IGMP Snooping to load the following page. Enable IGMP
snooping. Click Apply.
Figure 5-4 Configuring IGMP Snooping
5.2 Example for Configuring LAG
5.2.1 Network Requirements
As shown below, hosts and servers are connected to Switch A and Switch B, and heavy
traffic is transmitted between the two switches. To achieve high speed and reliability of
data transmission, you can bundle multiple physical ports into one logical interface. In this
case, we bundle port 1, port 2 and port 3 of both switches into one logical interface.

TP-Link TL-SG1016PE Specifications

General

Total Power over Ethernet (PoE) budget	110 W
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
10G support	No
Number of VLANs	4000
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Virtual LAN features	Tagged VLAN, Port-based VLAN
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Power connector	AC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Switch type	Managed
Switch layer	L2
Form factor	1U
Product color	Black
Number of fans	1 fan(s)
Housing material	Metal
Power source	AC/PoE
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	124.4 W
Jumbo frames	10000
Forwarding rate	23.8 Mpps
Number of queues	4
MAC address table	8000 entries
Packet buffer memory	4.1 MB
Maximum cable length	100 m
Compatible operating systems	Windows
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Package depth	400 mm
Package width	250 mm
Package height	80 mm
Package weight	2280 g
Cables included	AC
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
