Gigabit Smart Switch
Chapter 4 Connection
4.1 Ethernet Port
Connect a Ethernet port of the switch to the computer by RJ45 cable as the following
figure shown.
RJ45 Port
RJ45 Cable

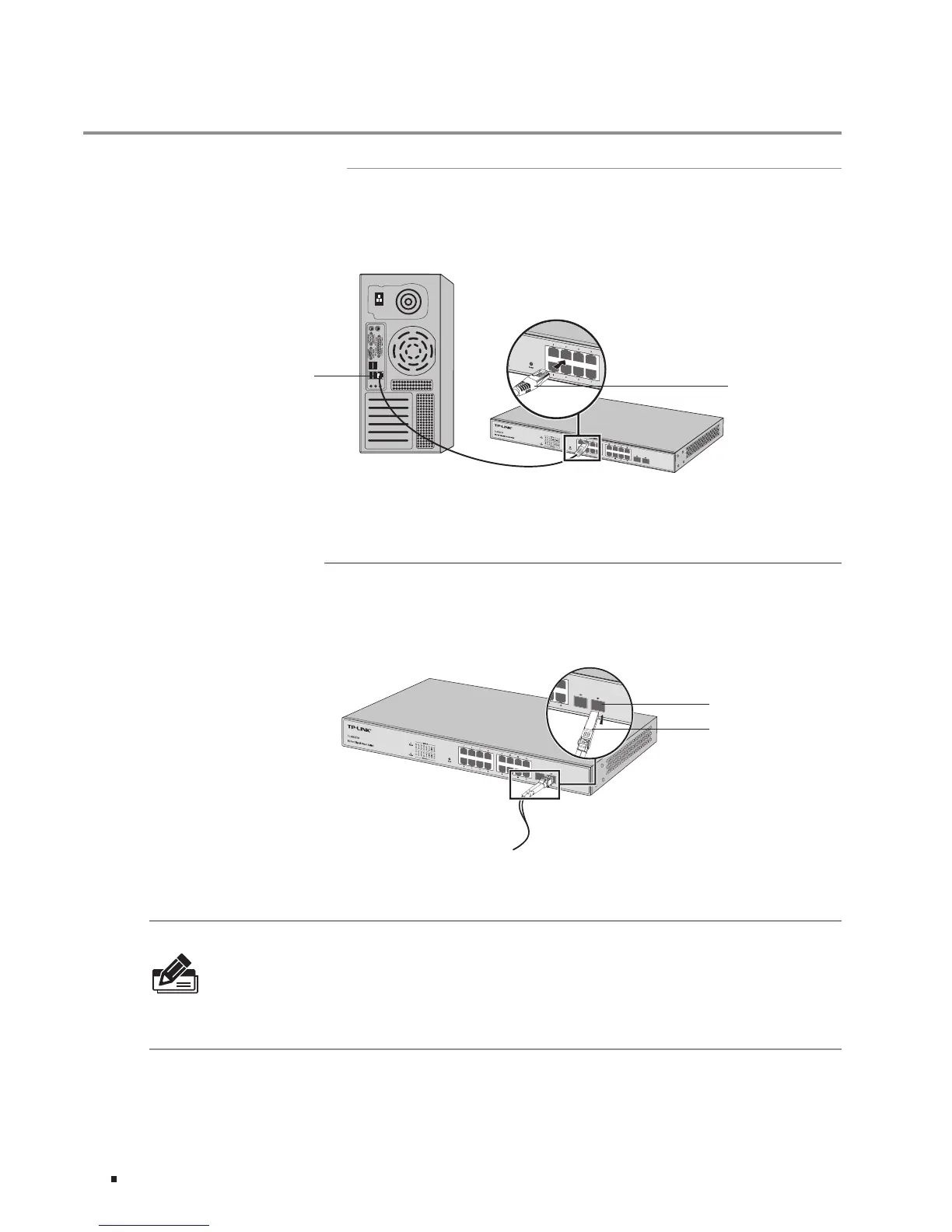

Figure 4-1 Connecting the RJ45 Port
4.2 SFP Port
Connect the SFP port to a SFP module. If an SFP transceiver (purchased separately)
is installed in a slot and has a valid link on the port, the associated RJ45 port will be
disabled and cannot be used.
SFP Port
SFP Module
Figure 4-2 Inserting the SFP Module
Note: When using the SFP port with a 100Mbps module or a gigabit module, you
need to log on to the GUI (Graphical User Interface) of the switch and congure its
corresponding Speed and Duplex mode on Switching
→
Port
→
Port Cong page.
For 100Mbps module, please select 100MFD while select 1000MFD for gigabit module.
By default, the Speed and Duplex mode of SFP port is 1000MFD. T L-SG2452
features
4 individual SFP ports which
support 1000M SFP module connection only.
Connection
