1. Configure the Access Point
Configure the Access Point

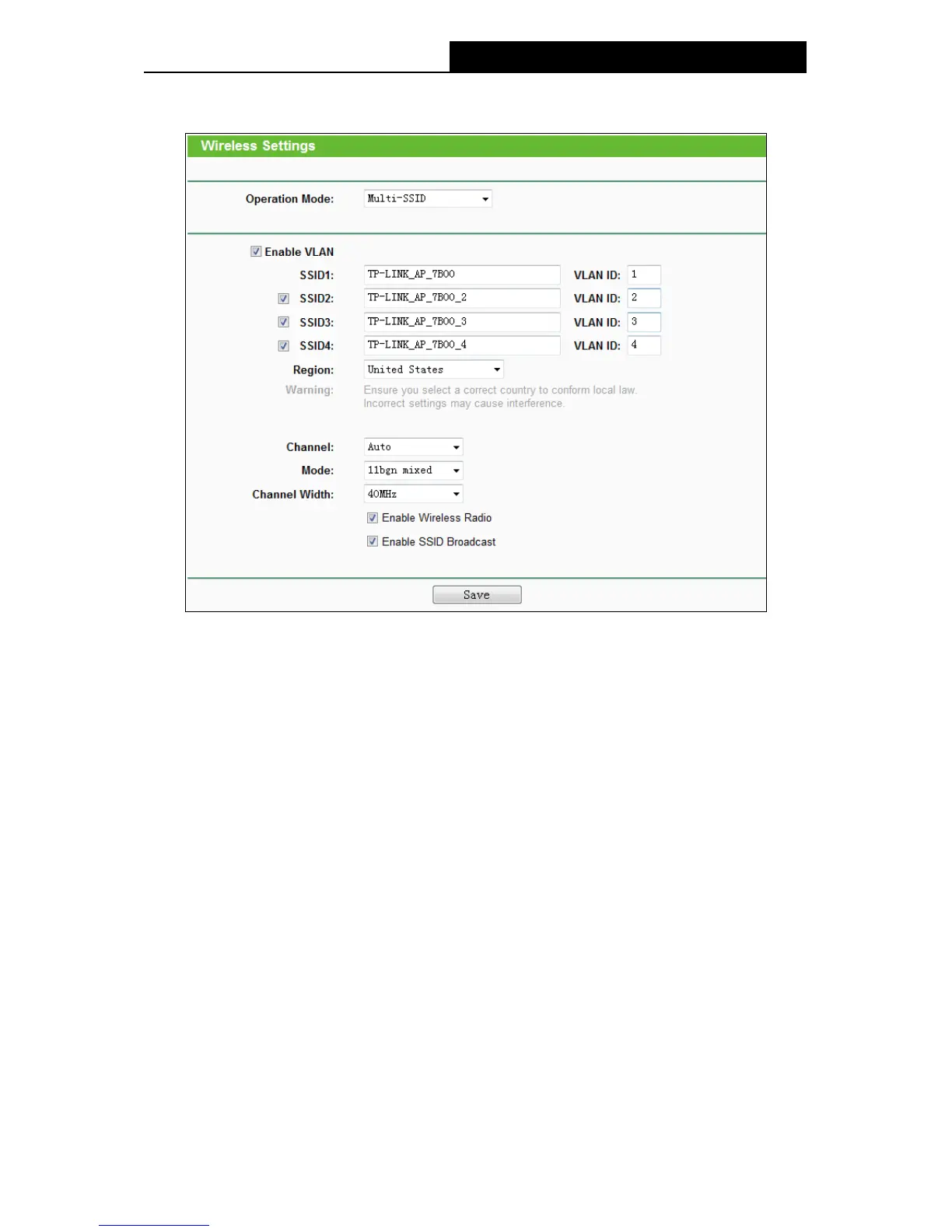

Select Multi-SSID as the operation mode of TL-WA901ND.
Select the checkbox before Enable VLAN to enable VLAN function for this access point.
Configure the SSID and its corresponding VLAN ID. The detailed parameters are shown as
the above figure.
STA1, STA2, STA3 and STA4 join to the wireless network with SSID1, SSID2, SSID3 and
SSID4 respectively.
Click Save to apply the current security settings for the selected SSID.
Note:
1. The wireless STAs join to the network with different VLAN IDs cannot communicate with each
other, for example, STA1 and STA2.
2. The wireless STAs join to the network with the same VLAN ID can communicate with each
other, for example, STA1 and STA3.
3. All wireless STAs can log on to the Web management page of TL-WA901ND and manage the
access point, for example, STA1, STA2, STA3 and STA4.
4. All the packets received in the wired network from the wireless STA will be added a
corresponding VLAN Tag of the wireless STA, unless the VLAN ID of the wireless network is
set to 1.
