There are nine submenus under the System Tools menu (shown as Figure 4-29): Time Settings,
Diagnostic, Ping Watch Dog, Firmware Upgrade, Factory Defaults, Backup & Restore,
Reboot, Password, System Log and Statistics. Clicking any of them will enable you to configure
the corresponding function. The detailed explanations for each submenu are provided below.

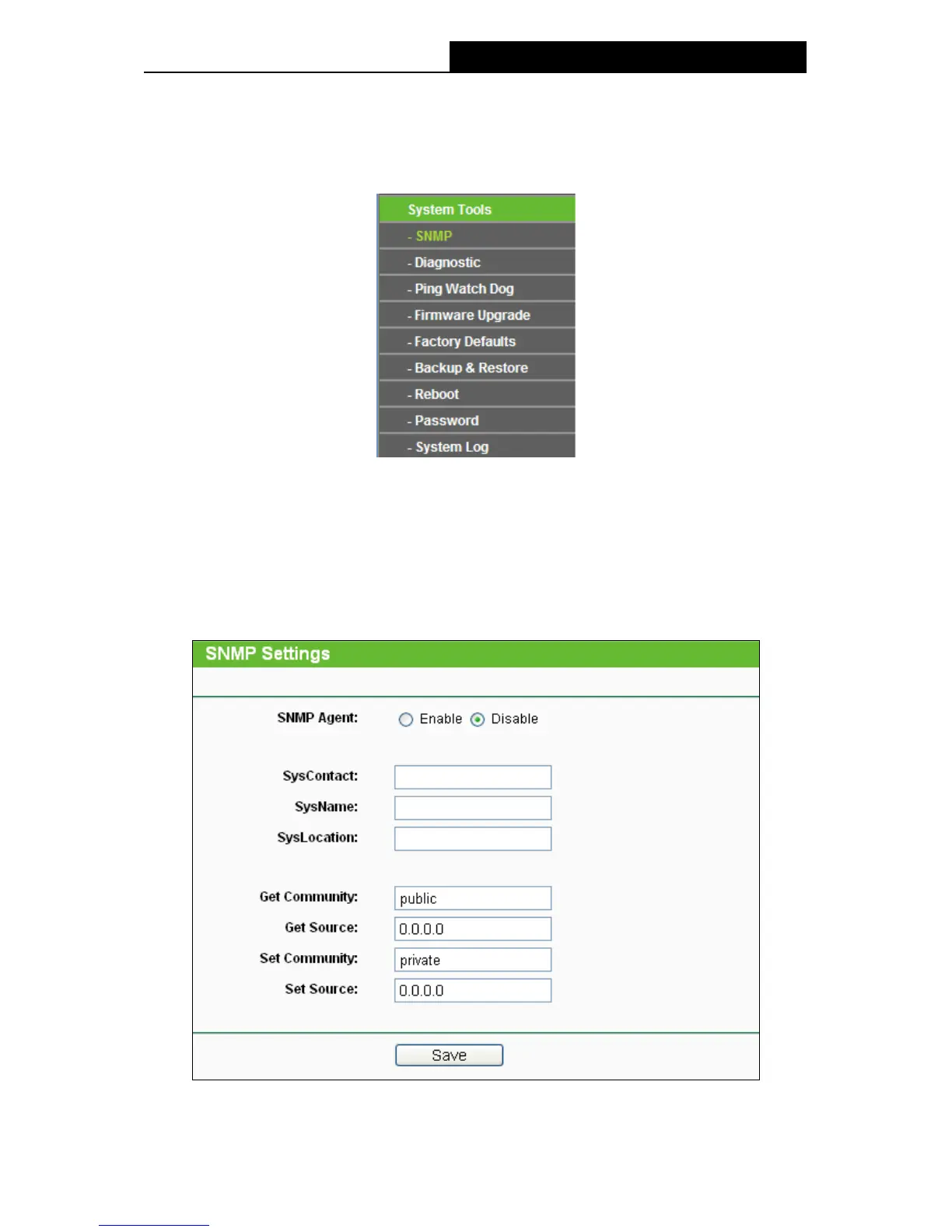

Figure 4-29 The System Tools menu
4.7.1 SNMP
Selecting System Tools > SNMP to enable this function will allow the network management
station to retrieve statistics and status from the SNMP agent in this device. Simple Network
Management Protocol (SNMP) is a popular network monitoring and management protocol, used to
refer to a collection of specifications for network management that include the protocol itself. To
use this function, select Enable and enter the following parameters in Figure 4-30.
Figure 4-30 SNMP Settings
57

TP-Link TL-WA901ND Specifications

General

Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast on/off
Antenna features	Detachable antenna
Antennas quantity	3
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
5 GHz	No
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Wi-Fi data rate (max)	450 Mbit/s
Ethernet LAN data rates	10, 100 Mbit/s
Input current	1 A
AC input voltage	12 V
Power consumption (typical)	5.8 W
Placement	Table, Wall
Certification	CE, FCC, RoHS
Product color	White
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Cables included	LAN (RJ-45)
Compatible operating systems	Windows XP / Vista / 7 / 8
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	129.9 mm
Width	194.8 mm
Height	36.2 mm
