TL-WPS510U Pocket-sized Wireless Print Server
26

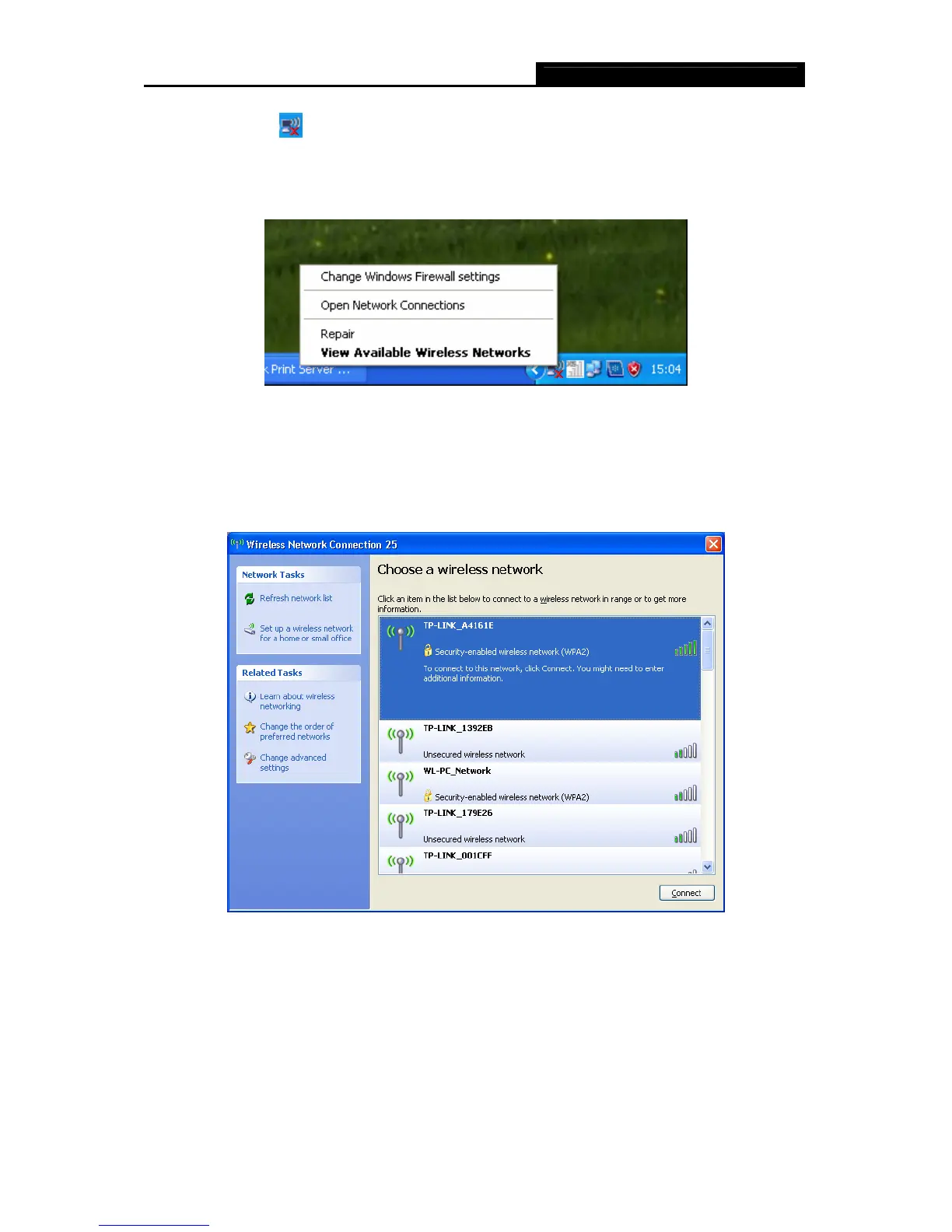

19. Right click the
icon at the right bottom on your desktop and then select View Available
Wireless Networks. (Here we use Windows Zero Configuration as an example. You can also
use vendor utility of wireless adapter. )
Figure 3-40
20. Find the SSID TP-LINK_A4161E of your wireless router (access point). We take
TP-LINK_A4161E for example in the above section as shown in Figure 3-33. Select it and
then click Connect. If your wireless router (access
point) is secured, keys will be required.
Figure 3-41
21. Once the connection is successful, you will see the following screen shown in Figure 3-42.
