T+A DD 820 M - Connecting an Analogue SAT Receiver

59
Analogue SAT receiver
• If the receiver has an S-video output, connect it as
shown in wiring diagram 2.
• If the receiver has a Scart/S-video output, connect it as
shown in wiring diagram 3.
Note:
Any other analogue video source device can also be
connected to the STB input in the same way, instead of an
analogue SAT receiver.

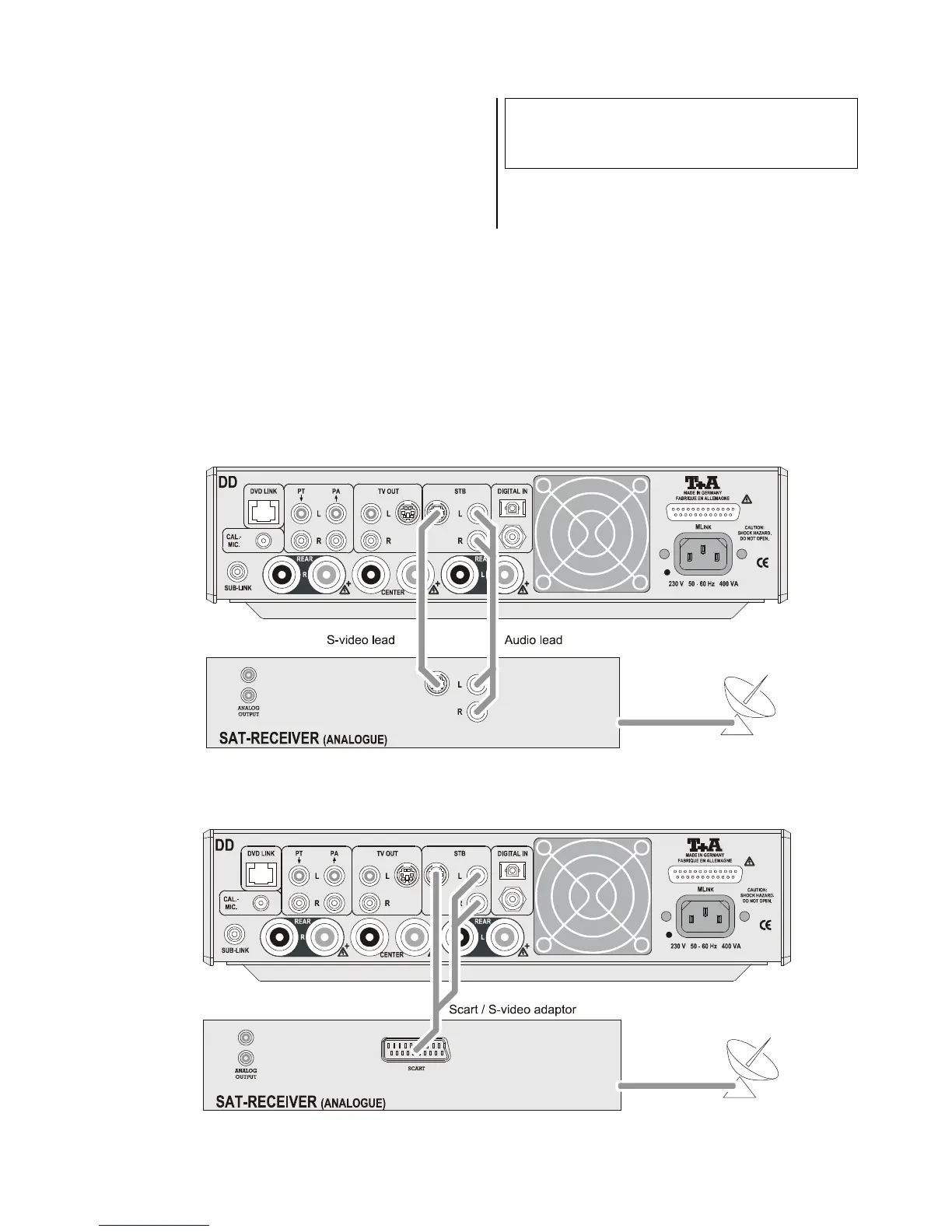

Wiring diagram 2
Analogue SAT receiver with S-video output to DD 820 M.
Wiring diagram 3
Analogue SAT receiver with Scart output to DD 820 M.
