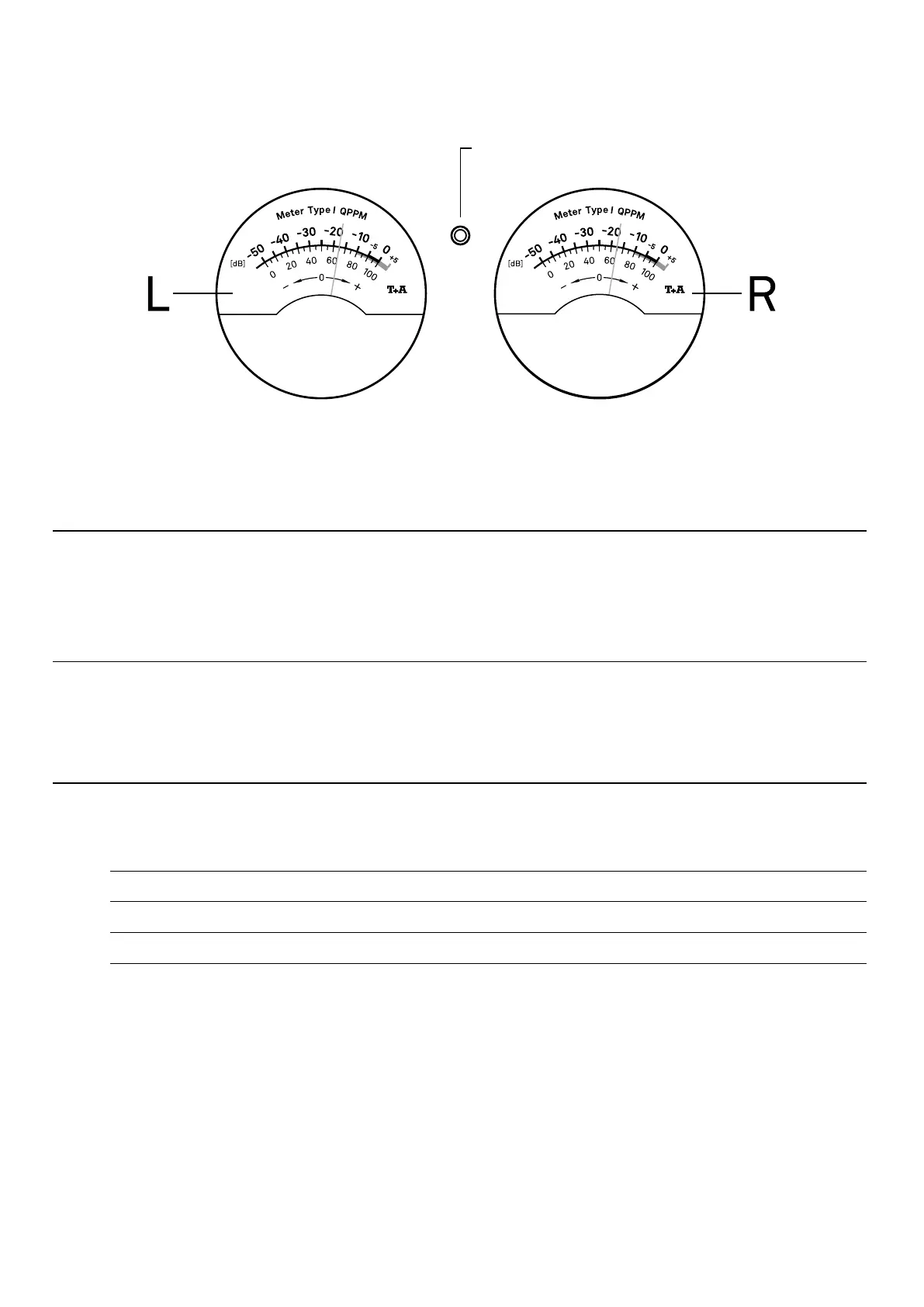

Status-LED
Meter
General information
The meters of the HA 200 are used for various display functions. There are 3 scales available for the diffe-
rent measurements:
• VU Scale [-50...+5 dB] for level measurements
• 0...100 Scale for temperature and relative % measurements
• - 0 + scale for frequency offset and trend measurements
j
The scaling and characteristics of the meter corresponds to those for QPPM meters of type I (DIN PPM).
Status LED
The status LED between the two meters indicates the current display function.
Status-LED Display function
Off VU-Meter - Input level
On VU-Meter - Output level
Flashing Special operating mode - Display of temperature or stream quality
50
