4
HDMI inputs
(optional accessory)
HDMI
N1 and IN2 for connecting a Blu-Ray player or similar.
At the „OUT“ socket, the video signals of the two input sockets „IN 1“ and „IN 2“ are
available for passing on to a television. In addition, the TV sound can be played back
via ARC (Audio Return Channel) (if supported by the TV).
5
Analogue output
PRE OUT
Volume controlled pre-amplier output for connecting external power ampliers or
active loudspeakers.

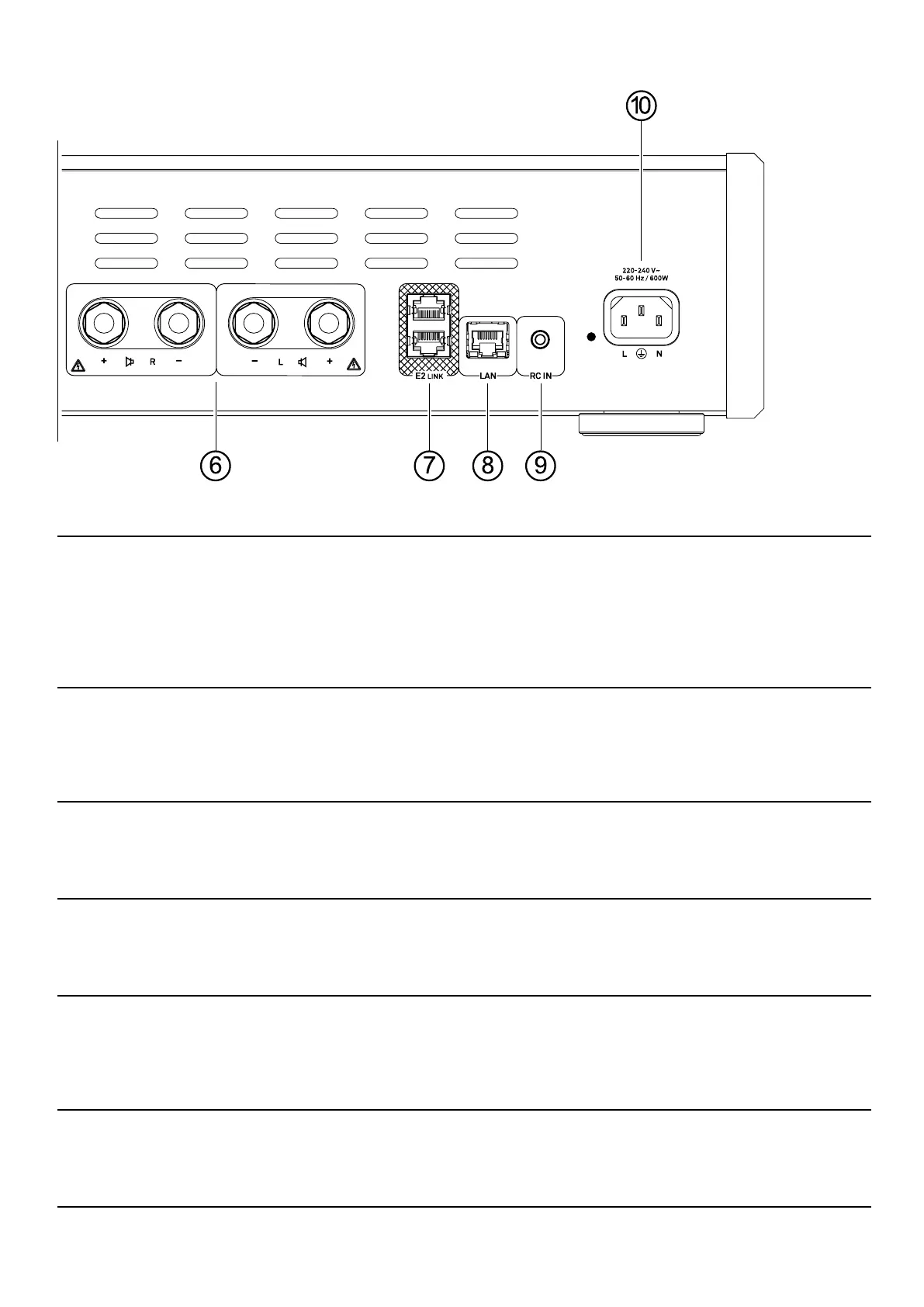

6
Loudspeakers
R and L
Connections for a pair of speakers with an impedance of at least 4 ohms.
7
System link
E2 LINK
Sockets for diagnostic functions and updates
8
Control
LAN
Interface for computer-controlled operation of device functions.
(Home-Automations-Systems e. g. CRESTRON, AMX)..
9
Remote control
RC IN
Socket for remote control receiver E2000.
0
Mains input
The mains cable is plugged into this socket.
41
