T+A PA 1100 E User Manual

Turntable
e.g. BluRay-player
e.g. Tuner
TV set
Remote control
receiver
e.g. CD-player
Computer e.g. Cassette recorder
e.g. Disc-drive
IN
OUT
right loudspeaker left loudspeaker
***
*
**
**
Connection of HDMI devices
Schließen Sie an die HDMI-Eingänge (IN 1 und IN 2) Quellegeräte, wie z.B. einen BluRay-Player oder eine
Spielkonsole an. An der Buchse „OUT“ stehen die Bildsignale der beiden Eingangsbuchsen „IN1“ und
„IN2“ zur Weiterleitung an einen Fernseher zur Verfügung.
Connecting the Bluetooth antenna
To use the Bluetooth function of the PA 1100 E, the supplied antenna must be connected to the „BT“
socket.
Connecting the mains cable
Finally, connect the power cord to the PA 1100 E‘s AC power input, then connect all components to the
power supply. To achieve maximum possible interference rejection the mains plug should be connected to
the mains socket in such a way that phase is connected to the mains socket contact marked with a dot.
The phase of the mains socket can be determined using a special meter. If you are not sure about this,
please ask your specialist dealer.

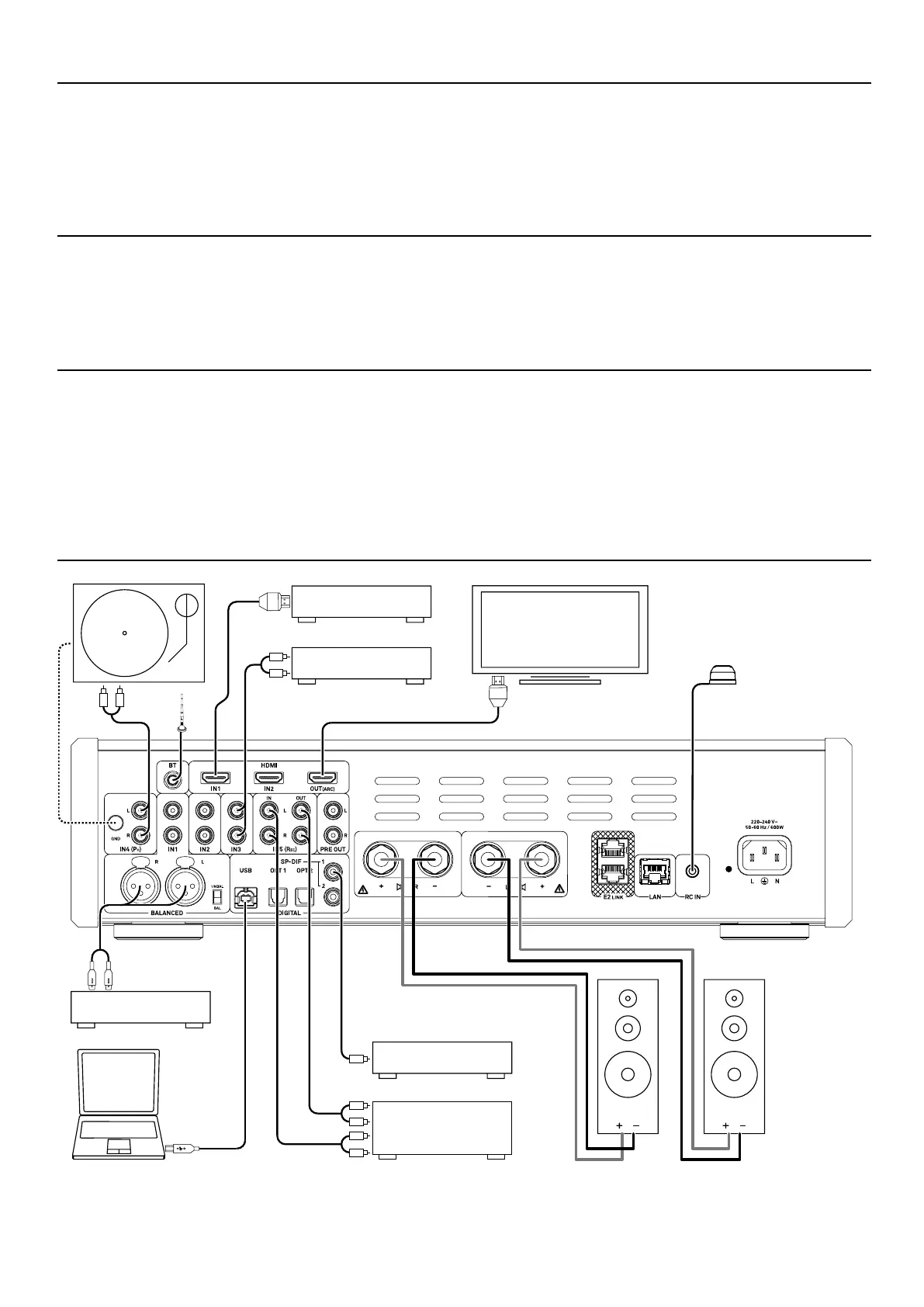

Wiring diagram
* Only with built-in optional Phono module.
** Only possible with built-in HDMI module optionally installed at the factory.
*** For XLR connection, the switch must be set to „BAL“..
43
