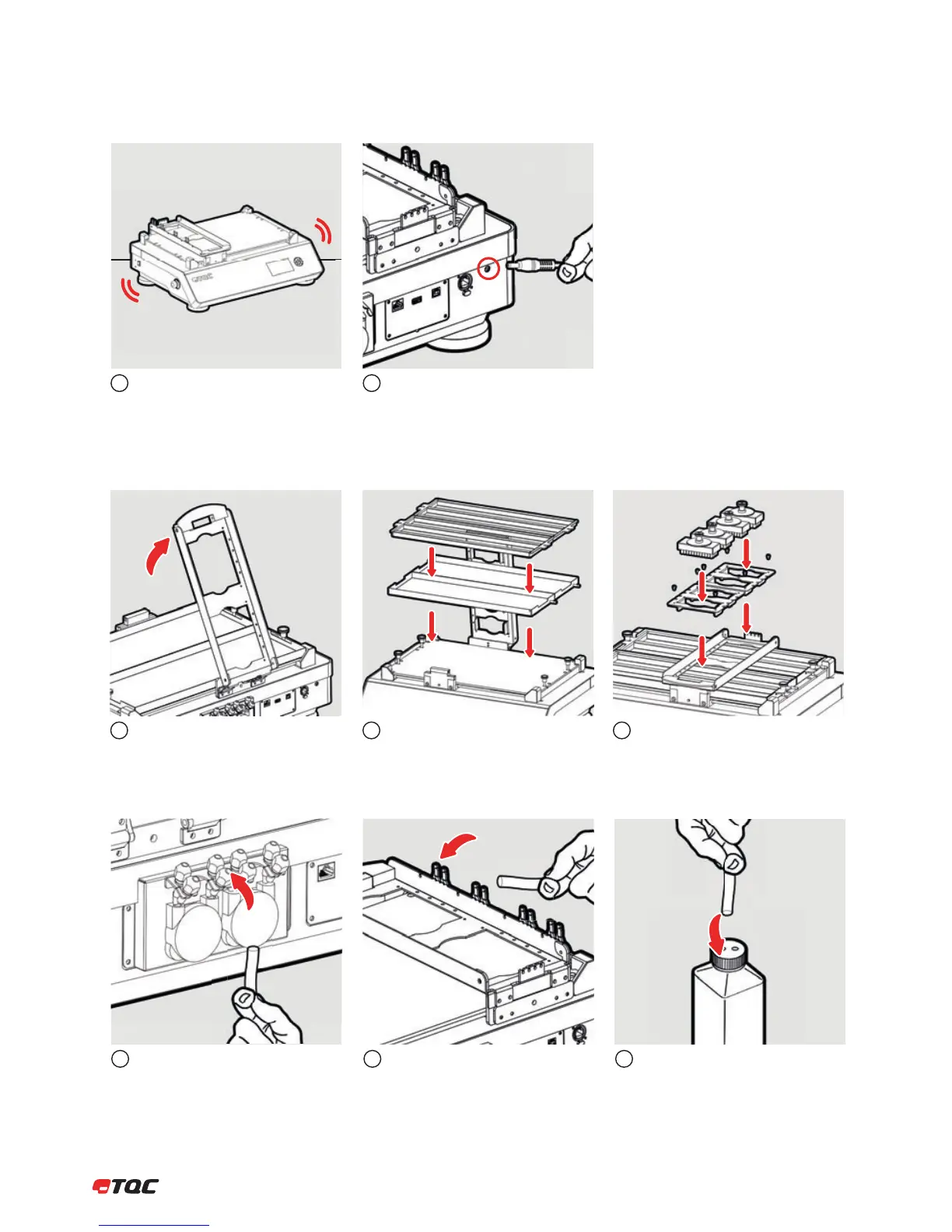

6 INSTRUMENT PREPARATIONS
The instrument has to be installed on a
sturdy table or work area.
Lift the Tool Carrier.
Connect the power cable to the machine
and a wall socket.
Place the Test Beds and the Sample Clamp
Frames. Then close the Tool Carrier.
Place the Tool Holders first, then place the
Tools.
1
1
2
23
6.1 Installation
6.2 Tool Holders and Tools
6.3 Fluid Tubes
Mount the tubes in the bracket on the Tool
Carrier and place the correct tube at each
channel.
Connect the IN tubes from the pumps to
the fluid containers.
23
Connect the tubes to the fluid pumps. The
channels are marked on bracket.
1
