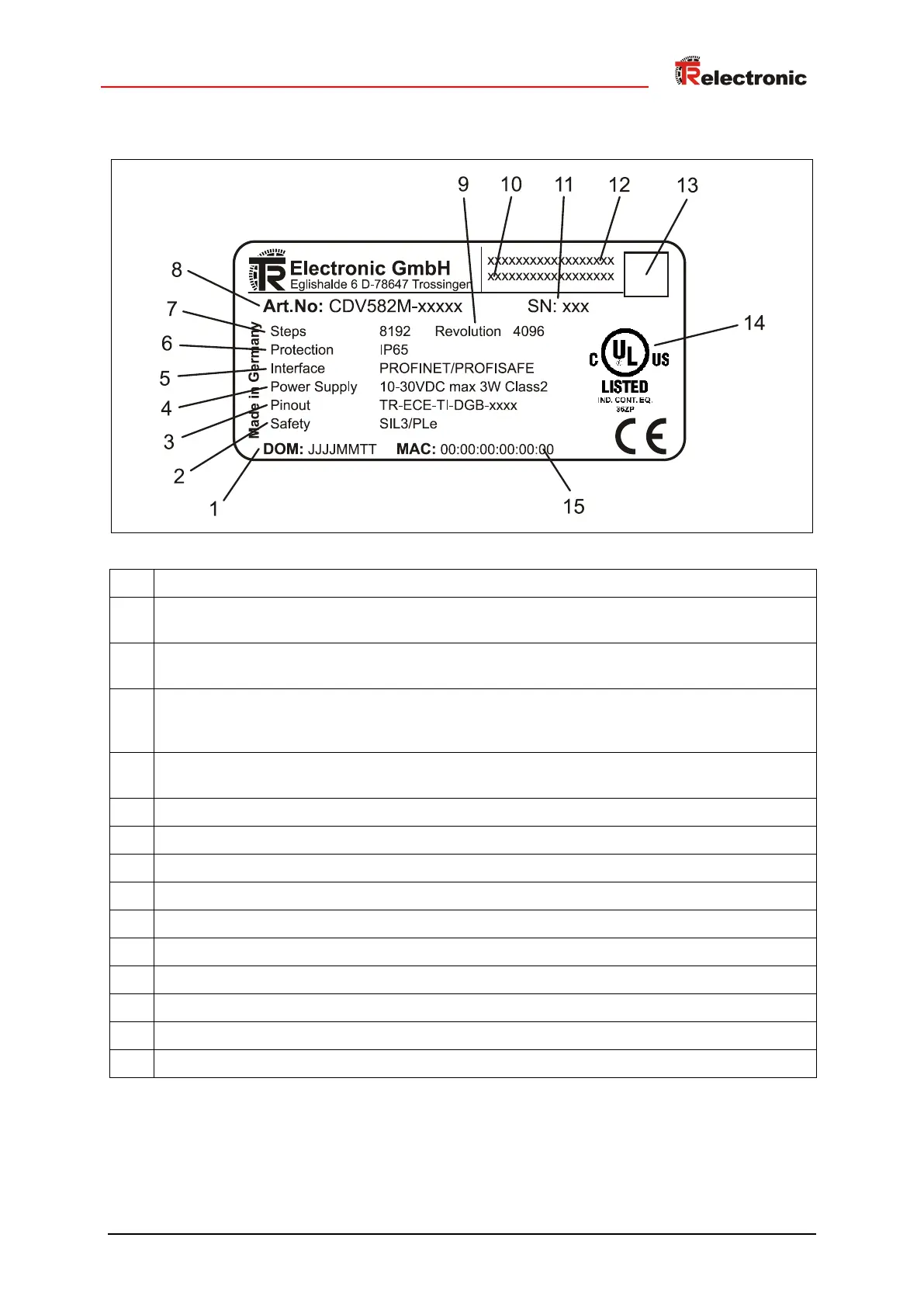

The products are labeled with affixed nameplates and are components of a system.
1: Date of manufacture in the format YYYY: Year, MM: Month, DD: Tag
2:
Maximum achievable Safety Integrity Level or Performance Level,
see Chapter 4.1 on Page 19
3:
Number or identifier of the enclosed pin assignment,
see Chapter 10 -> Pin assignments on Page 29
4:
- Supply voltage range, max. power consumption,
see Chapter 10 -> Product data sheets on Page 29
- Class 2 power supply unit with UL/CSA approval, see Chapter 2.4 on Page 11.
5:
Measuring system – interface / security log,
see Chapter 10 -> -> Interface-specific User Manual on Page 29
6: IP rating (IP-Code), to DIN EN 60529
7: Resolution in steps per revolution
8: Article Number or Order Number
9: Number of revolutions
10: Optional customer note
11: Devices – Serial no.
12: Optional additional note
13: Data Matrix Code
14: UL/CSA approval, see Chapter 2.4 on Page 11
15: MAC address, for IP-based measuring system interface
