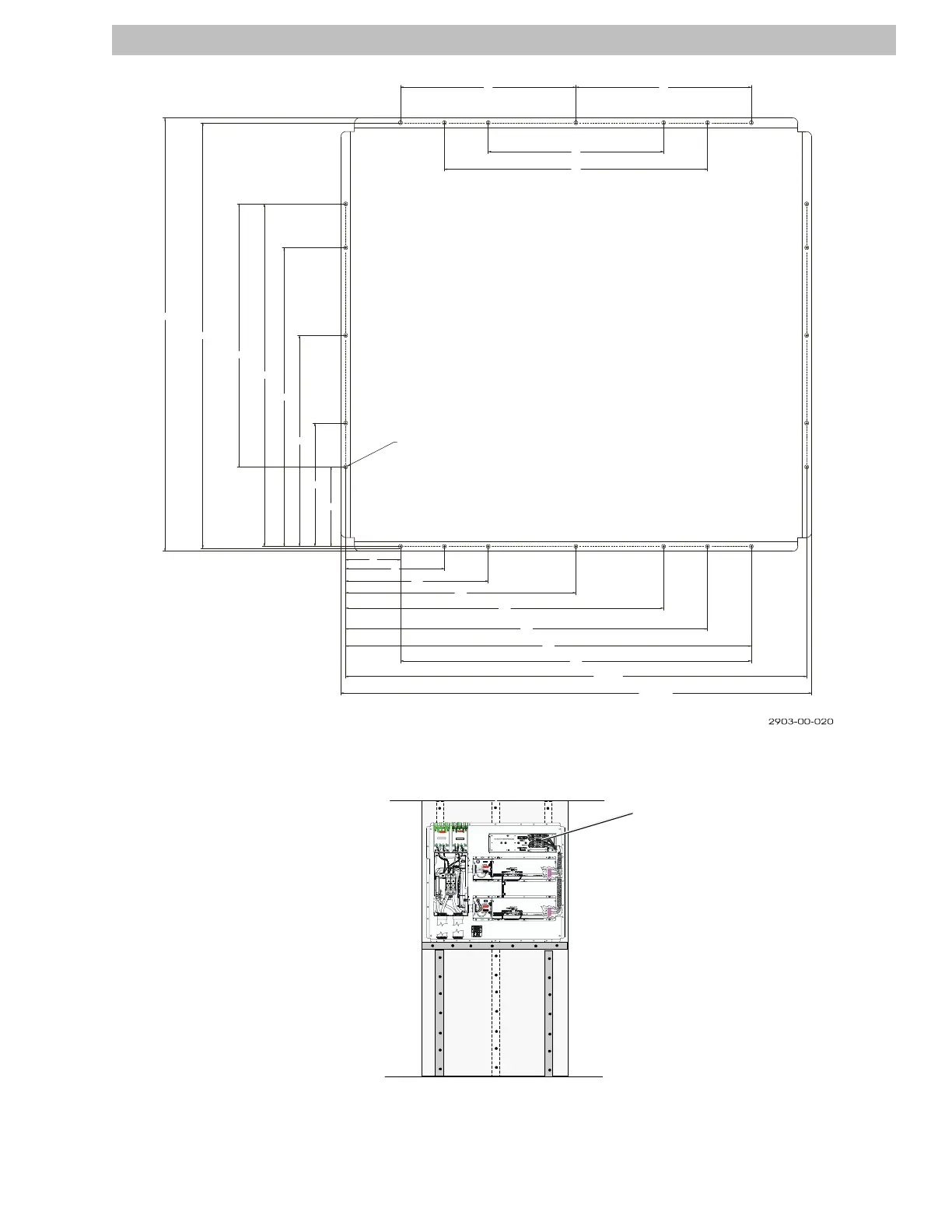

Figure 4
Mounting Hole Dimensions
7 1/4"
11 1/4"
19 1/4"
27 1/4"
31 1/4"
5"
9"
13"
21"
29"
33"
37"
ø3/8" X 24
32"
42 1/16"
42 15/16"
38 13/16"
39 9/16"
24"
16” 16”
24”
16”
2.0 INSTALLATION
5
2903-00-004
Figure 4A
Mounted Power Panel
Adjust the height of the panel so the
bypass switch is within easy reach
