Trace Engineering PP-SW2512/D User Manual

©1999 Trace Engineering
2.0 INSTALLATION
6
NOTE: Items marked with an astrict (*) are only applicable to dual inverter/controller models.

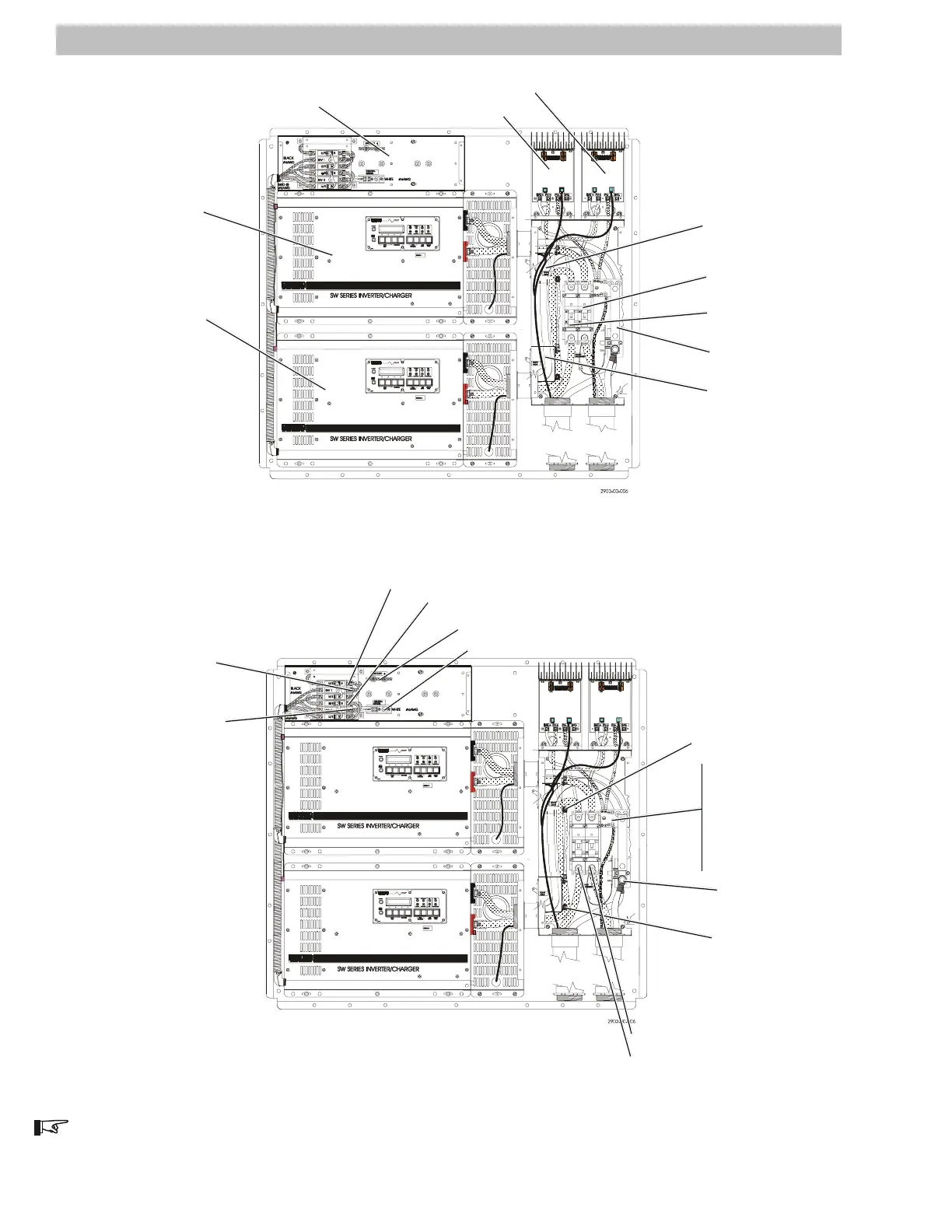

Figure 7
Component Locations (SW Model)
Figure 8
Wire Connection Locations (SW Model)
PV Array #1 Controller
*PV Array #2 Controller
AC Disconnect/Bypass Box
Inverter #1
*Inverter #2
Solar (PV) Array #1
Disconnect
*Solar (PV) Array #2
Disconnect
Battery (positive)
Disconnect #1
*Battery (positive)
Disconnect #2
DC Negative
Ground Bond
120 V ac Output 1
AC INPUT from LINE 1
(black) Utility or Generator
All NEUTRAL wires (white)
AC GROUND wires
*Battery POSITIVE Terminal
Battery POSITIVE Terminal
PV Array
Chassis GROUND
PV Array NEGATIVE
DC Earth GROUND
Battery
NEGATIVE
*Solar (PV) Array 2
POSITIVE
Solar PV Array 1
POSITIVE
*AC INPUT from LINE 2
(red) Utility or Generator
*120 V ac Output 2

Trace Engineering PP-SW2512/D Specifications

General

Input Voltage	12 VDC
Output Voltage	120 VAC
Output Frequency	60 Hz
Waveform	Modified Sinewave
Continuous Output Power	2500 Watts
