Trace Engineering SW Series User Manual

©1999 Trace Engineering
WHITE
#6AWG
0N
OFF
D
60
60
D
OFF
0N
OFF
D
60
60
OFF
D
INV 2
INV 1
GROUN
D
INPUT AND OUTPUT
SOURCE AND LOAD
NEUTRAL
2903-00-011b
Inverter 1 (Top ac breaker)
Inverter 1 HOT IN L1 (Center ac breaker)
Inverter 1 HOT OUT L1 (Bottom ac breaker)
*Inverter 2 (Top ac breaker)
*Inverter 2
HOT IN L2 (Center ac breaker)
*Inverter 2
HOT OUT L2 (Bottom ac breaker)
Ground Block
Neutral Block
Service Crimps are provided to allow utility
and load connections. DO NOT REMOVE
FACTORY INSTALLED WIRING!

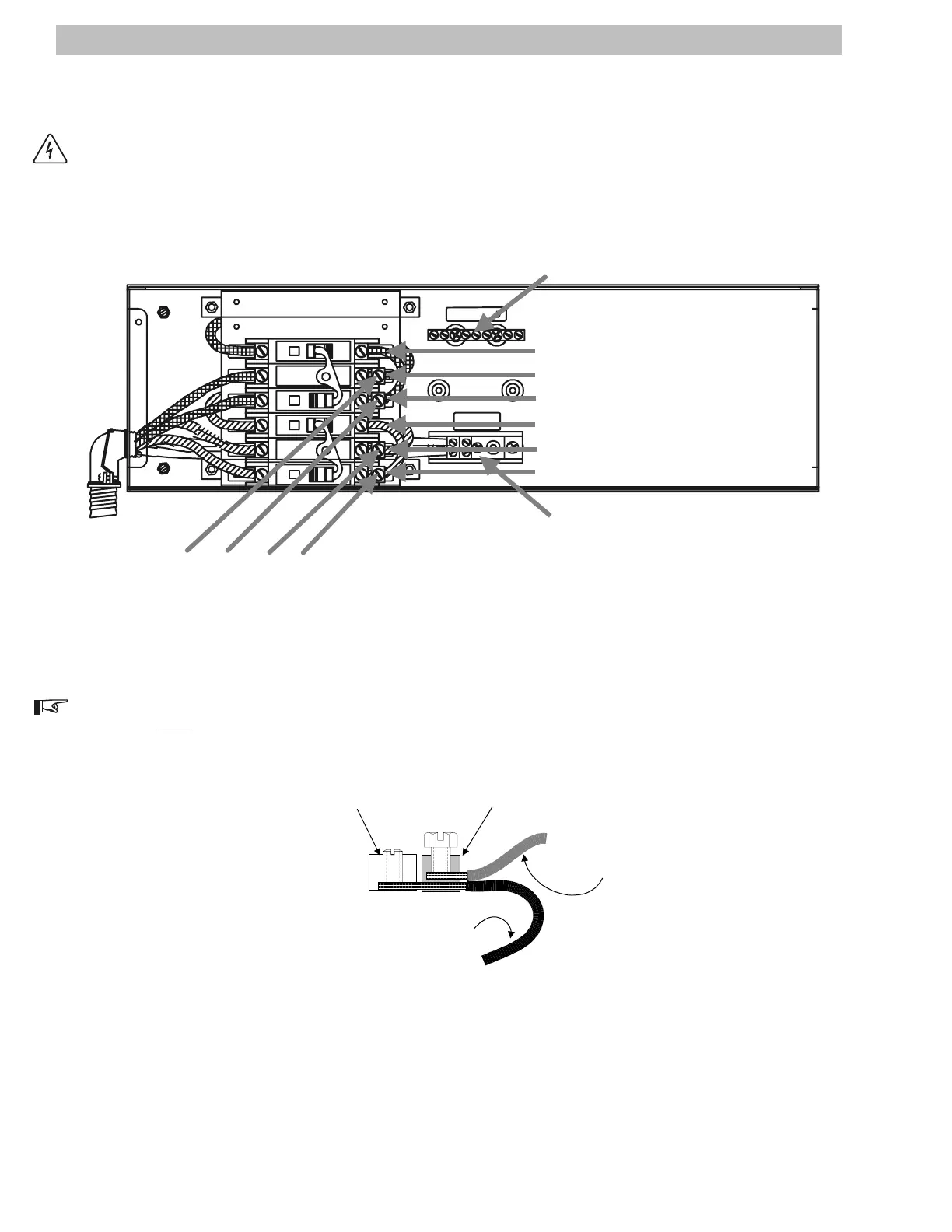

Figure 13
SW Series AC Disconnect Component Identification
AC WiringSW Series Dual Inverter Models
WARNING: THIS SECTION DEALS WITH WIRING THE MAIN SERVICE UTILITY PANEL TO THE POWER
PANEL. ENSURE THAT ALL AC POWER TO THE UTILITY PANEL IS SWITCHED OFF.
Breaker Lug
Service Crimp
Existing Factory Wiring
Added Input or
Output Wire
2906-00-026
Figure 14
Breaker Terminal Lug Detail (side view)
NOTE: Service Crimps, provided on the breaker terminals, are for external input (utility) and output (load)
wiring. Do NOT remove existing factory wiring or screws.
12
2.0 INSTALLATION
