5.0 SYSTEM SHUTDOWN
27
Emergency Shutdown Procedure
To completely shutdown the system in an emergency, follow these steps:
1. Switch the BATTERY DISCONNECT(s) to the OFF position.
2. Switch the SOLAR PV ARRAY DISCONNECT breaker(s) to the OFF position.
3. Switch the AC DISCONNECT/BYPASS breaker(s) to the OFF position.
The system is completely shutdown with all sources of input dc and ac being removed from the inverter.

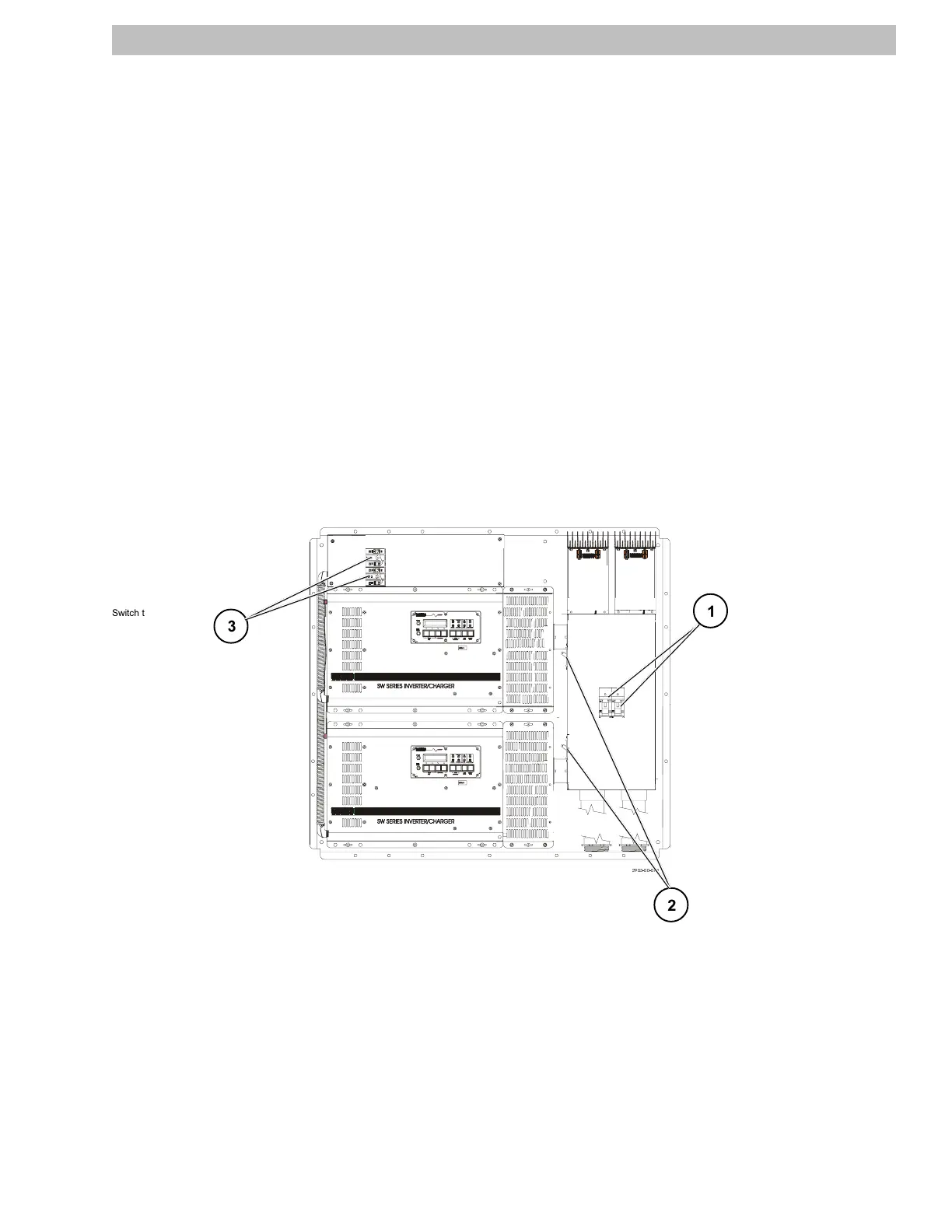

Figure 30
Emergency Shutdown

1
2
3
Switch the AC
Disconnect(s) OFF
Switch the Battery
Disconnect(s) OFF
Switch the Solar PV
Array Disconnect(s)
OFF
