B
SPEED CONTROL
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
85
Repair and Service Manual
699322
Accelerator Cable Installation
To install the accelerator cable, proceed in reverse order.
(Ref. Fig. 2)(Ref. Fig. 3)(Ref. Fig. 4)
Accelerator Cable Adjustment (Ref. Fig. 2)
To adjust the accelerator cable, position the cable in the
accelerator cable bracket at the rear axle so that the
throttle is fully closed while allowing 1" travel at the top of
the accelerator pedal. Once correctly positioned, tighten
the cable securing nuts (13) on the bracket.
Throttle Rod Removal

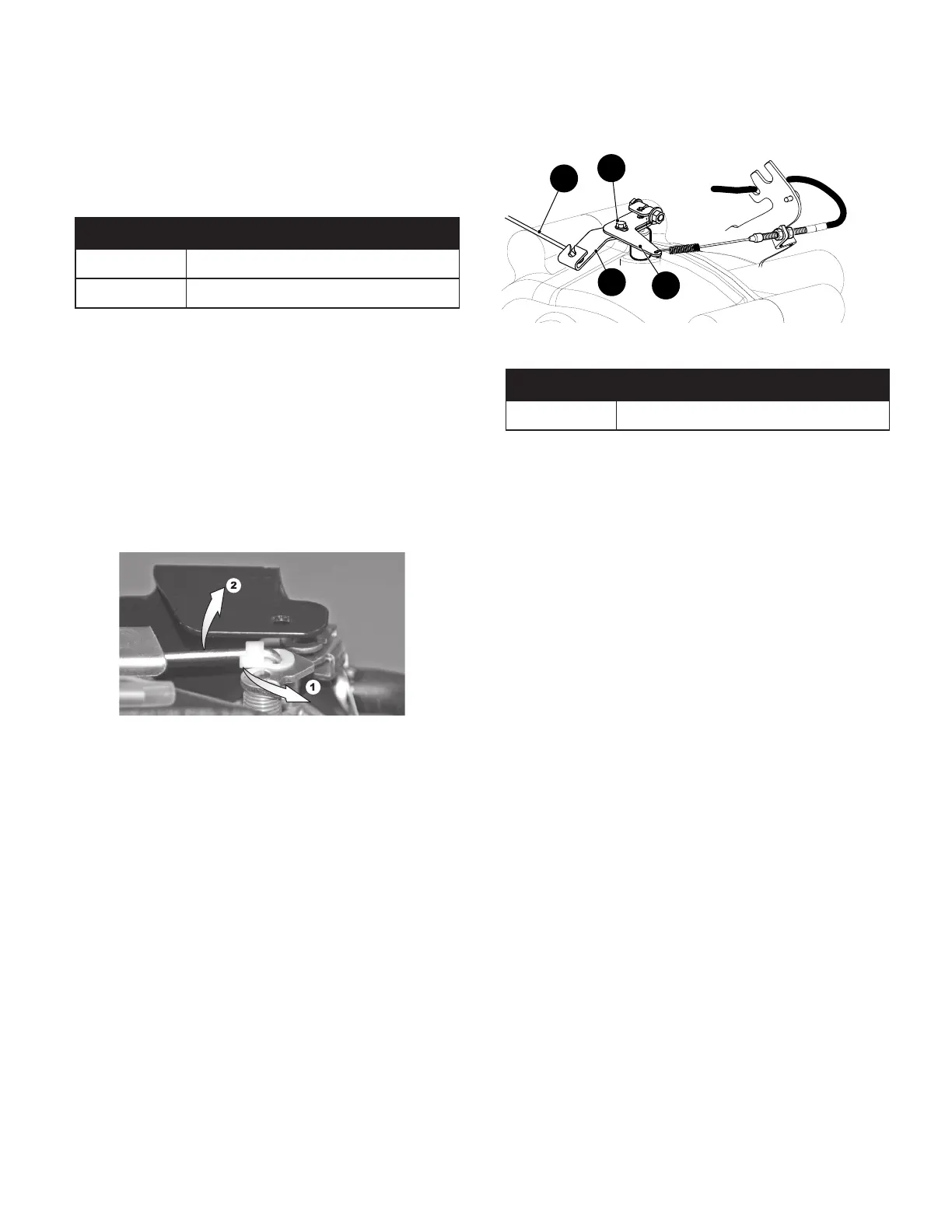

To remove the throttle rod from the throttle plate (Ref. Fig.
5), twist the plastic connector (1) counterclockwise away
from the throttle rod, line up the slot with the tabs on the
rod and remove the rod from the throttle lever by lifting up
(2).
Fig. 5 Throttle Rod Removal
Throttle Rod Adjustment
To adjust the throttle rod (17), loosen the bolt (18)
between the two governor levers and rotate lower gover-
nor lever (19) counter-clockwise until the throttle plate is
fully open and rotate upper governor lever (20) counter-
clockwise until it stops then tighten bolt that locks the gov-
ernor levers in position.
Fig. 6 Throttle Rod Adjustment
PEDAL BOX ADJUSTMENTS
Tool List Qty.
Needle Nose Pliers ......................................................1
Phillips Screwdriver .....................................................1
Open End Wrench, 9/16".............................................1
Open End Wrench, 1/2"...............................................1
Open End Wrench, 7/16".............................................1
Open End Wrench, 3/8"...............................................1
Allen Wrench, 1/8" .......................................................1
NOTICE: If any adjustments are made in the pedal
box or accelerator area, it is necessary to go back
and perform the speed control cable adjustment
again. This must be done because any adjustment
made in the pedal box or accelerator area will inad-
vertently affect the cables.
Accelerator Pedal Arm Adjustment
Lift front of vehicle using procedures and safety informa-
tion in the SAFETY section.
Confirm the accelerator pedal arm (1) contacts the accel-
erator pedal bracket (2) when in the released position
(Ref. Fig. 7). If there is no contact, loosen the jam nut (3)
and rotate the rod (4) until contact is made.
ITEM TORQUE SPECIFICATION
3 30 - 33 ft. lbs (40 - 44 Nm)
13 35 - 44 in. lbs (4 - 5 Nm)
ITEM TORQUE SPECIFICATION
18 60 - 72 in. lbs (7 - 8 Nm)
18
17
19
20
