B
BRAKES
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
27
Repair and Service Manual
699322
Compensator Assembly
The compensator assembly contains a spring, which is
compressed until the stop tube within the spring is
engaged and the linkage becomes solid (Figure 3). The
brake compensator assembly applies a spring load to the
parking brake system and insures that the parking brake
remains under tension whenever it is engaged.

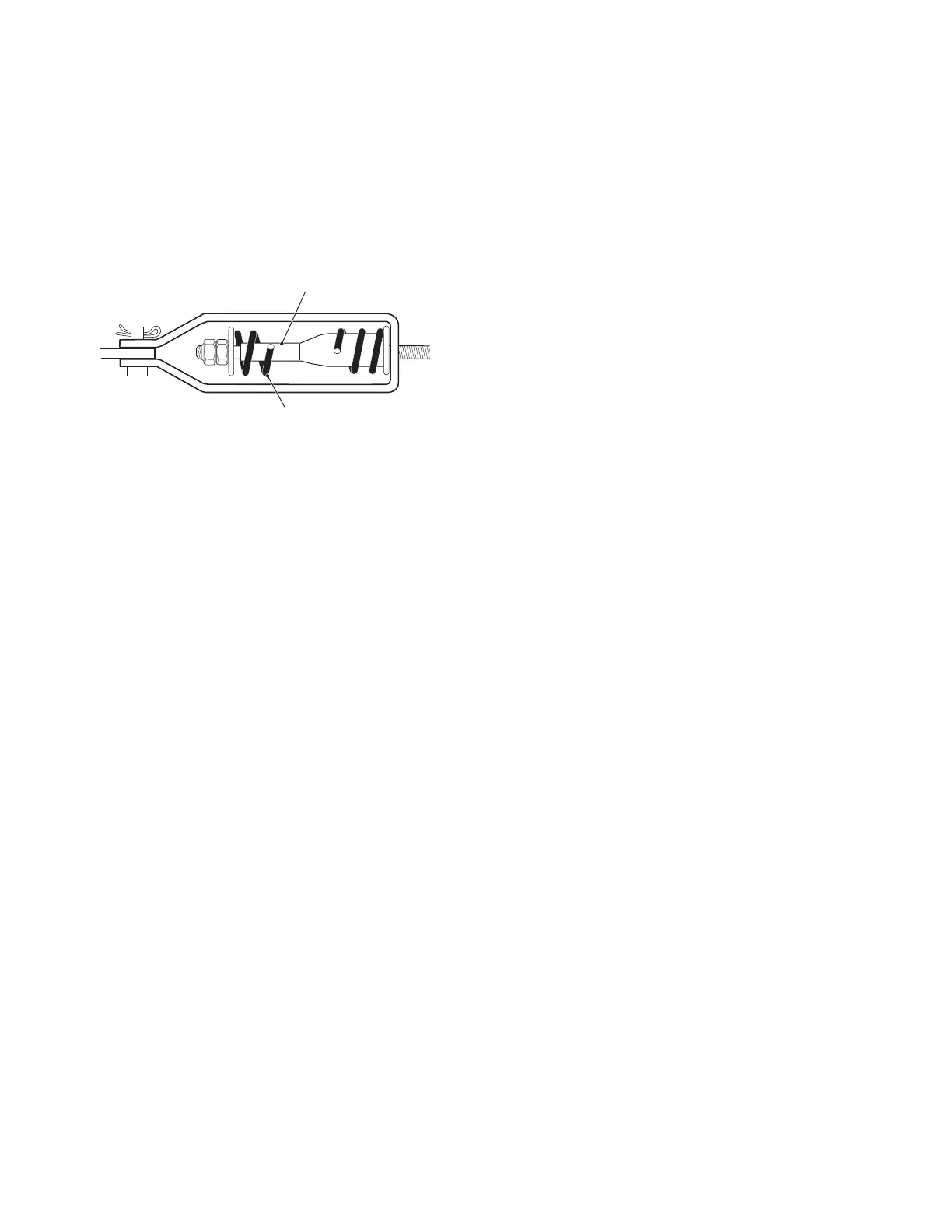

Figure 3 Compensator Assembly
Kick-Off Actuating Linkage
The kick-off actuating linkage may require periodic adjust-
ment to compensate for the normal wear. Replacement of
any linkage components will also require an adjustment.
Spring
Stop Tube
