T10 Installation Notes v1.7
Generic T10 Installation Notes v1.7.doc 12.08.2015
Page 16
5.5.4 Dallas I-Button Installation (T10-Lite 9wire ONLY)
The T10-Lite 9wire is capable of using the Dallas i-Button technology to identify drivers. This
technology is a simple 2 wire interface (Signal and Ground). There are several suppliers of this
technology ranging from simple readers (Touch detection) to dwelled latched readers (physical
and magnetic) and some of these have built in LED indication to give visual feedback of detection
to the user. Trakm8 provide a plug and play reader for the simple touch detection of a driver so
that it can be plugged in directly to the main loom (CAB415). This reader can be used with the
driver Tag (TAG700). For other i-Button compatible products please contact Trakm8 for further
information.

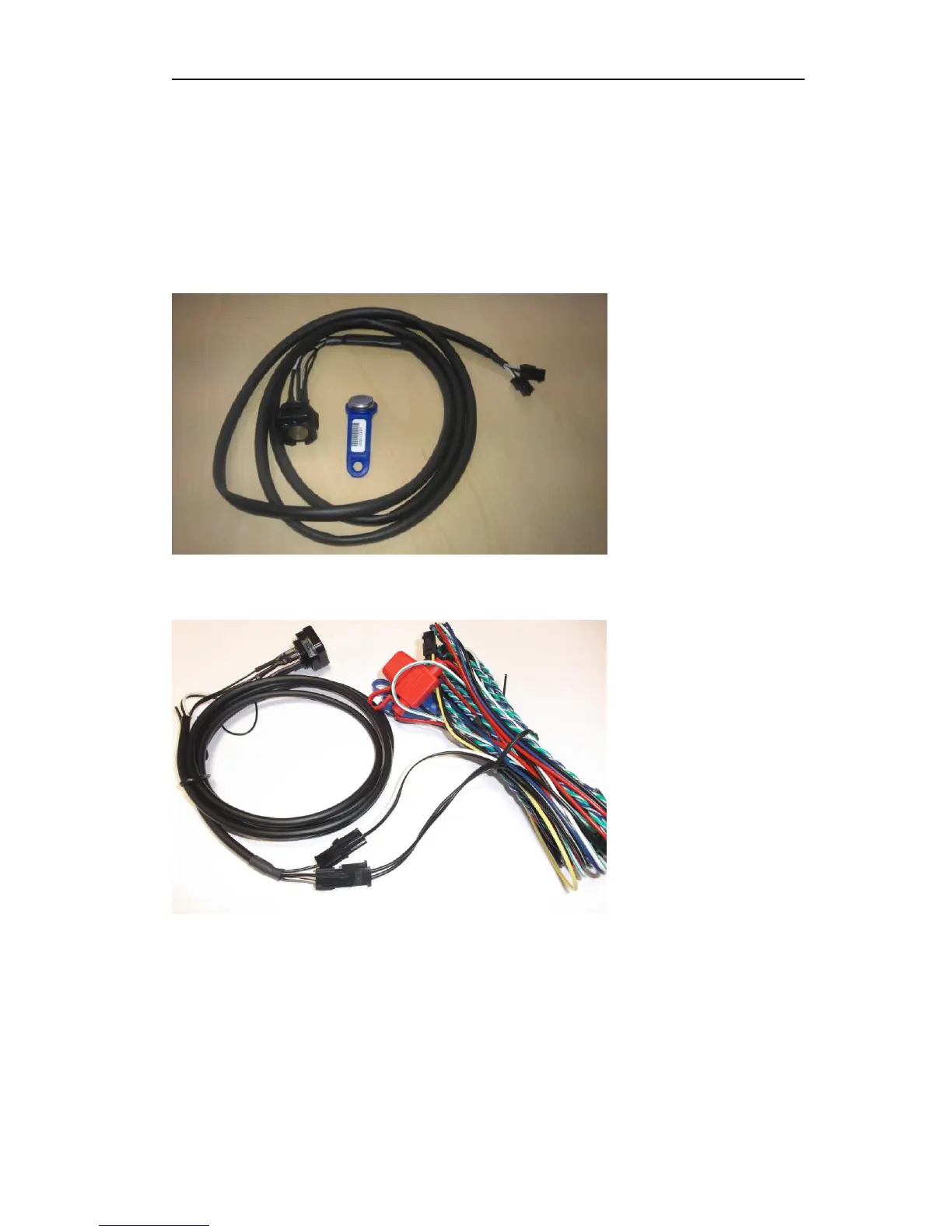

The wire colour pair of the button assembly is simply matched with its equivalent on the main
loom (CAB415) as shown in the pictures below.
NOTE
If you are using the Dallas reader in tandem with the Dual driver LED then there is no
requirement to connect the Molex plug with the black and white wires as the LED’s on the Dual
driver LED accessory will be connected instead of the one in the Dallas reader cable or vice versa
depending on preference. If you wish to connect both LED’s in tandem then please use accessory
cable (CAB758) for this purpose.
