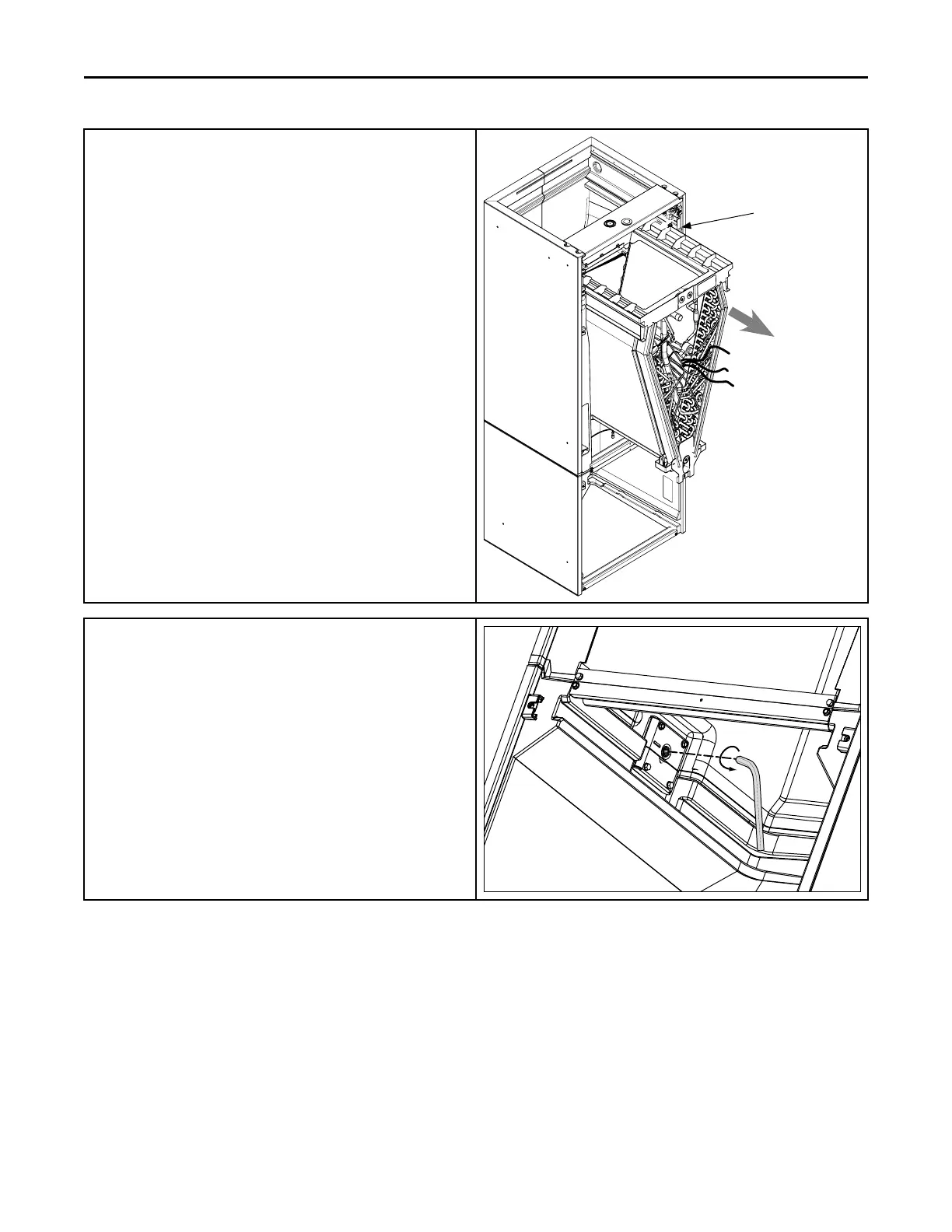

6. Slide Coil assembly out of unit using built-in coil support channels
and set aside
Coil Support
Channel
7. Use a 5/16 Allen wrench on the locking mechanism on each side
of the bottom half of the cabinet to loosen the locking mechanism.
The locks loosen by turning counter-clockwise approximately 3/4
of a turn.
OOppttiioonnaall CCaabbiinneett DDiissaasssseemmbbllyy
