4
18-GJ89D1-1E-EN
Installer Guide Notes
AALLLL PPhhaasseess ooff tthhiiss iinnssttaallllaattiioonn mmuusstt ccoommppllyy wwiitthh
NNAATTIIOONNAALL,, SSTTAATTEE aanndd LLOOCCAALL CCOODDEESS!!
IImmppoorrttaanntt:: This Document is customer property and is
to remain with t his unit. Please return to
service information upon completion of
work
IImmppoorrttaanntt:: These instructions do not cover all
variations in systems nor provide for every
possible contingency to be met in
connection with the installation. Should
further information be desired or should
particular problems arise which are not
covered sufficiently for the purchaser’s
purposes, the matter should be referred to
your installing dealer.
SSeeee TTAAMMXX SSeerrvviiccee FFaaccttss ddooccuummeenntt ffoorr iinnffoorrmmaattiioonn
oonn AAiirrffllooww TTaabblleess aanndd ttrroouubblleesshhoooottiinngg fflloowwcchhaarrttss..
IImmppoorrttaanntt:: The 24 volt low voltage wire harness is
shipped in the supplied document pack.
NNoottee:: The manufacturer recommends installing ONLY
A.H.R.I. approved, matched indoor and outdoor
systems. Some of the benefits of installing
approved matched indoor and outdoor split
systems are maximum efficiency, optimum
performance, and the best overall system
reliability.
NNoottee:: Condensation may occur on the surface of the air
handler when installed in unconditioned spaces,
verify that all electrical and refrigerant line
penetrations on the air handler are sealed
completely.

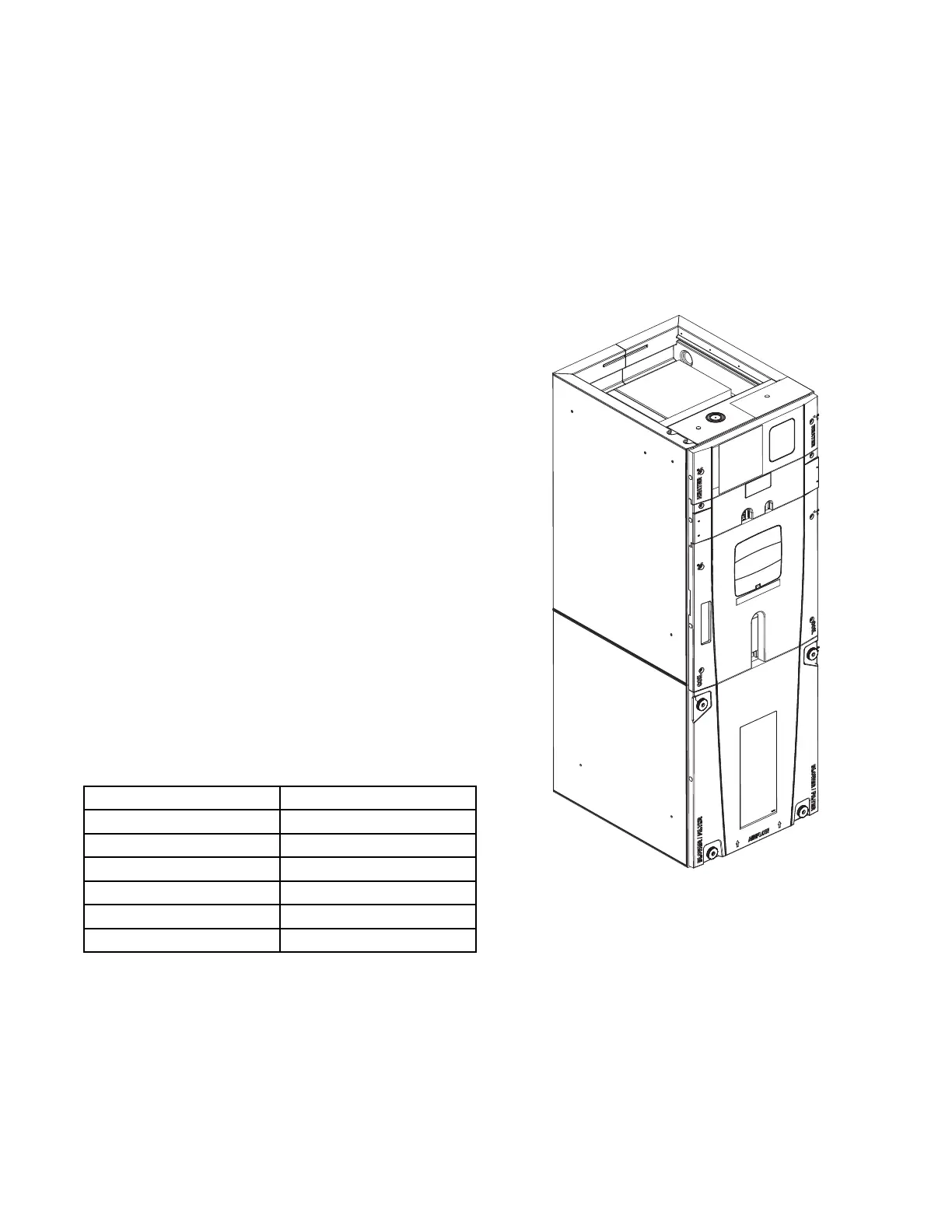

The TAMX air handlers will only use the following
internal electric heaters:
BAYEAAC04BK1 BAYEAAC10LG1
BAYEAAC04LG1 BAYEAAC10LG3
BAYEAAC05BK1 BAYEABC15BK1
BAYEAAC05LG1 BAYEABC15LG3
BAYEAAC08BK1 BAYEABC20BK1
BAYEAAC08LG1 BAYEACC25BK1
BAYEAAC10BK1
NNoottee:: Duct heaters cannot be applied with this air
handler.
NNoottee:: The heater size will be automatically configured
by installing a resistor in the Electric heat
harness located in the electric heat compartment
and will be included with the BAYEA heater.
