Unit Location Considerations

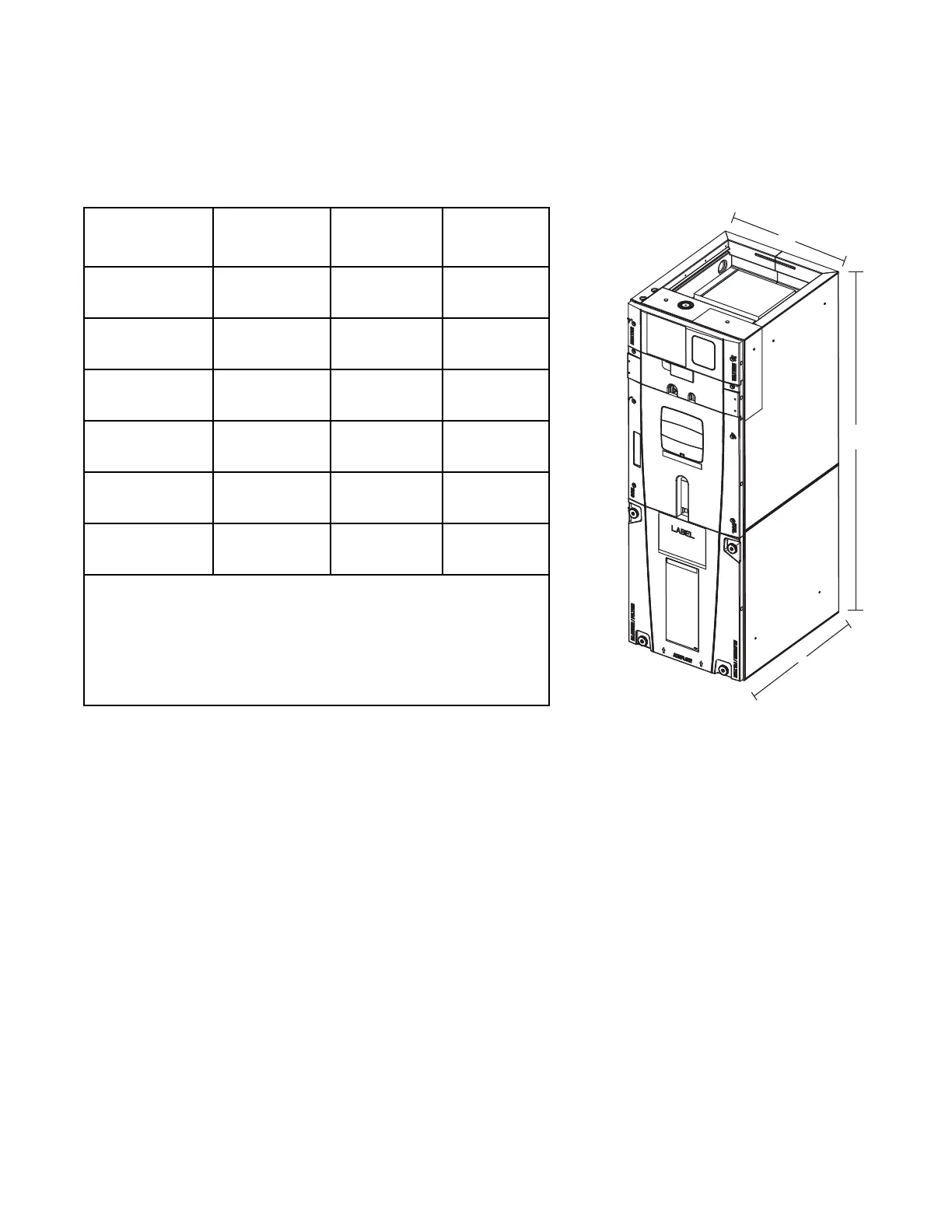

Table 3. Unit Dimensions and Weight
MODEL NUMBER
H x W x D
(inches)
Coil and Heater
Compartment
Height *
(inches)
Unit Net Weight
(pounds)
D
H
W
TAMXB0A24V21DA 49.9 x 17.5 x 21.8 28.1 120
TAMXB0B30V31DA 55.7 x 21.3 x 21.8 33.9 133
TAMXB0C36V31DA 56.9 x 23.5 x 21.8 35.1 143
TAMXB0C42V41DA 56.9 x 23.5 x 21.8 35.1 158
TAMXB0C48V41DA 61.7 x 23.5 x 21.8 39.9 174
TAMXB0C60V51DA 61.7 x 23.5 x 21.8 39.9 178
* Blower compartment height is 21.8 inches.
