6. Reinstall all panels before starting the air handler
Note: After replacing all panels, loosen the Line Set Panel screws
approximately 1/4 — 1/2 turn. This will improve the seal
between the Heater Panel and Line Set Panel.

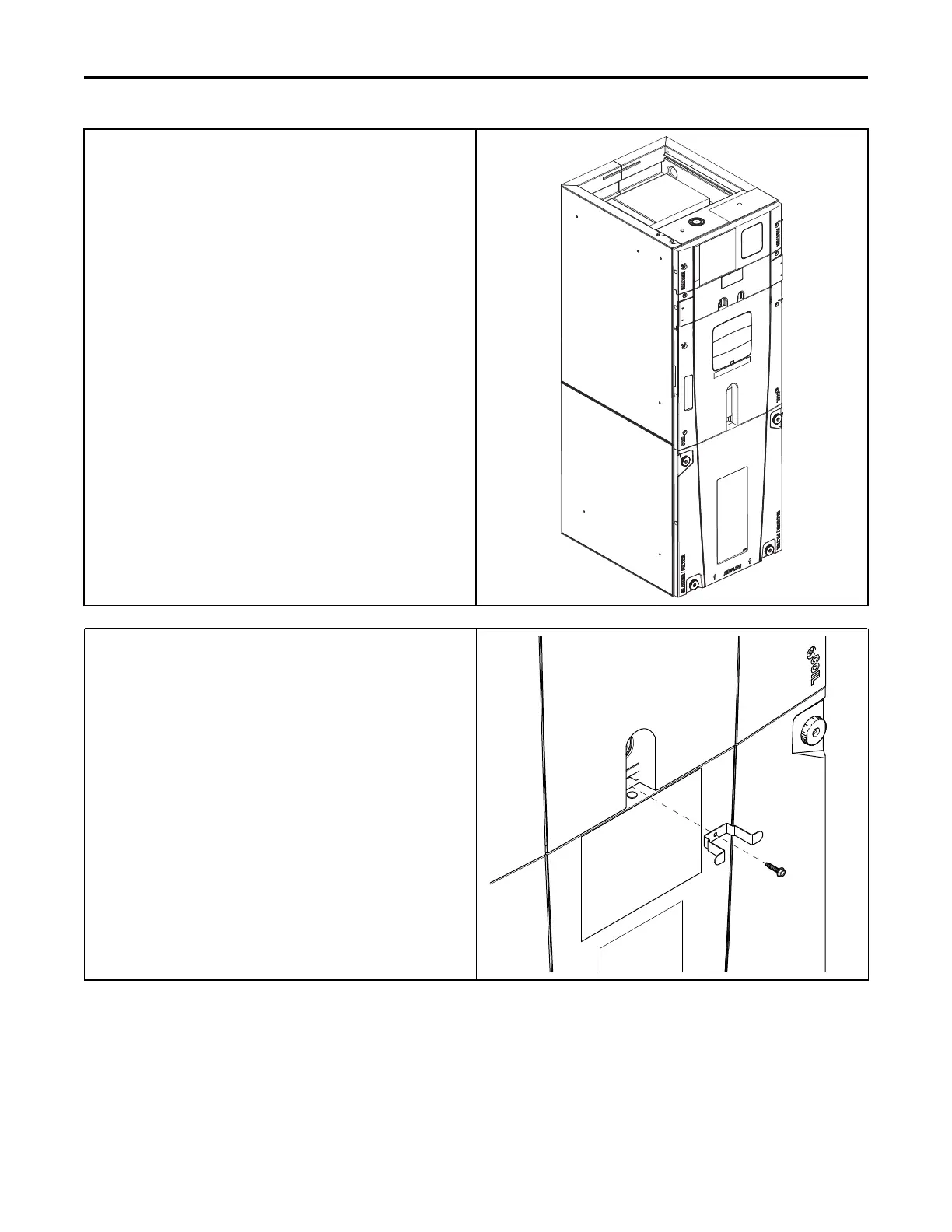

7. Remove screw and coil bracket from documentation packet.
8. Place the coil panel bracket into position and use screw to secure
the coil panel bracket and seal plate to the support bar.
Important: The Coil Seal Plate and screw secure the coil in the center
of the air handler. Failure to follow these steps can
prevent the Coil Panel from being easily replaced on the
unit.
Important: The Blower Panel may be removed if needed to help align
the new screw with the seal plate and crossmember.
