26
CVHE-SVX005B-EN
2. Attach the lifting chains or cables.
3. After the lifting cables are in place, attach a safety
chain or cable between the first-stage casing of the
compressor and the lifting beam.
IImmppoorrttaanntt:: There should NOT be tension on this
safety cable; the cable is used only to
prevent the unit from rolling during the
lift.
4. Position isolator pads or spring isolators beneath
the chiller feet (refer to “Unit Isolation,” p. 27 for
instructions).
NNoottee:: Follow instructions provided by the spring
isolator manufacturer, being careful to not
damage isolator adjustment screw.
5. Once the isolators are in place, lower the chiller—
working from end to end—in small increments to
maintain stability.
6. When lift is complete, detach the rigging shackles
and safety chain.

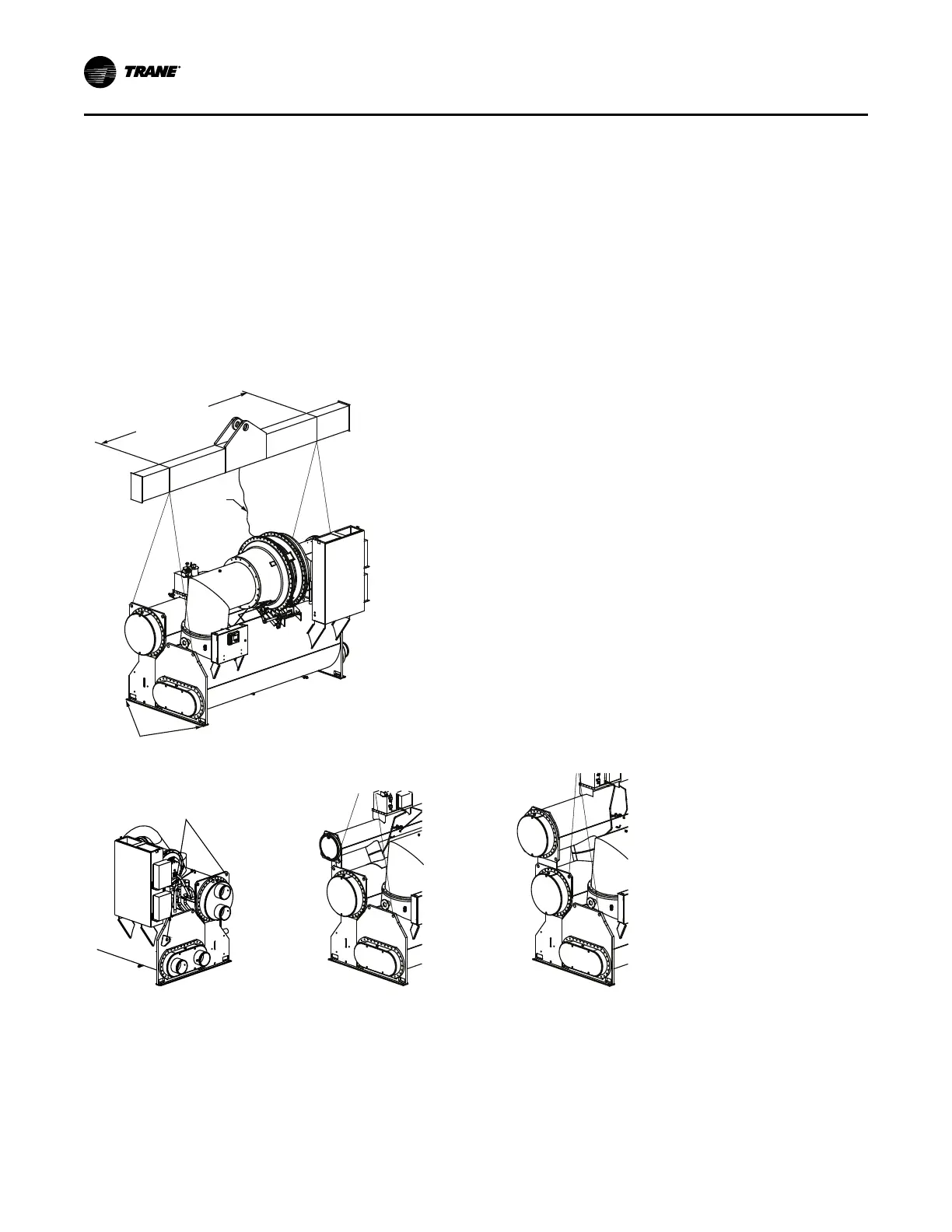

Figure 5. Typical rigging arrangements for CVHE, CVHF, and CVHG CenTraVac chillers
Safety
chain or
cable
Jack slots
16 ft
(4.8768 m)
minimum
effective
length
800 Short shells only-
use rigging flange
Auxiliary option Heat recovery option
IInnssttaallllaattiioonn:: MMeecchhaanniiccaall
