Wi-Fi
For installation instructions, see BAS-SVN042*-EN,
Trane
®
Wi-Fi Module Installation Instructions.
Recommended routing path for supplied Wi-Fi cable is
shown in figure below. Device may be remote mounted
in order to obtain a stronger signal.

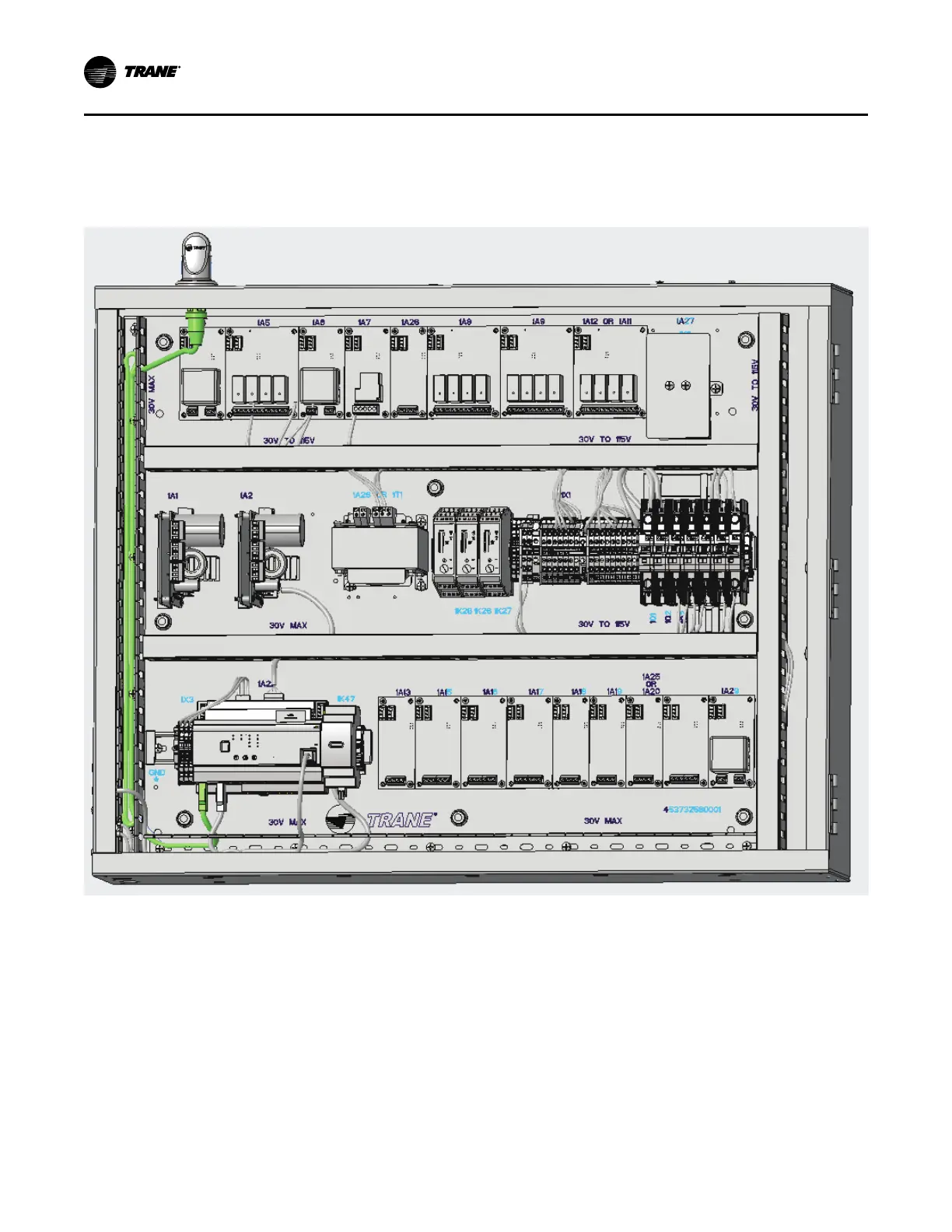

Figure 37. Wi-Fi wire harness routing path
