Trane Technologies CenTraVac CVHE - Waterbox Locations; Grooved Pipe Coupling

CVHE-SVX005B-EN
35
Table 7. Condenser water piping connection sizes
CDSZ
(a)
Nominal Pipe Size
2-Pass
in.
mm
032 6 168.3
050 8 219.1
080 10 273.0
142 12 323.9
210 14 355.6
250 14 355.6
(a)
CDSZ =Condenser Shell Size; S = Short Shell, L = Long Shell, E =
Extended Shell

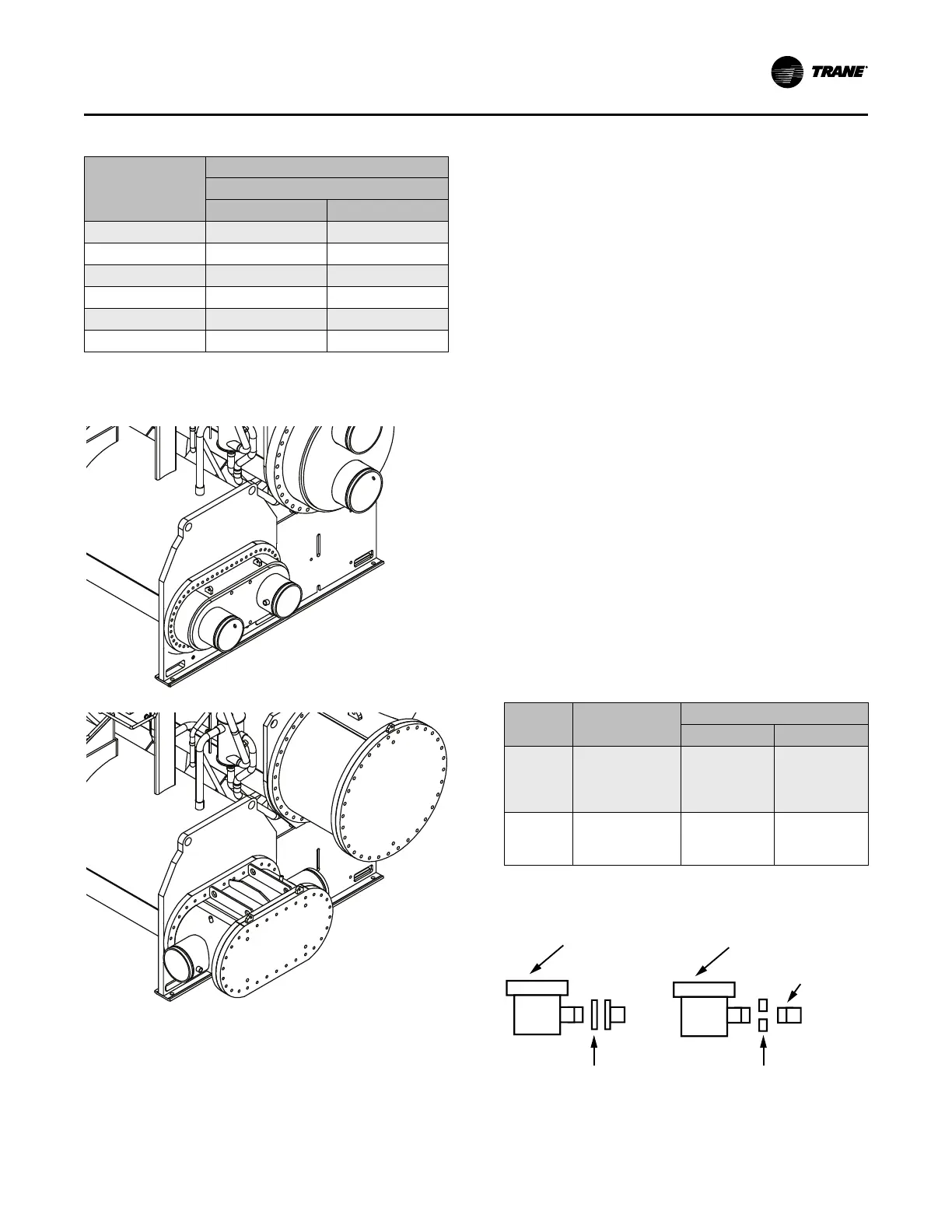

Figure 15. Typical grooved pipe connection
Waterbox Locations
IImmppoorrttaanntt:: Do NOT exchange positions of marine-style
waterboxes. Proper unit operation and
proper water flow could be affected by
repositioning marine-style waterboxes.
Contact CenTraVac
™ Chiller Technical
Service for more information.
If necessary, the non-marine-style waterboxes on each
shell—whether evaporator or condenser—can be
switched end-for-end to obtain the desired piping
arrangement.
If removal of waterboxes is necessary, refer to
“Waterbox Removal and Installation,” p. 95.
If the waterboxes on any of the shells are exchanged
end-for-end, be sure to reinstall them right-side up to
maintain the correct baffle arrangements. Use a new
gasket with each waterbox cover.
Grooved Pipe Coupling
A customer-supplied, standard flexible grooved pipe
coupling (Victaulic® Style 77 or equivalent) should be
used to complete the Victaulic® connection for both
150 psig (1034.2 kPaG) and 300 psig (2068.4 kPaG)
waterboxes.
When a flexible coupling such as this is installed at the
waterbox connections, other flexible piping connectors
(i.e., braided-steel, elastomeric arch, etc.) are not
usually required to attenuate vibration and/or prevent
stress on the connections.
Table 8. Water piping connection components
Unit
Model
Unit Connection
Type
Customer Piping Connection
Victaulic®®
Flanged
CVHE and
CVHG
Flanged
(Condenser 032–
050 150 psig
[1034.2 kPaG]
non-marine only)
Customer
provided
Victaulic®
coupling
No adapter
required
CVHE,
CVHF, and
CVHG
Victaulic® (all
others)
Customer
provided
Victaulic®
coupling
Trane provided
Victaulic®-to-
flange adapter
Figure 16. Customer piping connection types
Flanged Victaulic®
Waterbox
Waterbox
Customer
Flange Adaptor
Trane provided
Style 77 Flexible
Customer provided
IInnssttaallllaattiioonn:: WWaatteerr PPiippiinngg
