Module Installation
Air-Fi
For installation instructions, see BAS-SVN038*-EN, Air-
Fi
®
Wireless Communications Interface (WCI)
Installation Instructions.
Recommended routing path for supplied Air-Fi cable is
shown in figure below. Device may be remote mounted
in order to obtain a stronger signal.

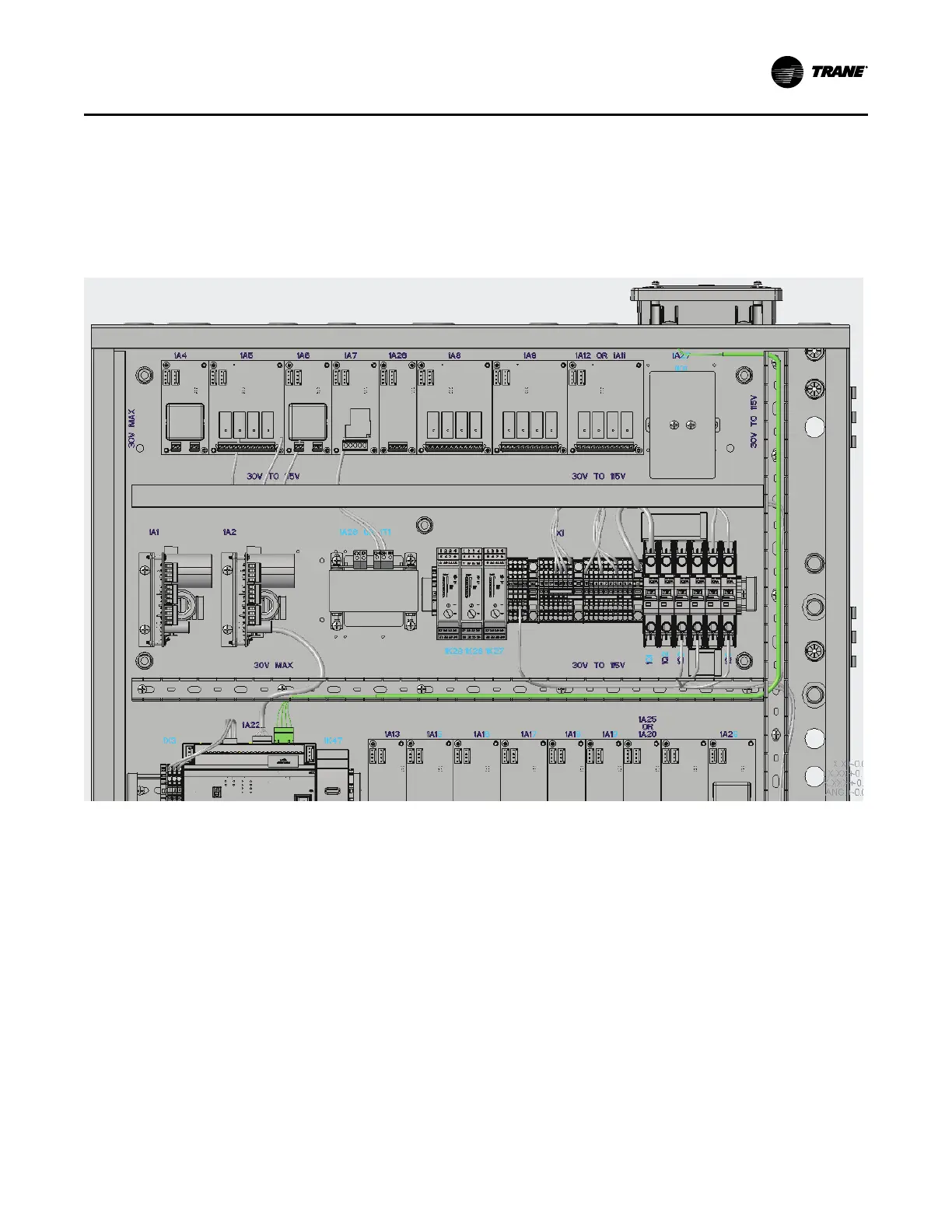

Figure 36. Air-Fi wire harness routing path
