Trane Technologies CenTraVac CVHE - Recommended Area for Unit Insulation

48
CVHE-SVX005B-EN
condensation up to a dew point rating of 74°F (23.3°C),
K = 0.25. Chillers in high humidity areas or ice storage,
low leaving water temperature (less than 36°F [2.2°C]
chilled water temperature/glycol) units, may require
double thickness to prevent formation of condensation.
NNOOTTIICCEE
IInnssuullaattiioonn DDaammaaggee!!
FFaaiilluurree ttoo ffoollllooww tthheessee iinnssttrruuccttiioonnss ccoouulldd rreessuulltt iinn
iinnssuullaattiioonn ddaammaaggee..
TToo pprreevveenntt ddaammaaggee ttoo ffaaccttoorryy iinnssttaalllleedd iinnssuullaattiioonn::
•• DDoo nnoott aallllooww tthhee iinnssuullaattiioonn ttoo bbee eexxppoosseedd ttoo
eexxcceessssiivvee ssuunnlliigghhtt.. SSttoorree iinnddoooorrss oorr ccoovveerr wwiitthh
ccaannvvaass ttoo pprreevveenntt eexxppoossuurree..
•• DDoo nnoott uussee tthhiinnnneerrss aanndd ssoollvveennttss oorr ootthheerr ttyyppeess
ooff ppaaiinntt.. UUssee oonnllyy wwaatteerr bbaassee llaatteexx..

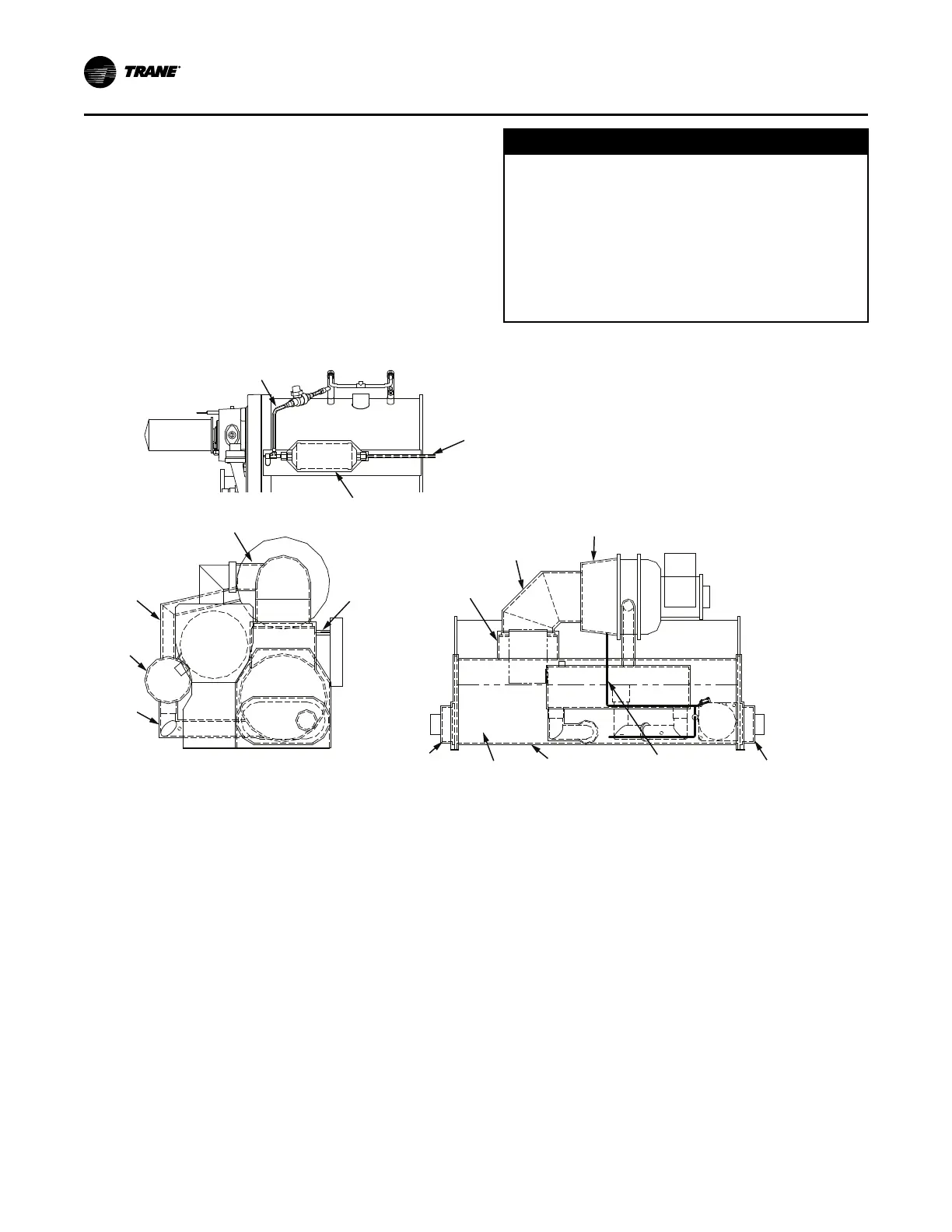

Figure 28. Recommended area for unit insulation
Line from evaporator
Line to eductor
Filter drier and eductor lines
Pipe (free cooling only)
Control
panel
support
Pipe
Economizer
Pipe
Suction
connection
See first two notes
Suction
elbow
Evaporator
Suction
cover
See first note
Eductor line
See first two notes
NNootteess::
• Bulbwells, drain, and vent connections must be accessible after insulating.
• All units with evaporator marine waterboxes: wrap waterbox shell insulation with strapping and secure
strapping with seal.
• Evaporators with ASME nameplates must have insulation cut out around the nameplate. Do NOT glue
insulation to the nameplate.
• Apply 2-in. (50.8-mm) wide black tape on overlap joints. Where possible, apply 3-in. (76.2-mm) wide strip of
0.38-in. (9.7-mm) thick insulation over butt joint seams.
• Insulate all economizer supports.
IInnssuullaattiioonn
