Trane Technologies CenTraVac CVHE - Optional Control Panel Assembly

52
CVHE-SVX005B-EN

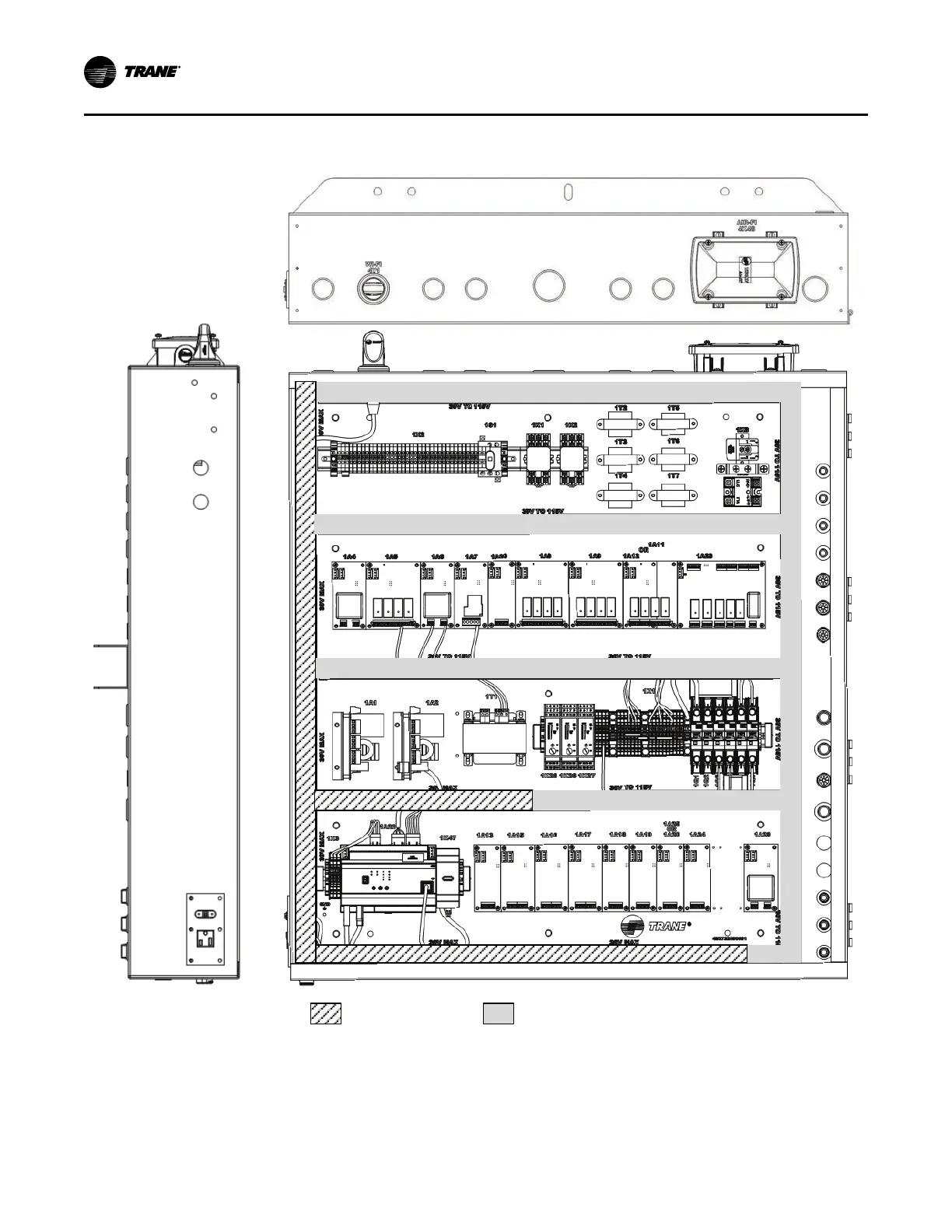

Figure 31. Optional control panel: main unit assembly
(showing low voltage and higher voltage areas for proper routing of field wiring)
30 Volt Maximum 30–115 Volt Maximum
