Field Wiring Procedures
RF-SVN03F-EN 15
7. Remove power from the entire unit to ensure that all
circuits are unpowered.
8. Connect the IMC wires (gray and blue) to the BCI-R
controller and the ground
and the 24 Vdc/Vac wires
(black and red) as shown in Figure 12.
9. Restore power to the unit.

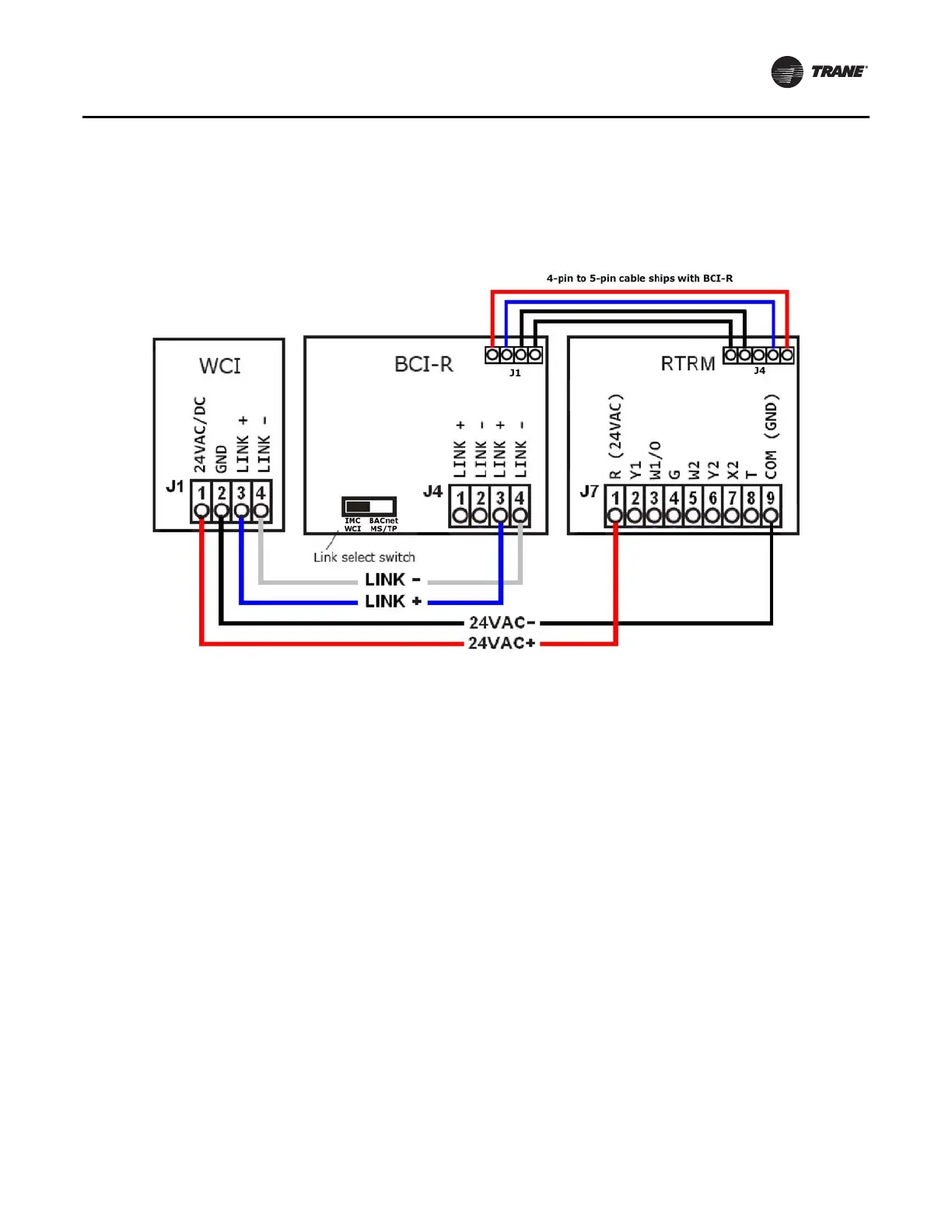

Figure 12. Wiring the Air-Fi Wireless Communication Interface (WCI)
