Configuring the BCI-R
18 RF-SVN03F-EN
• The Tracer SC created a BACnet device ID of 101030.
• The Tracer SC address is “0,1,0”.
• The BCI-R is installed on link 1.

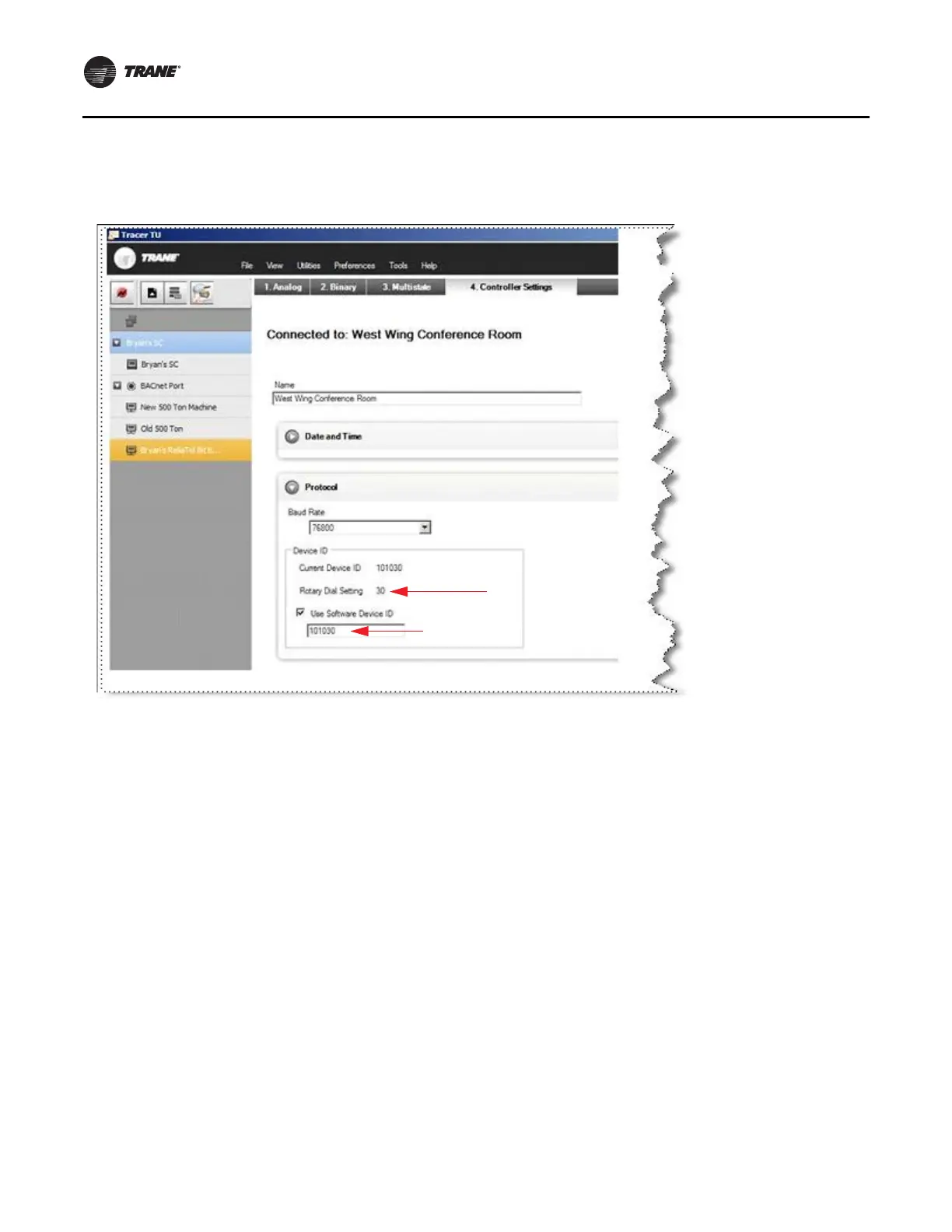

Figure 15. Example showing rotary switch value and BACnet device ID
BACnet device ID
Rotary switch value
